Boom Lift · Genie

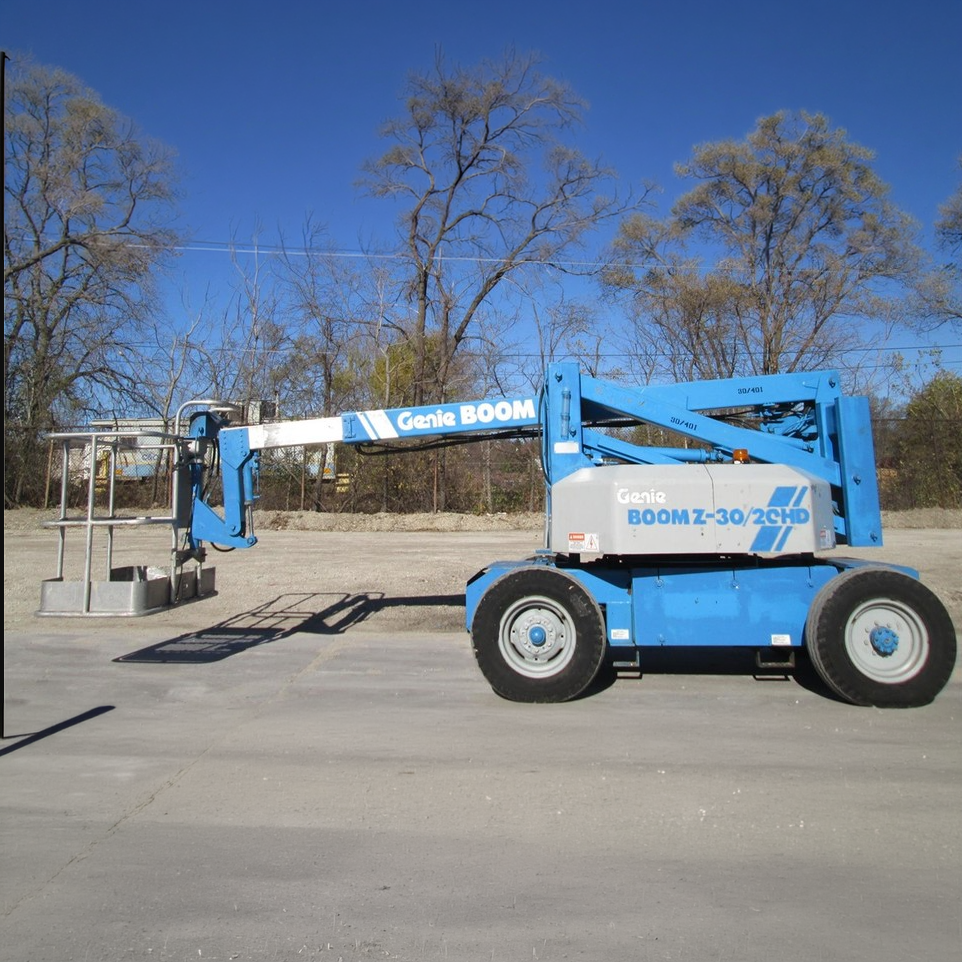

Genie Z-30/20HD Specs
Quick-reference specifications for the Genie Z-30/20HD boom lift, from the manufacturer’s spec sheet and published specifications.
- Max Working Height
- 38 ft11.58 m
- Operating Weight
- 8,500 lb3,855 kg
- Gradeability
- 20%
Performance 10 specs
| Tires | 11 L- 15 |
|---|---|
| Gradeability | 20% |
| Max Working Height | 38 ft (11.58 m) |
| Max Platform Height | 31 ft (9.45 m) |
| Max Horizontal Reach | 20 ft (6.1 m) |
| Platform Rotation | 150° |
| Turntable Rotation | 360° |
| Drive Speed – Stowed | 4.3 mph (6.9 km/h) |
| Turning Radius – Inside | 7 ft (2.13 m) |
| Turning Radius – Outside | 14 ft (4.26 m) |
Dimensions 8 specs
| Length – Stowed | 16 ft 6 in (5.03 m) |
|---|---|
| Width | 5 ft 11 in (1.8 m) |
| Height – Stowed | 6 ft 7 in (2 m) |
| Wheelbase | 6 ft (1.83 m) |
| Ground Clearance | 5.5 in (14 cm) |
| Platform Length | 48 in (121.9 cm) |
| Platform Width | 30 in (76.2 cm) |
| Turntable Tailswing | 14 in (35.6 cm) |
Weight 2 specs
| Machine Weight (Z-30/20HD) | 9,000 lb (4,082 kg) |
|---|---|
| Operating Weight | 8,500 lb (3,855 kg) |
Power / Engine 1 spec
| Power source | 36 V DC |
|---|
Hydraulics / Fluids 3 specs
| Hydraulic Pressure – Function Relief | 2200 psi (152 bar) |
|---|---|
| Maximum Load Capacity | 500 lb (227 kg) |
| Platform Type | 46 inch (117 cm) platform |
