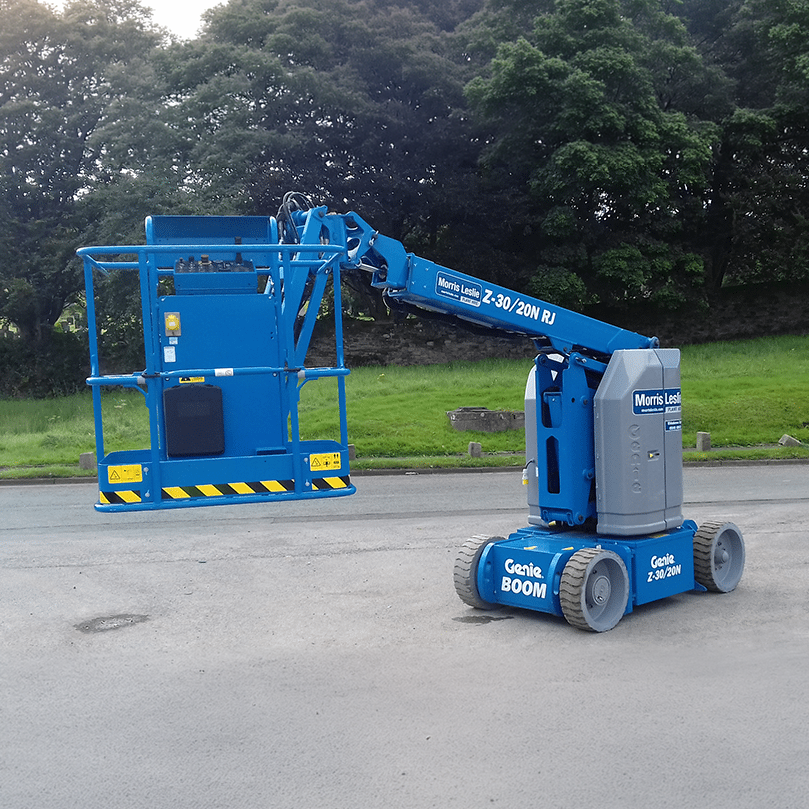

Genie Z-30/20N RJ Specs

Quick-reference specifications for the Genie Z-30/20N RJ boom lift, taken from the manufacturer’s spec sheet.

Download Spec Sheet (PDF)View PDF

Lift capacity max. – unrestricted: 500 lb227 kg
Platform height max.: 29 ft 2 in8.89 m
Working height max.: 35 ft 2 in10.89 m
Gradeability – stowed: 35 %

Performance 15 specs

Working height max.	35 ft 2 in (10.89 m)
Horizontal reach max.	20 ft 6 in (6.25 m)
Lift capacity max. – unrestricted	500 lb (227 kg)
Platform rotation	180°
Vertical jib rotation	139°
Horizontal jib rotation	180°
Turntable rotation	355°
Drive speed – stowed	3.0 mph (4.8 km/h)
Drive speed – raised	0.68 mph (1.1 km/h)
Gradeability – stowed	35 %
Turning radius – inside/outside	5 ft 5 in/ 10 ft 7 in (1.65 m / 3.23 m)
Tires (solid, non-marking)	22 × 7 × 17.75 in (56 × 18 × 45 cm)
Sound Pressure level (ground workstation)	< 70 dBA
Sound Pressure level (platform workstation)	< 70 dBA
Vibrations	8 ft 2 in/s² (2.5 m/s²)

Dimensions 13 specs

Platform height max.	29 ft 2 in (8.89 m)
Up and over clearance max.	12 ft 8 in (3.86 m)
Platform length	2 ft 6 in (0.76 m)
Platform width	3 ft 10 in (1.17 m)
Height – stowed (tires)	6 ft 6.5 in (2 m)
Length – stowed (tires)	17 ft 5 in (5.31 m)
Storage height	7 ft 4 in (2.24 m)
Storage length	12 ft (3.66 m)
Width	3 ft 11 in (1.19 m)
Wheelbase	5 ft 2 in (1.58 m)
Ground clearance – center	3.5 in (0.09 m)
Jib length	4 ft (1.22 m)
Turntable tailswing	0 in (0 cm)

Weight 3 specs

Weight (tires)	14,233 lb (6,455 kg)
Tire contact pressure	103 psi (710 kPa)
Occupied floor pressure (tires)	537 psf (25.71 kPa)

Power / Engine 1 spec

Auxiliary power unit	24 V DC

Hydraulics / Fluids 1 spec

Hydraulic tank capacity	4 gal (15.1 L)
