Boom Lift · Genie

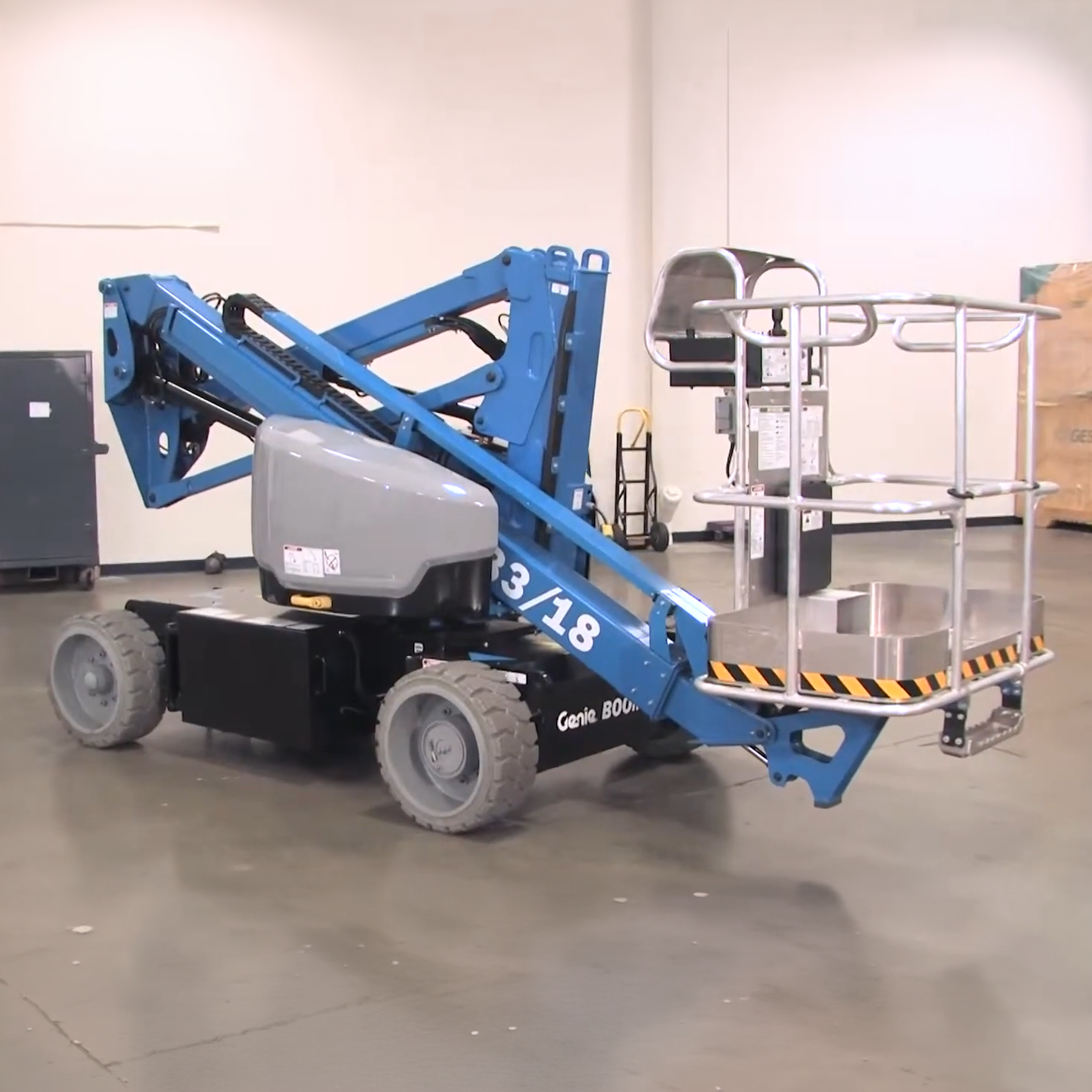

Genie Z-33/18 Specs
Quick-reference specifications for the Genie Z-33/18 boom lift, taken from the manufacturer’s spec sheet.
- Lift capacity max. – unrestricted
- 440 lb200 kg
- Platform height max.
- 32 ft 10 in10 m
- Working height max.
- 38 ft 10 in12 m
- Gradeability – stowed
- 30 %
Performance 11 specs
| Working height max. | 38 ft 10 in (12 m) |
|---|---|
| Horizontal reach max. | 18 ft 3 in (5.57 m) |
| Lift capacity max. – unrestricted | 440 lb (200 kg) |
| Turntable rotation | 400° |
| Drive speed – stowed | 3.2 mph (5.2 km/h) |
| Gradeability – stowed | 30 % |
| Turning radius – inside/outside | 6 ft 3 in (1.9 m) |
| Tires (solid, non-marking) | 22 × 9 × 17 in (56 × 23 × 43 cm) |
| Sound Pressure level (ground workstation) | < 70 dBA |
| Sound Pressure level (platform workstation) | < 70 dBA |
| Vibrations | 8 ft 2 in/s² (2.5 m/s²) |
Dimensions 10 specs
| Platform height max. | 32 ft 10 in (10 m) |
|---|---|
| Up and over clearance max. | 14 ft 1 in (4.28 m) |
| Platform length | 2 ft 6 in (0.76 m) |
| Platform width | 3 ft 10 in (1.17 m) |
| Height – stowed (tires) | 6 ft 6 in (1.98 m) |
| Length – stowed (tires) | 13 ft 8 in (4.17 m) |
| Width | 4 ft 11 in (1.50 m) |
| Wheelbase | 6 ft 3 in (1.90 m) |
| Ground clearance – center | 6.0 in (0.15 m) |
| Turntable tailswing | 0 in (0 cm) |
Weight 3 specs
| Weight (tires) | 8,094 lb (3,671 kg) |
|---|---|
| Tire contact pressure | 70 psi (483 kPa) |
| Occupied floor pressure (tires) | 203 psf (9.72 kPa) |
Power / Engine 1 spec
| Auxiliary power unit | 24 V DC |
|---|
Hydraulics / Fluids 1 spec
| Hydraulic tank capacity | 6 gal (20.8 L) |
|---|
