Boom Lift · Genie

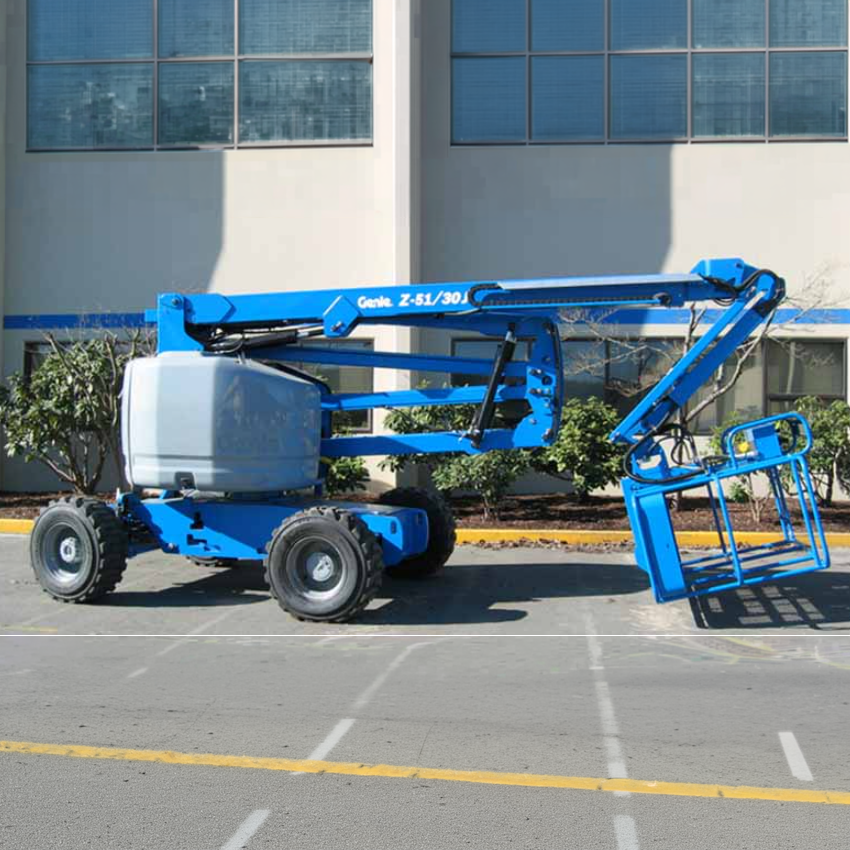

Genie Z-51/30J Specs
Quick-reference specifications for the Genie Z-51/30J boom lift, taken from the manufacturer’s spec sheet.
- Lift capacity max. – unrestricted
- 500 lb227 kg
- Platform height max.
- 51 ft 2 in15.59 m
- Working height max.
- 57 ft 8 in17.59 m
- Weight
- 16,300 lb7,394 kg
Performance 13 specs
| Working height max. | 57 ft 8 in (17.59 m) |
|---|---|
| Horizontal reach max. | 30 ft 9 in (9.37 m) |
| Lift capacity max. – unrestricted | 500 lb (227 kg) |
| Platform rotation | 160° |
| Vertical jib rotation | 135° |
| Turntable rotation | 355° |
| Drive speed – stowed | 5 mph (8 km/h) |
| Drive speed – raised | 0.61 mph (0.98 km/h) |
| Gradeability – stowed | 45 % |
| Turning radius – inside/outside | 5 ft 6 in / 14 ft 9 in (1.68 m / 4.50 m) |
| Sound Pressure level (ground workstation) | 86 dBA |
| Sound Pressure level (platform workstation) | 79 dBA |
| Vibrations | 8 ft 2 in/s² (2.5 m/s²) |
Dimensions 11 specs
| Platform height max. | 51 ft 2 in (15.59 m) |
|---|---|
| Up and over clearance max. | 24 ft 3 in (7.39 m) |
| Platform length | 2 ft 6 in (0.76 m) |
| Platform width | 6 ft (1.83 m) |
| Height – stowed | 7 ft (2.13 m) |
| Length – stowed | 24 ft 11 in (7.58 m) |
| Width | 7 ft 6 in (2.29 m) |
| Wheelbase | 6 ft 8 in (2.03 m) |
| Ground clearance – center | 1 ft 3 in (0.37 m) |
| Jib length | 5 ft (1.52 m) |
| Turntable tailswing | 0 in (0 cm) |
Weight 3 specs
| Weight | 16,300 lb (7,394 kg) |
|---|---|
| Tire contact pressure | 80 psi (552 kPa) |
| Occupied floor pressure (tires) | 230 psf (11.01 kPa) |
Hydraulics / Fluids 2 specs
| Hydraulic tank capacity | 24 gal (90.9 L) |
|---|---|
| Fuel tank capacity | 17 gal (64 L) |
