Boom Lift · Genie

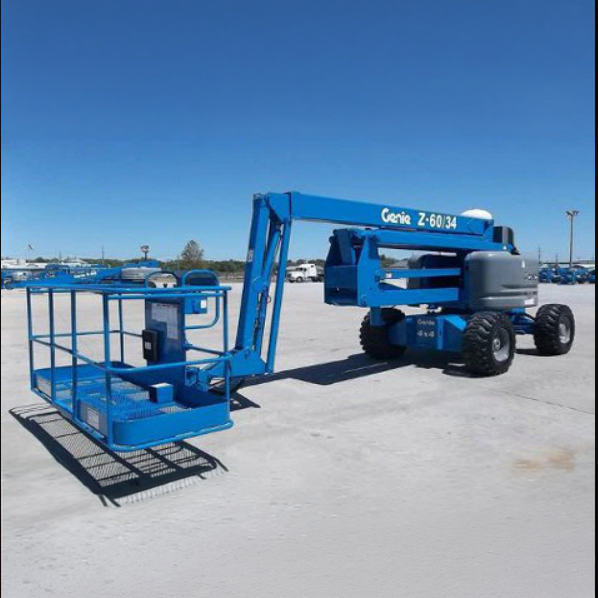

Genie Z-60/34 Specs
Quick-reference specifications for the Genie Z-60/34 boom lift, taken from the manufacturer’s spec sheet.
- Lift capacity
- 500 lb227 kg
- Platform height maximum
- 60 ft 4 in18.39 m
- Working height maximum
- 66 ft 4 in20.39 m
- Gradeability – 2WD – stowed
- 25%
Performance 11 specs
| Working height maximum | 66 ft 4 in (20.39 m) |
|---|---|
| Horizontal reach maximum | 36 ft 3 in (11.05 m) |
| Lift capacity | 500 lb (227 kg) |
| Platform rotation | 180° |
| Vertical jib rotation | 90° |
| Turntable rotation | 360° continuous |
| Drive speed – raised | 0.68 mph (1.1 km/h) |
| Gradeability – 2WD – stowed | 25% |
| Gradeability – 4WD – stowed | 40% |
| Turning radius – inside | 10 ft (3.04 m) |
| Turning radius – outside | 19 ft 11 in (6.07 m) |
Dimensions 7 specs
| Platform height maximum | 60 ft 4 in (18.39 m) |
|---|---|
| Up and over clearance maximum | 27 ft (8.23 m) |
| Height – stowed | 8 ft 10 in (2.69 m) |
| Length – stowed | 26 ft 9 in (8.15 m) |
| Width | 8 ft 1 in (2.46 m) |
| Wheelbase | 8 ft 3 in (2.51 m) |
| Ground clearance – center | 1 ft 4 in (.41 m) |
Power / Engine 1 spec
| Auxiliary power unit | 12 V DC |
|---|
Hydraulics / Fluids 2 specs
| Hydraulic tank capacity | 45 gal (170.3 L) |
|---|---|
| Fuel tank capacity | 20 gal (75.7 L) |
