Boom Lift · Genie

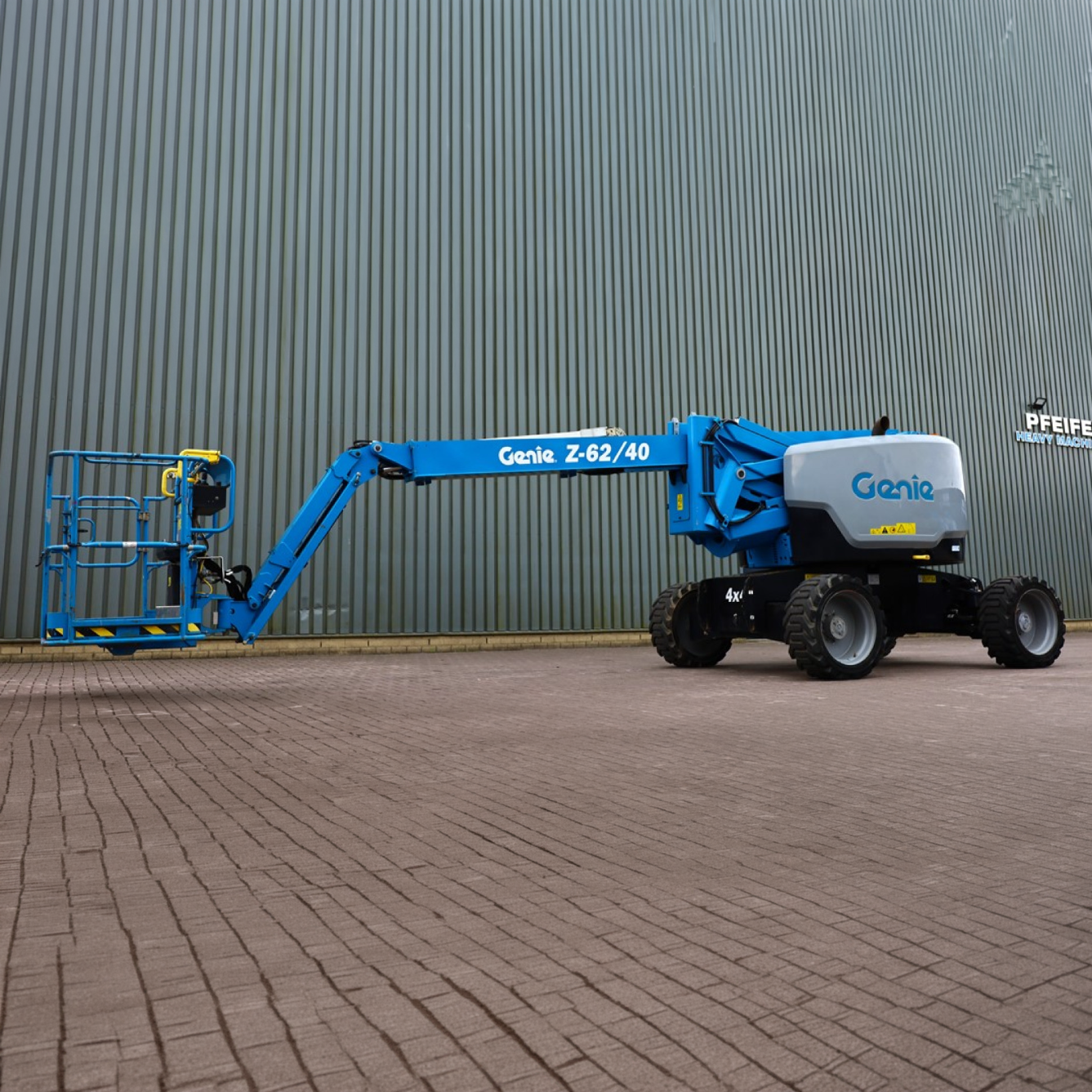

Genie Z-62/40 Specs
Quick-reference specifications for the Genie Z-62/40 boom lift, taken from the manufacturer’s spec sheet.
- Lift capacity max. – unrestricted
- 500 lb227 kg
- Platform height max.
- 61 ft 11 in18.87 m
- Working height max.
- 67 ft 11 in20.87 m
- Gradeability – stowed
- 30 %
Performance 14 specs
| Working height max. | 67 ft 11 in (20.87 m) |
|---|---|
| Horizontal reach max. | 40 ft 9 in (12.42 m) |
| Lift capacity max. – unrestricted | 500 lb (227 kg) |
| Platform rotation | 180° |
| Vertical jib rotation | 135° |
| Turntable rotation | 360° |
| Drive speed – stowed (tires) | 3.0 mph (4.8 km/h) |
| Drive speed – raised (tires) | 0.68 mph (1.1 km/h) |
| Gradeability – stowed | 30 % |
| Turning radius – inside/outside (tires, 4WD) | 9 ft 2 in / 18 ft 9 in (2.80 m / 5.71 m) |
| Sound Pressure level (ground workstation) | 84 dBA |
| Sound Pressure level (platform workstation) | 75 dBA |
| Vibrations | 8 ft 2 in/s² (2.5 m/s²) |
| Platform auxiliary top rail | 3 kW AC Generator, 110 V/60Hz |
Dimensions 14 specs
| Platform height max. | 61 ft 11 in (18.87 m) |
|---|---|
| Up and over clearance max. | 25 ft 7 in (7.8 m) |
| Platform length | 3 ft/2 ft 6 in (0.91 m / 0.76 m) |
| Platform width | 8 ft/6 ft (2.44 m / 1.83 m) |
| Height – stowed (tires) | 8 ft 4 in (2.54 m) |
| Height – stowed (TraX) | 8 ft 6 in (2.59 m) |
| Height – storage/transport (jib tucked under) (tires) | 9 ft 6 in (2.90 m) |
| Height strorage/transport height (jib tucked under) (TraX) | 9 ft 8 in (2.95 m) |
| Length – stowed (tires) | 30 ft 3 in (9.25 m) |
| Width | 8 ft 2 in (2.49 m) |
| Wheelbase | 8 ft 2 in (2.49 m) |
| Ground clearance – center (tires) | 1 ft 3 in (0.41 m) |
| Ground clearance – center (TraX) | 1 ft 5 in (0.43 m) |
| Jib length | 5 ft (1.52 m) |
Weight 4 specs
| Weight, 2 WS | 22,185 lb (10,063 kg) |
|---|---|
| Weight, 4 WS | 22,690 lb (10,292 kg) |
| Tire contact pressure | 11 psi (75.8 kPa) |
| Occupied floor pressure (tires) | 247 psf (11.83 kPa) |
Hydraulics / Fluids 2 specs
| Hydraulic tank capacity | 35 gal (132 L) |
|---|---|
| Fuel tank capacity | 35 gal (132 L) |
