Boom Lift · Genie

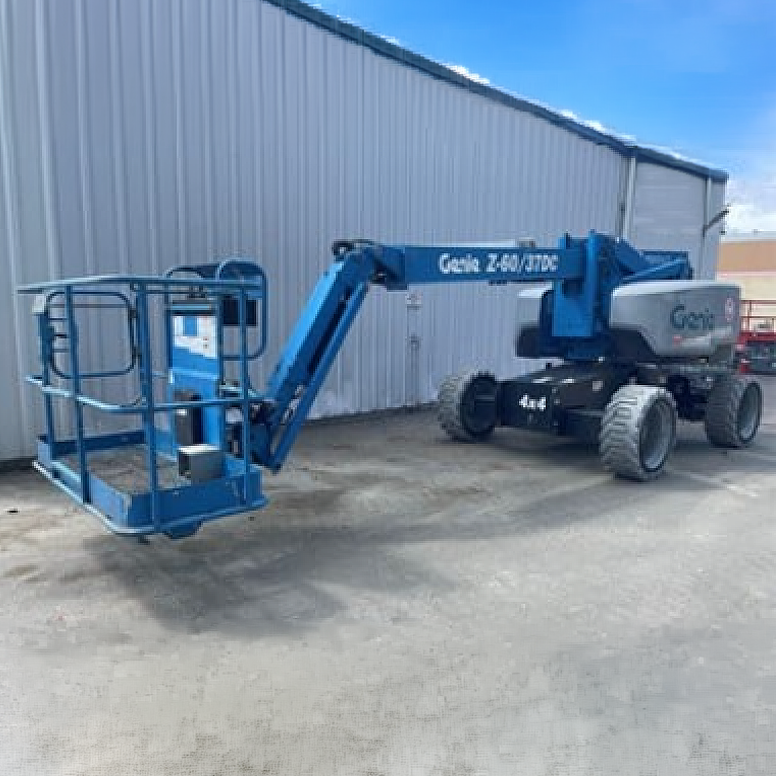

Genie Z-60/37 DC/FE Hybrid Specs
Quick-reference specifications for the Genie Z-60/37 DC/FE Hybrid boom lift, from the manufacturer’s spec sheet and published specifications.
- Platform Capacity
- 500 lb227 kg
- Platform Height Maximum
- 59 ft 7 in18.16 m
- Max Working Height
- 65 ft 7 in20.16 m
- Operating Weight DC Model
- 16,600 lb7,530 kg
Performance 13 specs
| Max Working Height | 65 ft 7 in (20.16 m) |
|---|---|
| Max Horizontal Reach | 36 ft 7 in (11.15 m) |
| Max Up and Over Clearance | 24 ft 3 in (7.39 m) |
| Below Ground Reach | 8 ft 1 in (2.46 m) |
| Platform Capacity | 500 lb (227 kg) |
| Platform Rotation | 160° |
| Jib Length | 5 ft (1.52 m) |
| Jib Vertical Rotation | 135° |
| Turntable Rotation | 355° non-continuous |
| Travel Speed Stowed | 6.44 km/h |
| Travel Speed Elevated | 1.1 km/h |
| Gradeability | 45% |
| Platform Height Maximum | 59 ft 7 in (18.16 m) |
Dimensions 6 specs
| Overall Length Stowed | 26 ft 9 in (8.15 m) |
|---|---|
| Overall Width | 8 ft 2 in (2.49 m) |
| Overall Height Stowed | 8 ft 4 in (2.54 m) |
| Wheelbase | 8 ft 2 in (2.49 m) |
| Ground Clearance Center | 13 in (0.33 m) |
| Platform Dimensions | 8 ft (2.44 m) × 3 ft (0.91 m) |
Weight 2 specs
| Operating Weight DC Model | 16,600 lb (7,530 kg) |
|---|---|
| Operating Weight FE Model | 17,100 lb (7,756 kg) |
Power / Engine 3 specs
| Engine Type FE | Kubota D1105 |
|---|---|
| Engine Power FE | 24.8 HP (18.5 kW) |
| Drive System | 4WD with 34 V 3-phase AC motors |
Hydraulics / Fluids 2 specs
| Fuel Tank Capacity FE | 64 L |
|---|---|
| Hydraulic Tank Capacity | 68.1 L |
