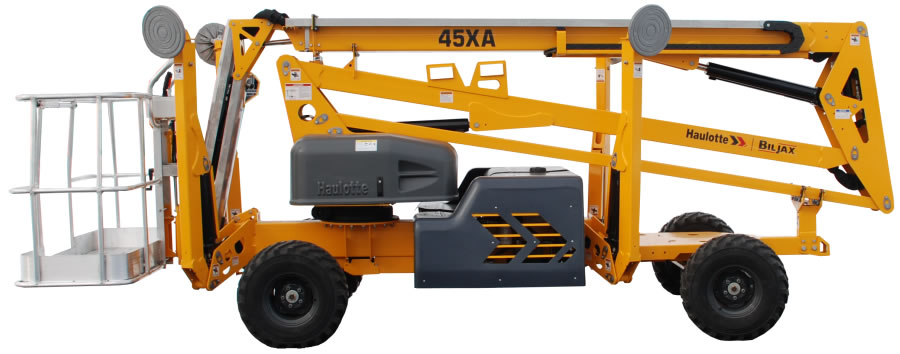

Haulotte 45XA Specs

Quick-reference specifications for the Haulotte 45XA aerial lift, taken from the manufacturer’s spec sheet.

Download Spec Sheet (PDF)View PDF

Lift capacity: 500 lb
Platform height: 45 ft
Working height: 51 ft
Weight: 4,900 lb

Performance 7 specs

Working height	51 ft
Horizontal outreach (from centerline)	27 ft
Horizontal outreach (from edge of footpad)	21 ft
Lift capacity	500 lb
Drive speed	3.5 mph (max)
Gradeability	45%
Turntable rotation	700° non-continuous

Dimensions 11 specs

Platform height	45 ft
Up and over height	20 ft 9 in
A – Length – stowed	18 ft 2 in
B – Width stowed	5 ft 6 in
C – Height stowed	6 ft 7 in
D – Wheelbase	8 ft 9 in
E – Ground clearance	6 in
F x G – Platform size	5 ft x 2 ft 6 in
H x I – Outrigger footprint	12 ft 4 in x 11 ft 4 in
Jib – length	4 ft 3 in
Jib – Vertical motion	150° (+70 / -80)

Weight 1 spec

Weight	4,900 lb

Power / Engine 1 spec

Engine	22 hp gas Kawasaki
