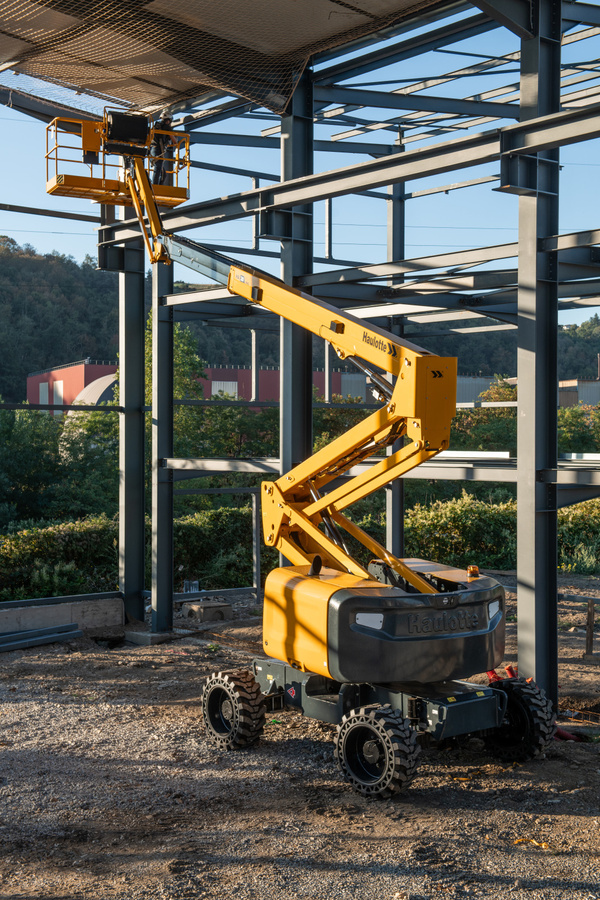

Haulotte HA 130 JRT Spec Sheet
Quick-reference specifications for the Haulotte HA 130 JRT. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Platform capacity 507 lb /: 992 lb
Working Height 140ft: 6in
Platform Height 134ft: 6in
Maximum outreach 65ft: 7in
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| jib pivot at 58ft 3in. Gradeability up to | 40%. |
|---|---|
| simultaneous boom functions for improved functionability | 140° vertical jib |
| displacement. Max 65ft | 7 in horizontal outreach. |
| Gradeability up to 40% Hydraulic differential lock and | 15 in |
| Working Height 140ft | 6in |
| Platform Height 134ft | 6in |
| Maximum outreach 65ft | 7in |
| Platform capacity 507 lb / | 992 lb |
| Fly jib vertical arc of movement | 140° (+70° / -70°) |
| Fly jib horizontal arc of movement | 120° (+60° / -60°) |
| Jib length 11ft | 2in |
| Tailswing 3ft | 7in |
| Outside turning radius 16ft | 9in |
| Gradeability | 40% |
| smooth operation. The dual capacity platform (up to | 992 lbs) |
Dimensions
| A -Stowed length 47ft | 7in |
|---|---|
| B – Width 8ft | 4in |
| C – Stowed height 10ft | 0in |
| D – Wheelbase 11ft | 6in |
| E – Ground clearance | 15 in |
| F x G – Platform size 96 x | 31 in |
| H – Transport length 47ft | 7in |
| I – Width (with axles extended) 10ft | 10in |
| Travel / Transport height 3, Ft | 1 in |
Weights & Electrical
| Swing out engine tray for ease of maintenance | 12 V battery / electrical control system |
|---|---|
| Weight 45 | 423 lb |
| and rapid reach of work areas. | 3 simultaneous and proportional |
Powertrain & Systems
| www.haulotte-usa.com | 4 wheel drive and steer |
|---|---|
| HAULOTTE US Inc. | 7135 Standard Drive |
| Drive speed 0,9 / | 3,1 mph |
| Engine Perkins diesel 62 kW – | 84 hp |
| maneuverability | 2 front-wheel steering |
Hydraulics & Capacities
| Hydraulic differential lock and | 15 in |
|---|---|
| Load limiter in platform | 180° hydraulic platform rotation |
| Hydraulic platform rotation | 180° |
| Hydraulic tank | 63 gal |
| Fuel tank | 37 gal |
