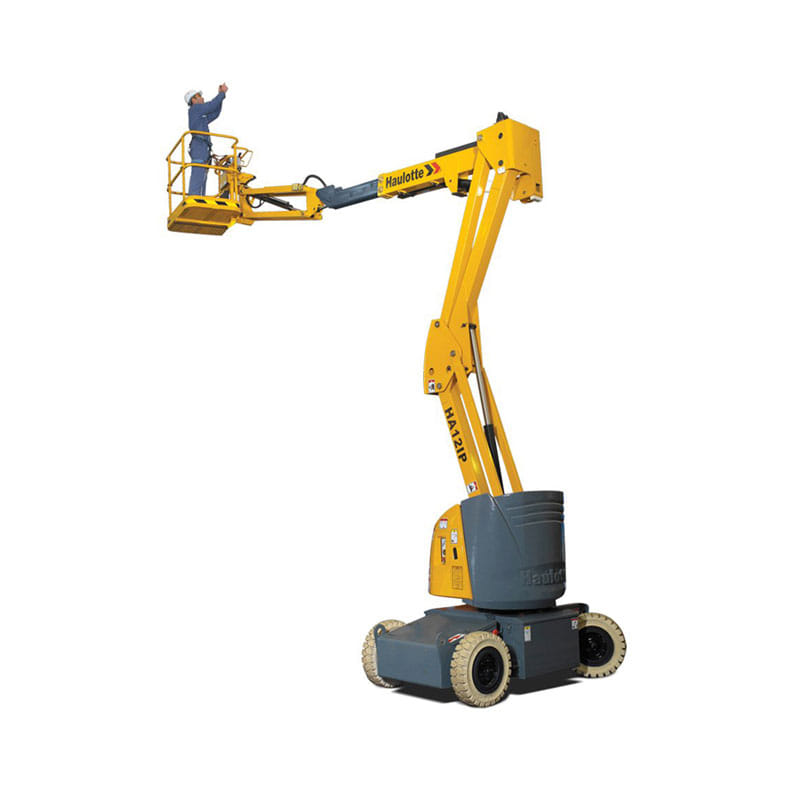

Haulotte HA12 IP Spec Sheet
Quick-reference specifications for the Haulotte HA12 IP. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Working height: 12 m
Platform height: 10 m
Horizontal outreach: 6.6 m
Lift capacity: 230 kg
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| through a standard doorway | 140° (+70°/-70°) fly jib range |
|---|---|
| of motion | 6.6 m outreach |
| Working height | 12 m |
| Platform height | 10 m |
| Horizontal outreach | 6.6 m |
| Lift capacity | 230 kg |
| Gradeability | 25 % |
| Vertical jib rotation | 1.35 m |
| Turning radius – outside | 355 ° |
Dimensions
| and comfort | 2m stowed height can pass |
|---|---|
| Length | 5.45 m |
| Height – stowed | 2 m |
| Ground clearance | 15 cm |
| Wheelbase | 2 m |
| Height – transport | 2.5 m |
Weights & Electrical
| tightest spaces Compact size with | 1.35 m |
|---|---|
| ELECTRIC ARTICULATING BOOMS | 2420603780 – We reserve the right to modify the tecnical characteristics of this document without notice – 03/2012 |
| Weight | 5900 kg |
Powertrain & Systems
| Proportional drive speed 0.9 – | 4.5 km/h |
|---|
Hydraulics & Capacities
| Hydraulic system capacity | 30 l |
|---|
