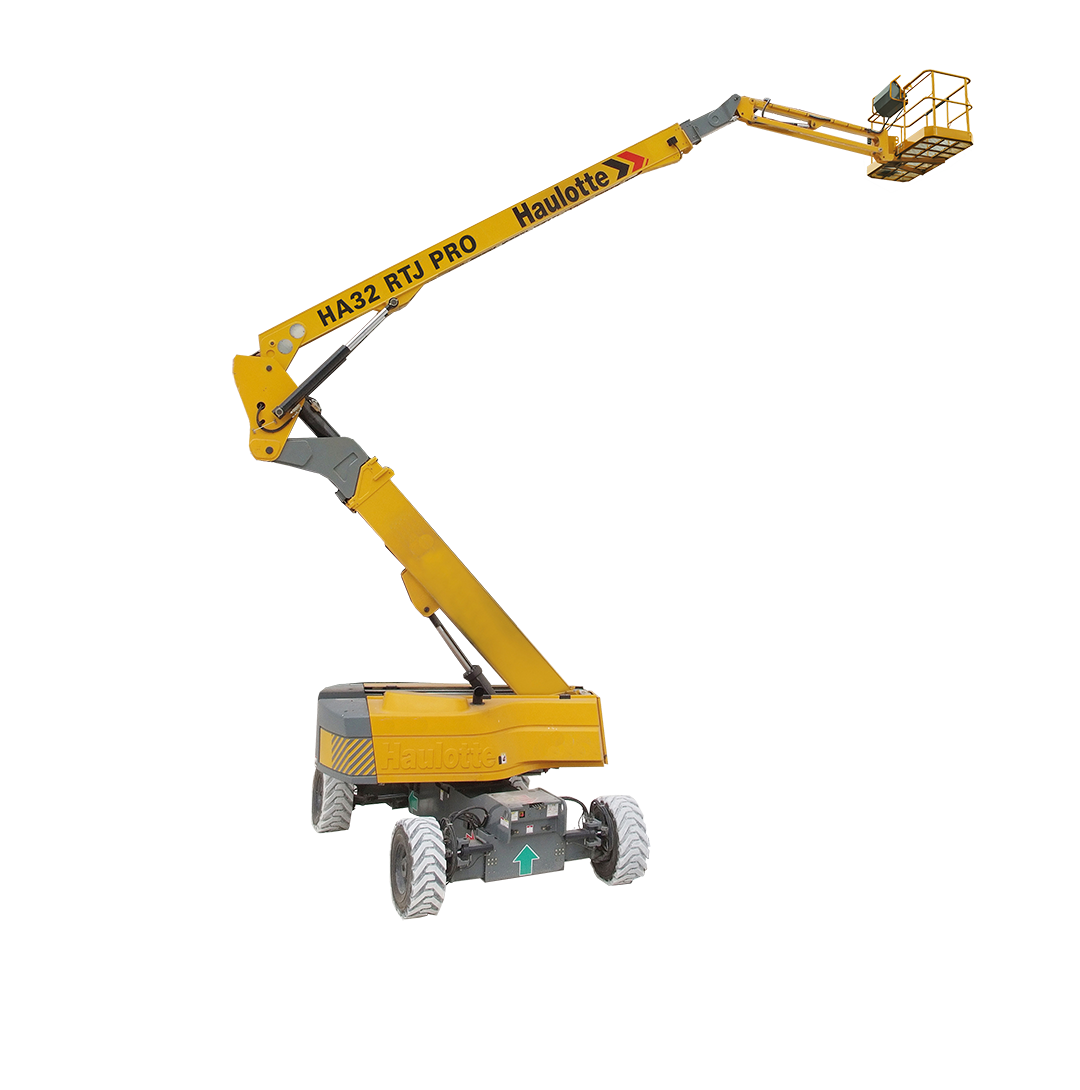

Haulotte HA32 RTJ PRO Spec Sheet
Quick-reference specifications for the Haulotte HA32 RTJ PRO. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Working height: 31.8 m
Platform height: 29.8 m
Horizontal outreach: 21.6 m
Lift capacity: 250 kg
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| envelope with a max. | 21.60m horizontal outreach |
|---|---|
| Working height | 31.8 m |
| Platform height | 29.8 m |
| Horizontal outreach | 21.6 m |
| Lift capacity | 250 kg |
| Vertical jib rotation | 140° (+70/-70) |
| Gradeability | 45 % |
| Turning radius – outside axle extended | 5.74 m |
Dimensions
| Excellent time to full height | 95 sec. thanks to |
|---|---|
| Length – stowed | 11.7 m |
| Width | 2.53 m |
| Height – stowed | 2.8 m |
| Ground clearance 0,5 – | 5 km/h |
| Platform size 2.44 x | 0.91 m |
Weights & Electrical
| ROUGH TERRAIN ARTICULATING BOOMS | 2420604390 – We reserve the right to modify the tecnical characteristics of this document without notice – 01/2016 |
|---|---|
| Power source TIER 3 | Perkins 55.5 kW – 75.4 hp |
| Weight 20 | 100 kg |
| Below ground reach | 5.5 m |
Powertrain & Systems
| Tires – foam-filled | 445/65-22.5 |
|---|
