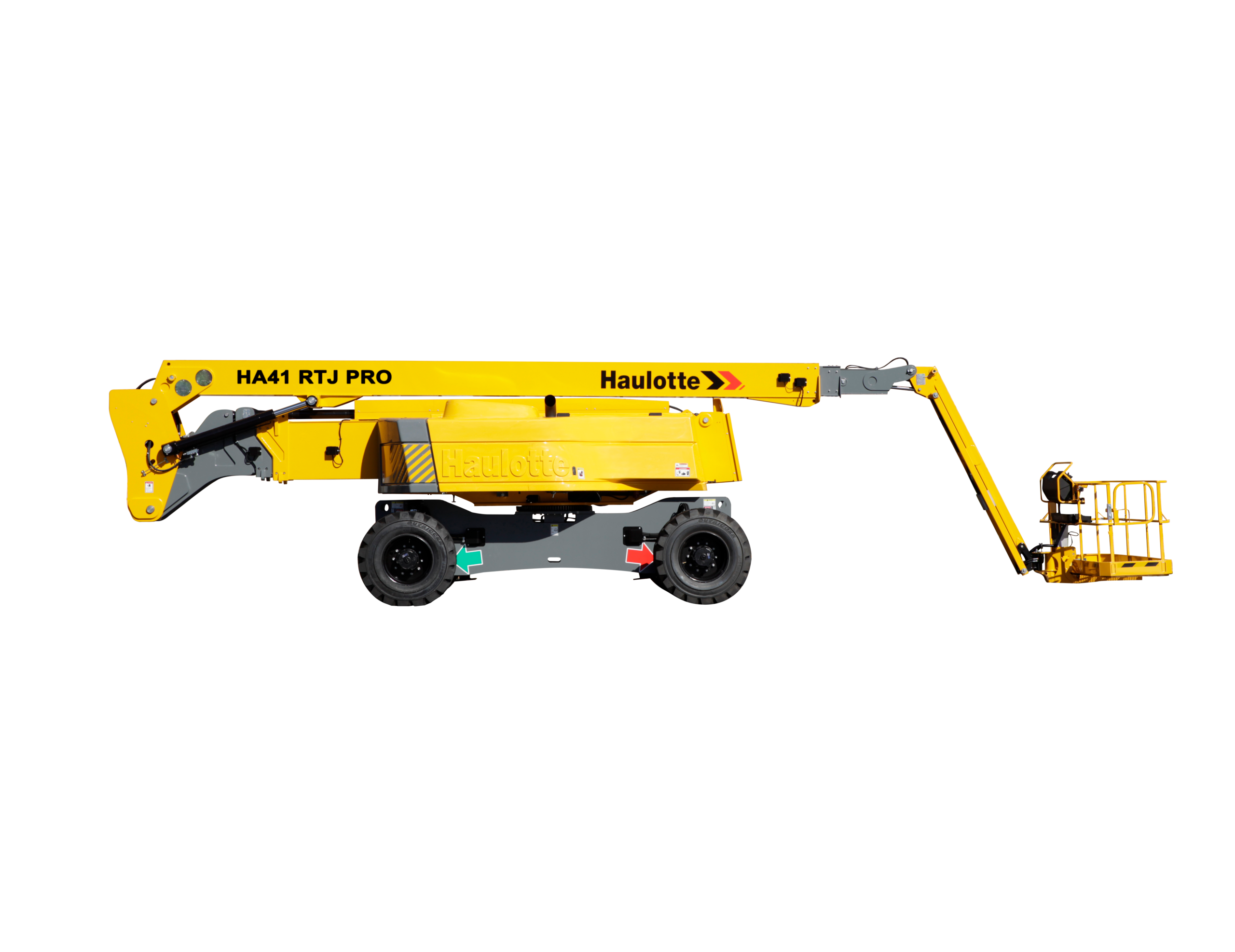

Haulotte HA41 RTJ PRO Spec Sheet
Quick-reference specifications for the Haulotte HA41 RTJ PRO. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Working height: 41.5 m
Platform height: 39.50 m
Horizontal outreach: 20.1 m
Lift capacity: 230 kg
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Working height | 41.5 m |
|---|---|
| Platform height | 39.50 m |
| Horizontal outreach | 20.1 m |
| Lift capacity | 230 kg |
| Vertical jib rotation | 140° (+70°/-70°) |
| Gradeability | 40 % |
| Turning radius – outside axle extended | 5.74 m |
Dimensions
| Length – stowed | 13.10 m |
|---|---|
| Width | 2.5 m |
| Height – stowed | 2.99 m |
| Ground clearance 0.5 – | 5 km/h |
| Platform size 2.44 x | 0.91 m |
Weights & Electrical
| ROUGH TERRAIN ARTICULATING BOOMS | 2420327910 – We reserve the right to modify the tecnical characteristics of this document without notice – 05/2015 |
|---|---|
| Power source PERKINS 55.5 kW – | 74.5 hp (Europe) / |
| Weight 23 | 900 kg |
| Below ground reach | 1.5 m |
Powertrain & Systems
| axle Up to | 4 simultaneous, |
|---|---|
| Tires – foam-filled | 445/65-22.5 |
