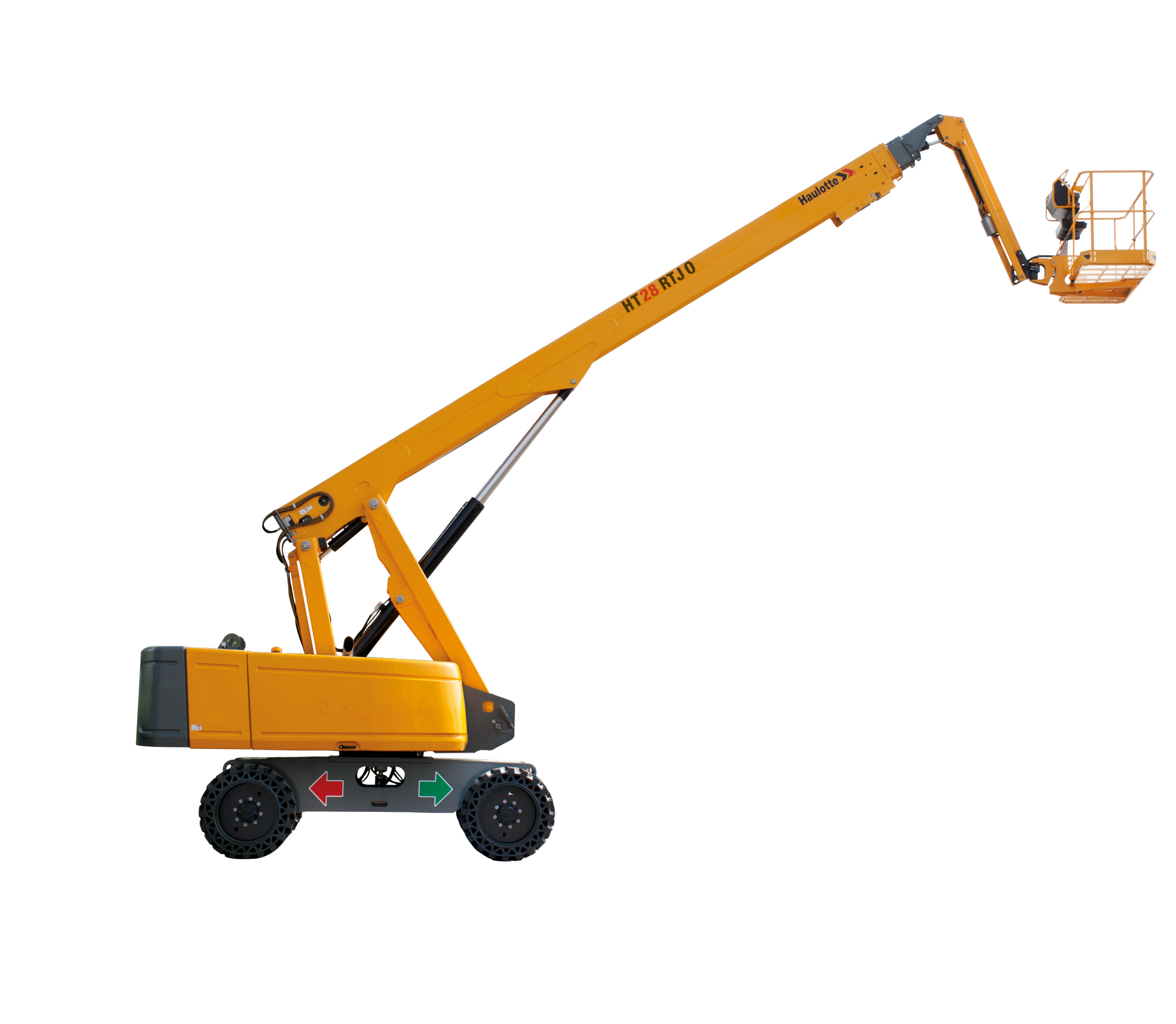

Haulotte HT28 RTJ O Spec Sheet
Quick-reference specifications for the Haulotte HT28 RTJ O. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Working height: 27.9 m
Platform height: 25.9 m
Best horizontal outreach of: 23,85m
Lift capacity: 230 kg (2 persons)
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Best horizontal outreach of | 23,85m |
|---|---|
| Working height | 27.9 m |
| Platform height | 25.9 m |
| Horizontal outreach | 23.85 m |
| Lift capacity | 230 kg (2 persons) |
| Vertical jib rotation | 133° (-66°/+67°) |
| Jib length | 1.83 m |
| Gradeability | 45 % |
| Turning radius – outside | 6,55 m |
| Tailswing | 150 cm |
Dimensions
| Length – storage | 9.8 m |
|---|---|
| Platform size 2.44 x | 0.91 |
| Length – stowed | 13.05 m |
| Width | 2.48 m |
| Height – stowed | 2.85 m |
| Wheelbase | 2.8 m |
| Ground clearance | 48 cm |
| Height – storage | 2.98 m |
Weights & Electrical
| Weight 17 | 900 kg |
|---|---|
| Below ground reach | 3 m |
Powertrain & Systems
| Drive speed 0.5 – | 5 km/h |
|---|---|
| Tires – foam-filled Solid RT cured on | 1025×365 mm |
| Engine Kubota Tier 3 – | 49,3kW & Kubota Tier 4f – 53 kW |
