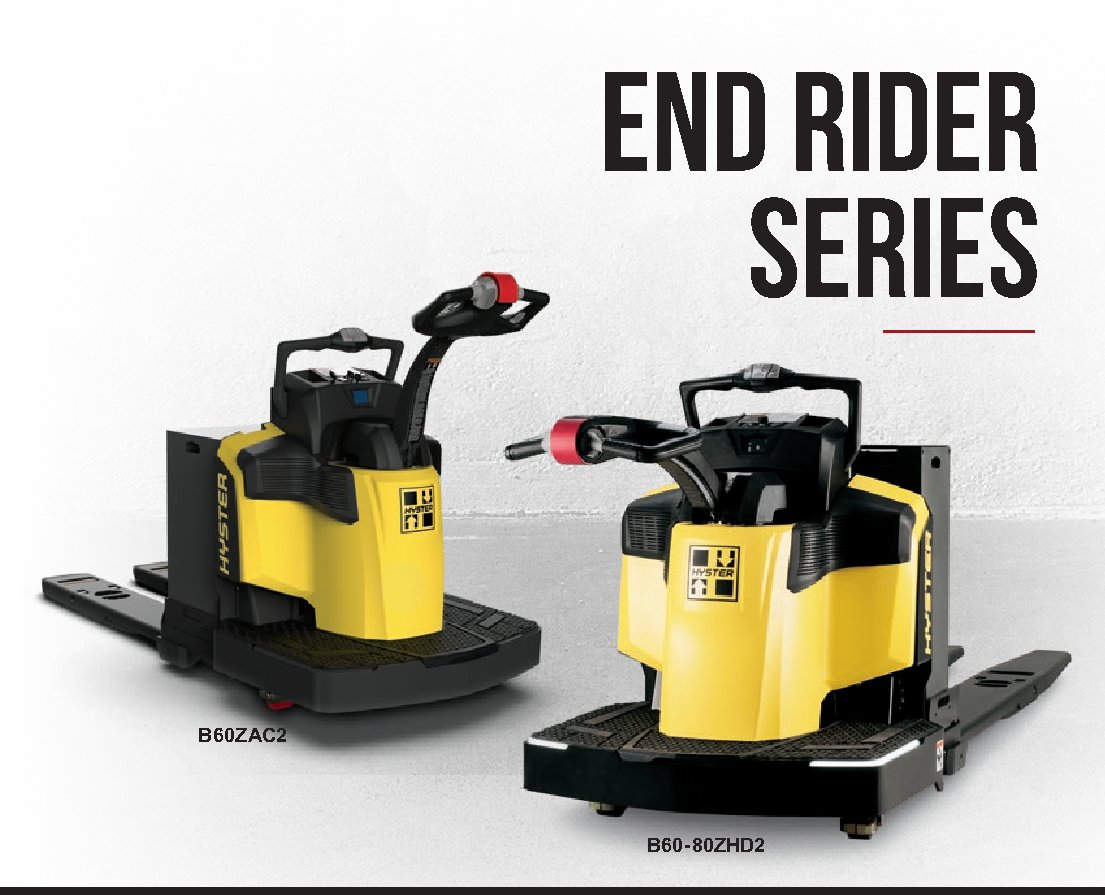

Hyster B60ZHD2 Specs
Quick-reference specifications for the Hyster B60ZHD2 forklift, taken from the manufacturer’s spec sheet.
- Rated capacity
- 6000 lb2722 kg
Performance 3 specs
| Rated capacity | 6000 lb (2722 kg) |
|---|---|
| Max. travel speed – chassis first – No load/rated load | 9.0/6.7 mph (14.5/10.8 kph) |
| Traction motor control method – Type | AC transistor |
Dimensions 8 specs
| Fork overall width | 27.1 in / 28.0 in (688 mm / 710 mm) |
|---|---|
| Fork width – Individual fork | 9.1 in / 10.0 in (232 mm / 254 mm) |
| Overall lift height – Top of forks | 9.3 in (235 mm) |
| Total lift | 5.9 in (151 mm) |
| Truck overall width – Standard platform | 37.2 in (944 mm) |
| Truck overall width – Extended platform | 38.7 in (964 mm) |
| Chassis length – Raised | 45.4 in (1153 mm) |
| Chassis length – Lowered | 44.9 in (1140 mm) |
Weight 2 specs
| Maximum weight | 1500 lb (680 kg) |
|---|---|
| Minimum weight | 540 lb (245 kg) |
Power / Engine 3 specs
| Power type | 24-volt |
|---|---|
| Ampere hours – maximum | 930 ah |
| Ampere hours – minimum | 375 ah |
