Forklift · Hyster

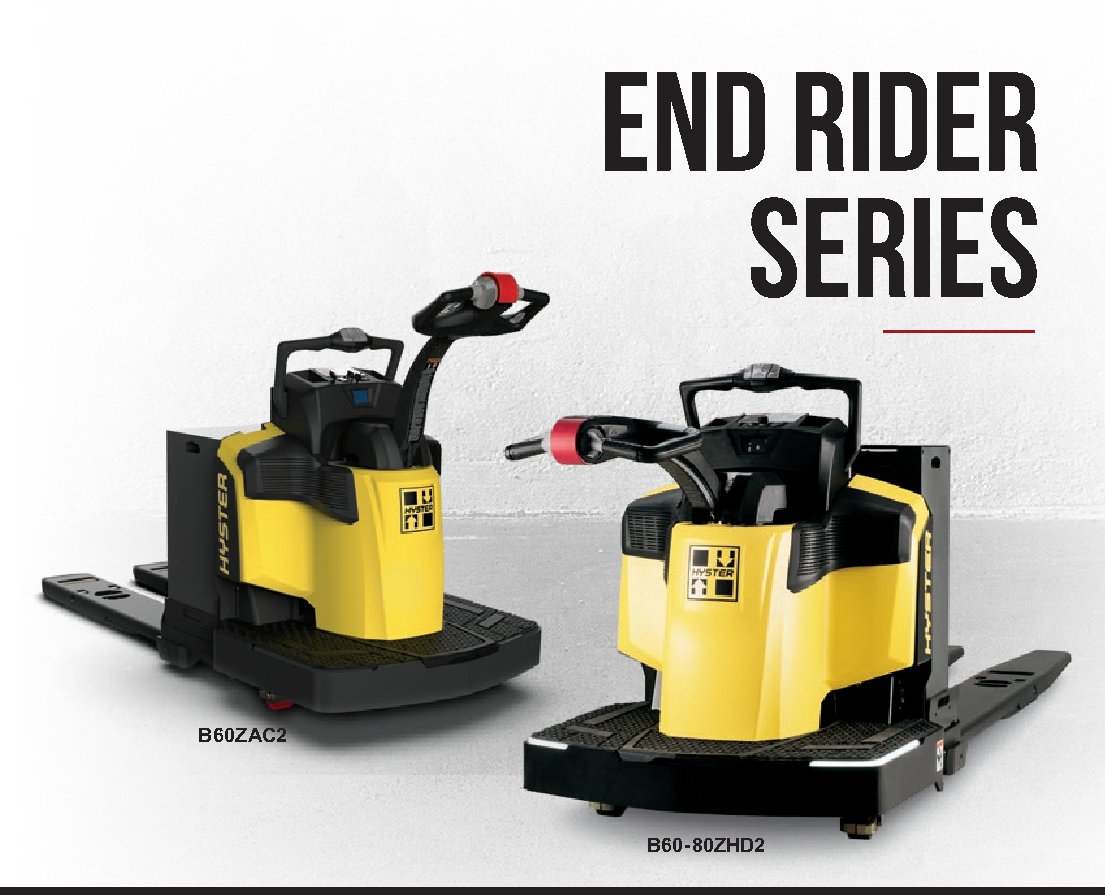

Hyster B80ZHD2 Specs
Quick-reference specifications for the Hyster B80ZHD2 forklift, taken from the manufacturer’s spec sheet.
- Rated capacity
- 8000 lb3629 kg
Performance 5 specs
| Rated capacity | 8000 lb (3629 kg) |
|---|---|
| Max. travel speed – chassis first – No load/rated load | 9.0/6.0 mph (14.5/9.7 kph) |
| Traction motor control method – Type | AC transistor |
| Ampere hours – maximum | 930 ah |
| Ampere hours – minimum | 375 ah |
Dimensions 8 specs
| Fork overall width | 27.1 in (688 mm) |
|---|---|
| Fork width – Individual fork | 9.1 in (232 mm) |
| Center of load wheel to tip of forks – Raised | 12.5 in (317 mm) |
| Center of load wheel to tip of forks – Lowered | 8.1 in (206 mm) |
| Overall lift height – Top of forks | 9.3 in (235 mm) |
| Total lift | 5.9 in (151 mm) |
| Truck overall width – Standard platform | 37.2 in (944 mm) |
| Truck overall width – Extended platform | 38.7 in (984 mm) |
Power / Engine 3 specs
| Power type | 24 volt |
|---|---|
| Battery – Maximum weight | 1500 lb (680 kg) |
| Battery – Minimum weight | 540 lb (245 kg) |
