Forklift · Hyster

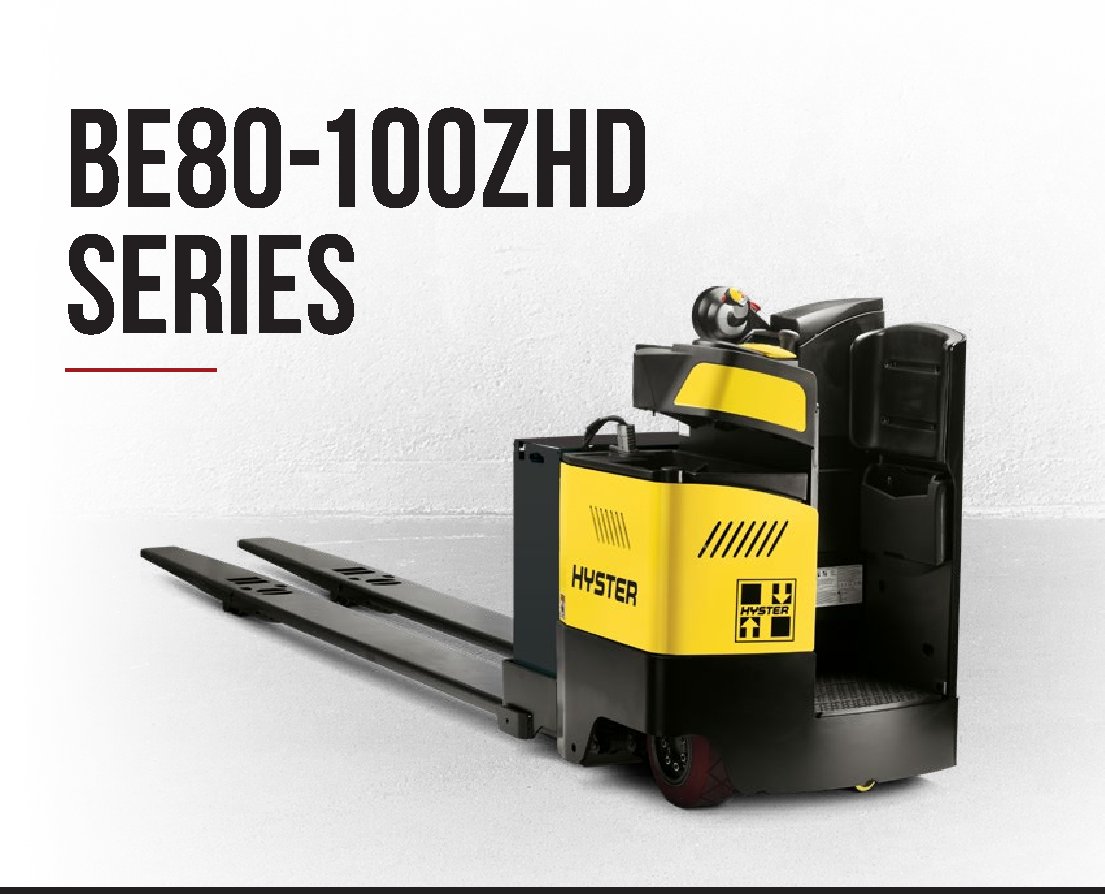

Hyster BE80ZHD Specs
Quick-reference specifications for the Hyster BE80ZHD forklift, taken from the manufacturer’s spec sheet.
- Rated capacity – lifting
- 8000 lb3629 kg
Performance 9 specs
| Rated capacity – lifting | 8000 lb (3629 kg) |
|---|---|
| Max travel speed – chassis first (no load/rated load) | 9.0/6.5 mph (14.5/10.5 kph) |
| Max travel speed – forks first (no load/rated load) | 7.0/6.5 mph (11.3/10.5 kph) |
| Traction motor control method type | AC transistor |
| Service brake type | Electro-mechanical |
| Ampere hours – maximum | 930 ah |
| Ampere hours – minimum | 375 ah |
| Maximum weight | 1500 lb (680 kg) |
| Minimum weight | 825 lb (374 kg) |
Dimensions 6 specs
| Overall lift height Top of forks | 9.3 in (235 mm) |
|---|---|
| Lowered height Top of forks | 3.3 in (84 mm) |
| Total lift | 5.9 in (151 mm) |
| Truck overall width | 38.0 in (967 mm) |
| Chassis length Raised | 44.9 in (1141 mm) |
| Chassis length Lowered | 44.4 in (1128 mm) |
Power / Engine 1 spec
| Battery type | 24-volt |
|---|
