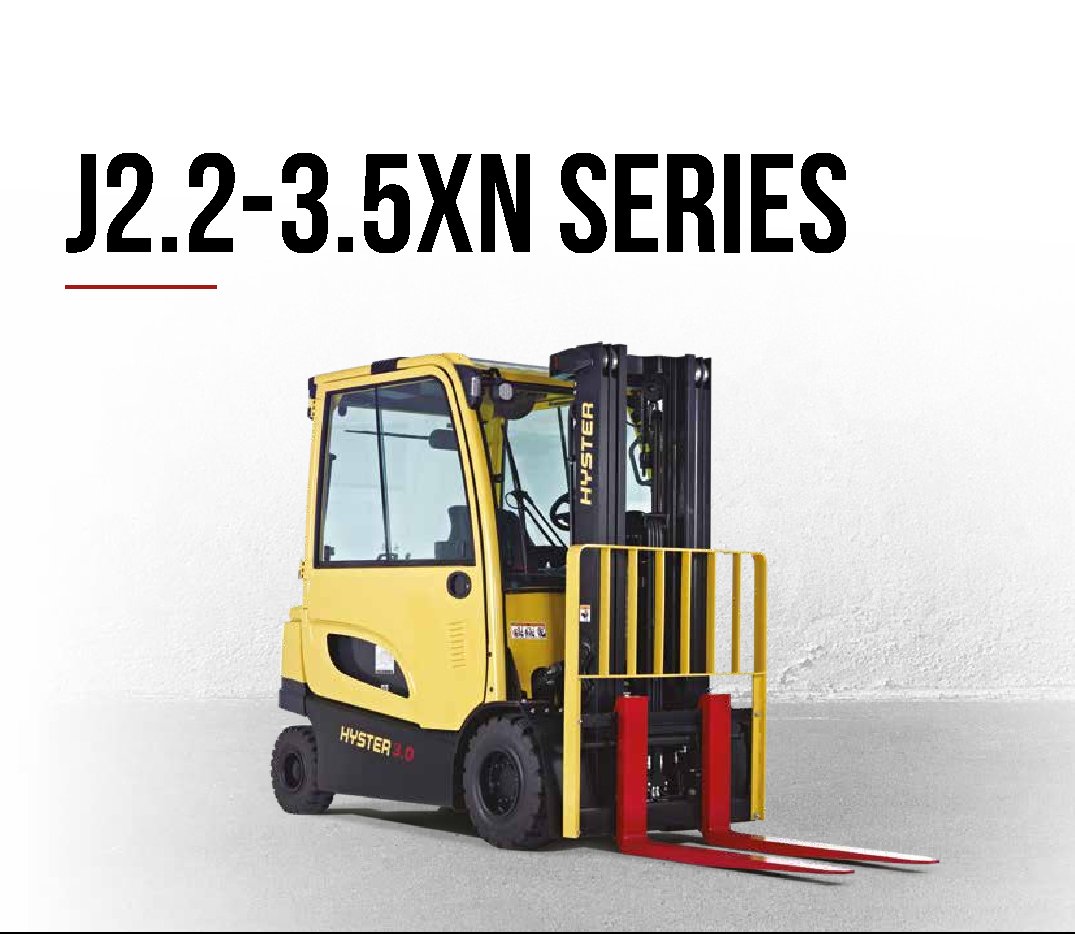

Hyster J3.0XN Specs

Quick-reference specifications for the Hyster J3.0XN forklift, taken from the manufacturer’s spec sheet.

Performance 16 specs

Drive	Electric (battery)
Rated capacity / rated load Q	3000 kg
Load centre distance c	500 mm
Tyres	Pneumatic Shape Solid
Tilt of mast/fork carriage forward/backward α/β	5 / 5 deg
Turning radius Wa	2139 mm
Internal turning radius b	189 mm
Travel speed, with / without load	16.0 / 18.0 km/h
Lifting speed, with / without load	0.33 / 0.59 m/s
Lowering speed with / without load	0.58 / 0.46 m/s
Drawbar pull, with / without load, 60 minute rating	5441 / 5588 N
Maximum drawbar pull, with / without load, 5 minute rating	17956 / 18441 N
Gradeability, with / without load, 30 minute rating	8 / 12 %
Maximum gradeability, with / without load	22 / 34 %
Service brake	Hydraulic
Sound pressure level at the driver’s seat	67 dB A

Wheelbase y	1750 mm
Tyre size, front	23 x 10 – 12
Tyre size, rear	18 x 7 – 8
Height, mast lowered h	2192 mm
Free lift h	100 mm
Lift h	3155 mm
Height, mast extended h	3865 mm
Height of overhead guard h	2193 mm
Height of cab h	2206 mm
Seat height relating to SIP/stand height h	1070 mm
Coupling height h	262 mm
Overall length l	3570 mm
Length to face of forks l	2570 mm
Overall width b1 /b	1173 / 1289 mm
Fork dimensions DIN ISO 2331 s/e/l	50 / 120 / 1000 mm
Fork carriage type ISO 2328, class/type A, B	3A
Fork carriage width b	1067 mm
Ground clearance, laden, below mast m	83 mm
Ground clearance, centre of wheelbase m	137 mm
Aisle width with pallets 1000 wide x 1200 wide Ast	3828 mm
Aisle width with pallets 800 wide x 1200 long Ast	3984 mm
Step Height (from ground to running board)	706 / 810 mm
Step Height	475 mm

Service weight	5320 kg
Axle loading with load, front / rear	7157 / 841 kg
Axle loading without load, front / rear	2560 / 2438 kg

Drive motor rating S2 60 min	2 x 10.0 kW
Lift motor rating at S3 15%	16.0 kW
Battery voltage/nominal capacity K5	80 / 700 V Ah
Battery weight (min/max)	1770 / 956 kg
Drive control	AC electronic

Operating pressure for attachments	155 bar
Oil volume for attachments	20-40 l min
Hydraulic oil tank, capacity	29.3 l
