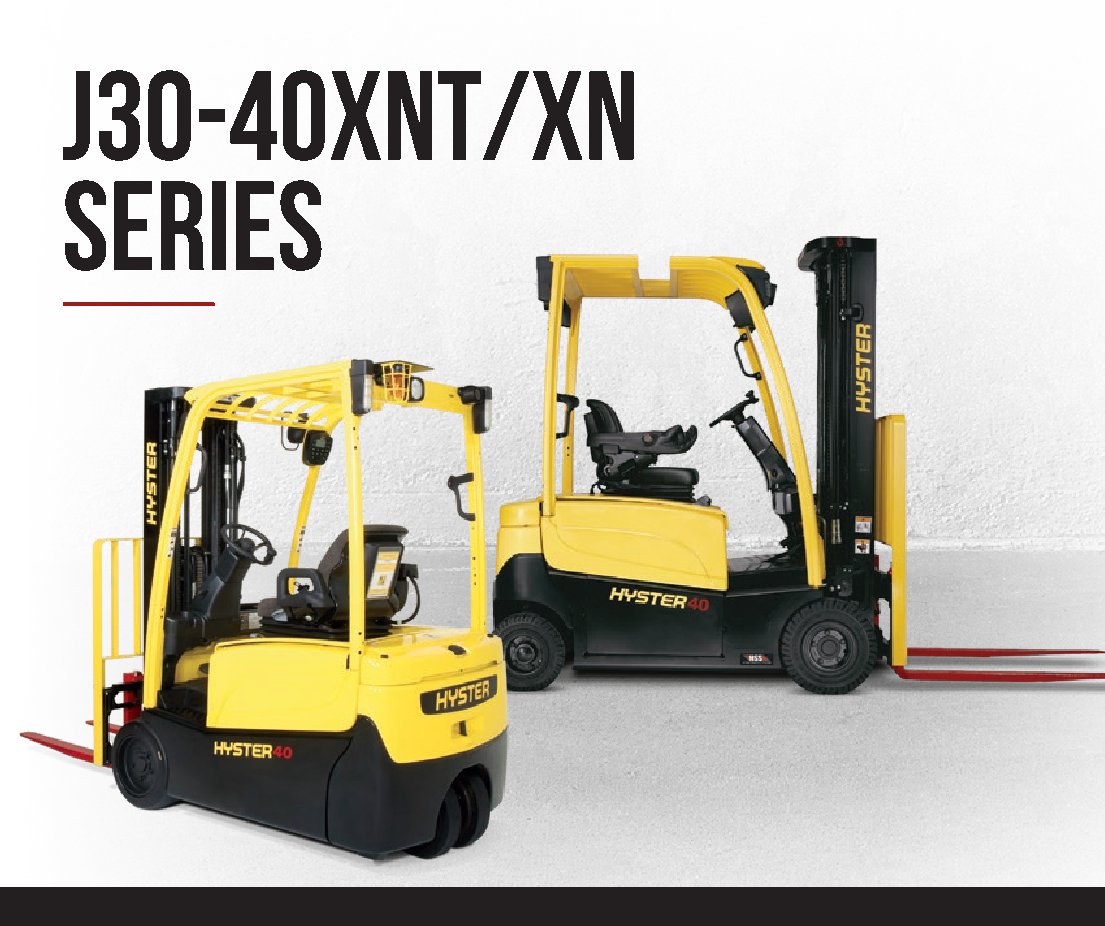

Hyster J35XN Specs
Quick-reference specifications for the Hyster J35XN forklift, taken from the manufacturer’s spec sheet.
- Rated capacity
- 3500 lb1588 kg
- Gradeability 5 minute rating (NL/RL)
- 38.4/26.5 34/25 %
Performance 19 specs
| Rated capacity | 3500 lb (1588 kg) |
|---|---|
| Load center | 24 in (610 mm) |
| Mast tilt Std opt opt | 5F/5B 10F/5B 5F/4B degrees |
| Outside turning radius | 58.3 in (1481 mm) |
| Travel speed Extended shift off (NL/RL) | 9.9/9.9 mph (16/16 km/h) |
| Travel speed Extended shift on (NL/RL) | 8.7/8.7 mph (14.0/14.0 km/h) |
| Lift speed Std 2-stg LFL mast (NL/RL) | 128/77 ft/min (0.65/0.39 m/sec) |
| Lift speed Opt 2-stg FFL mast (NL/RL) | 114/75 ft/min (0.58/0.38 m/sec) |
| Lift speed Opt 3-stg FFL mast (NL/RL) | 114/75 ft/min (0.58/0.38 m/sec) |
| Lift speed Opt 4-stg FFL mast (NL/RL) | 120/77 ft/min (0.61/0.39 m/sec) |
| Lower speed Std 2-stg LFL mast (NL/RL) | 93/100 ft/min (0.47/0.51 m/sec) |
| Lower speed Opt 2-stg FFL mast (NL/RL) | 77/91 ft/min (0.39/0.46 m/sec) |
| Lower speed Opt 3-stg FFL mast (NL/RL) | 81/91 ft/min (0.41/0.46 m/sec) |
| Lower speed Opt 4-stg FFL mast (NL/RL) | 94/98 ft/min (0.48/0.50 m/sec) |
| Gradeability 5 minute rating (NL/RL) | 38.4/26.5 34/25 % |
| Gradeability 60 minute rating (NL/RL) | 6.0/4.4 9.9/6.5 % |
| Brake Method of control (service/parking) | Hydraulic/mechanical |
| Brake Method of operation (service/parking) | Foot/automatic |
| Sound level Measured per ANSI B56.11.5 | 69 db (a) |
Dimensions 17 specs
| Tire size (drive/steer) | 18 x 7-8 / 15 x 4.5-8 |
|---|---|
| Tread ctr. of tires (drive/steer) | 35/7.6 in (889/194 mm) |
| Mast – lowered height Std mast | 78 in (1980 mm) |
| Mast – extended height Std mast with/without LBR | 168/142 in (4262/3606 mm) |
| Overhead guard height Std/flat plate/drive in rack | 81.5/77.9/81.5 in (2070/1979/2070 mm) |
| Sip to bottom std OHG Nominal Std/susp/swivel | 38.5/37.5/37.4 in (978/953/951 mm) |
| Tow pin height Vertical center of pin | 21.2 in (540 mm) |
| Overall width | 41.3 in (1050 mm) |
| Forks Thickness x width x length | 1.6 x 3.9 x 42 in (40 x 100 x 1067 mm) |
| Ground clearance Lowest point (NL/RL) | 2.8/2.8 in (70/70 mm) |
| Ground clearance Center of truck (NL/RL) | 3.9/3.9 in (100/100 mm) |
| Load distance Center of wheel to face of forks | 12.6 in (321 mm) |
| Length to face of forks Chassis length | 70.9 in (1802 mm) |
| Wheelbase | 50.8 in (1290 mm) |
| Right angle stack | 122.2 in (3103 mm) |
| Step height | 19.1 in (484 mm) |
| Floor height Lowest point | 22.0 in (560 mm) |
Power / Engine 7 specs
| Floor to top of battery rollers | 7 in (178 mm) |
|---|---|
| Battery compartment Height Std/battery rollers/tall | 23.9/25.4/26.7 in (607/645/677 mm) |
| Battery compartment Width | 39 in (990 mm) |
| Battery compartment Length | 21.5 in (546 mm) |
| Truck weight Without battery (NL) | 5120 lb (2322 kg) |
| Voltage | 36 48 |
| Traction motors Type/control method | AC/transistor |
Hydraulics / Fluids 3 specs
| Pump motor Type/control method | AC/transistor |
|---|---|
| Attachment relief pressure (mech levers/mini-levers) | 2600/2250 psi (180/155 bar) |
| Auxiliary oil flow 3rd and 4th function | 5.3/10.6 gal/min (20/40 l/min) |
