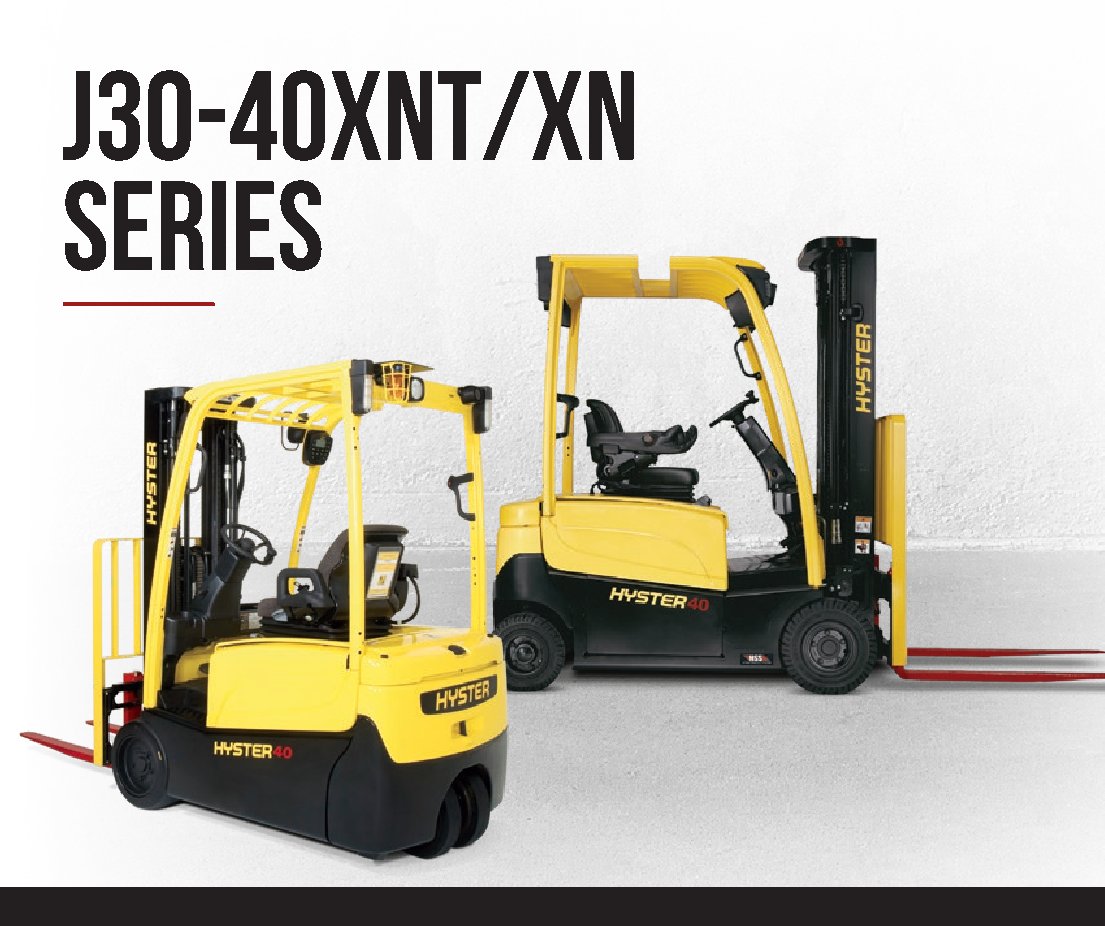

Hyster J40XNT Specs
Quick-reference specifications for the Hyster J40XNT forklift, from the manufacturer’s spec sheet and published specifications.
- Operating Weight (Without Battery)
- 5,290 lb2,400 kg
- Gradeability (Full Load)
- 3.9%
Performance 12 specs
| Lower speed | Std 2-stg LFL mast (NL/RL) |
|---|---|
| Load Capacity | 4,000 lb (1,814 kg) |
| Load Center | 24 in (610 mm) |
| Max Speed (Extended Shift Off) | 9.9 mph (16 km/h) |
| Max Speed (Extended Shift On) | 8.7 mph (14 km/h) |
| Lift Speed (Std 2-stage mast, 36V) | 67 ft/min (20.4 m/min) |
| Lift Speed (Std 2-stage mast, 48V) | 83 ft/min (25.3 m/min) |
| Lower Speed (Std 2-stage mast, 36V) | 100 ft/min (30.5 m/min) |
| Gradeability (Full Load) | 3.9% |
| Turning Radius (Outside) | 5.2 ft (1.58 m) |
| Mast Tip Forward | 5 degrees |
| Mast Tip Rear | 5 degrees |
Dimensions 12 specs
| Overall Width | 3.7 ft (1.116 m) |
|---|---|
| Length to Fork Face | 6.23-6.3 ft (1.90-1.92 m) |
| Overall Height – Mast Lowered | 6.5 ft (1.98 m) |
| Height to Top of Overhead Guard | 6.8 ft (2.07 m) |
| Wheelbase | 4.55-4.6 ft (1.39-1.40 m) |
| Ground Clearance | 3.94-4.0 in (100-102 mm) |
| Right Angle Stack | 10.5 ft (3.20 m) |
| Step Height | 19.1 in (484 mm) |
| Floor Height (Lowest Point) | 22.0 in (560 mm) |
| Fork Size (Std) | 2 x 4 in (40 x 100 mm) |
| Front Tire Size | 200/50-10 |
| Rear Tire Size | 15 x 4.5-8 |
Weight 3 specs
| Operating Weight (Without Battery) | 5,290 lb (2,400 kg) |
|---|---|
| Axle Load – Front (Static w/ Battery) | 3,749 lb (1,700 kg) |
| Axle Load – Rear (Static w/ Battery) | 3,937 lb (1,785 kg) |
Power / Engine 3 specs
| Battery Voltage Options | 36 V / 48 V |
|---|---|
| Traction Motors (Dual) | 36 V: 6.4 hp (4.8 kW) each / 48 V: 6.7 hp (5.0 kW) each |
| Pump Motor (15-minute rating) | 16.1 hp (12.0 kW) |
Hydraulics / Fluids 5 specs
| Attachment Relief Pressure (Mech Levers) | 2,600 psi (180 bar) |
|---|---|
| Attachment Relief Pressure (Mini-Levers) | 2,250 psi (155 bar) |
| Auxiliary Oil Flow (3rd Function) | 5.3 gal/min (20 L/min) |
| Auxiliary Oil Flow (4th Function) | 10.6 gal/min (40 L/min) |
| Sound Level (ANSI B56.11.5) | 69 dB (A) |
