Forklift · Hyster

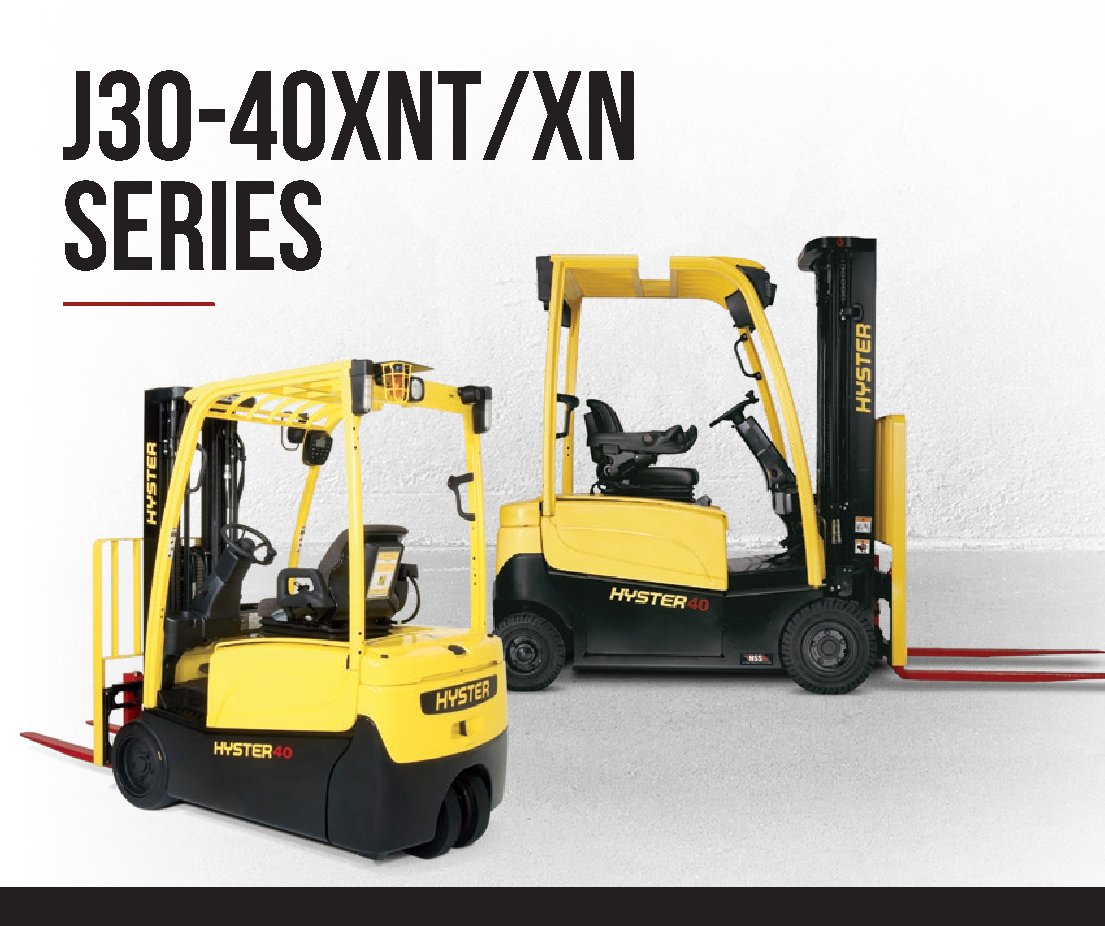

Hyster J40XN Specs
Quick-reference specifications for the Hyster J40XN forklift, from the manufacturer’s spec sheet and published specifications.
- Operating Weight
- 5,311 lb2,409 kg
- Gradeability
- 36%
Performance 8 specs
| Lower speed | Std 2-stg LFL mast (NL/RL) |
|---|---|
| Load Capacity | 4,000 lb (1,814 kg) |
| Load Center | 24 in (610 mm) |
| Lift Speed | 128 ft/min (39.01 m/min) |
| Max Speed | 10 mph (16.09 km/h) |
| Gradeability | 36% |
| Drawbar Pull | 2,719 lb (1,233 kg) |
| Turning Radius | 5.5 ft (1.68 m) |
Dimensions 9 specs
| Length to Fork Face | 6.5 ft (1.98 m) |
|---|---|
| Overall Width | 3.7 ft (1.13 m) |
| Overall Height – Mast Lowered | 6.5 ft (1.98 m) |
| Height to Top of Overhead Guard | 6.8 ft (2.07 m) |
| Wheelbase | 4.7 ft (1.43 m) |
| Ground Clearance | 2.8 in (7.11 cm) |
| ForkSize(TxWxL) | 1.6 x 3.9 x 42 in (40 x 100 x 1,067 mm) |
| Mast Tilt Forward | 5 degrees |
| Mast Tilt Rear | 5 degrees |
Weight 3 specs
| Operating Weight | 5,311 lb (2,409 kg) |
|---|---|
| Axle Load – Front | 3,839 lb (1,741 kg) |
| Axle Load – Rear | 3,866 lb (1,754 kg) |
Power / Engine 3 specs
| Operating Voltage | 36 volts |
|---|---|
| Traction Motor | 9.6 kW |
| Drive Motor Power | 6.4 hp (36 V) |
Hydraulics / Fluids 2 specs
| Front Tire Size | 200/50-10 |
|---|---|
| Rear Tire Size | 140/55-9 |
