Telehandler · Ingersoll Rand

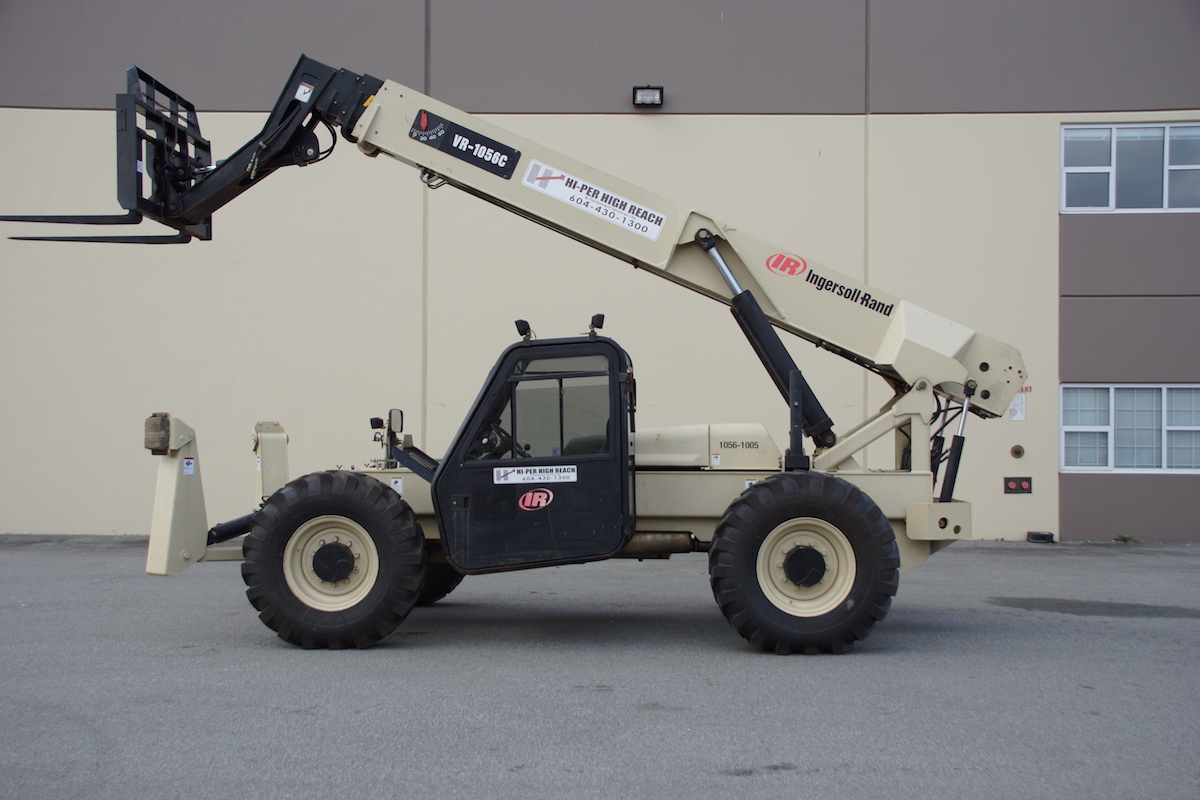

Ingersoll Rand VR-1056C Specs
Quick-reference specifications for the Ingersoll Rand VR-1056C telehandler, taken from the manufacturer’s spec sheet.
- Operating Weight
- 31,528 lb14331 kg
Performance 16 specs
| Boom Extension | 35 ft 4 in (10763 mm) |
|---|---|
| Max Forward Reach | 41 ft 6 in (12649 mm) |
| Max Reach @ Max Lift Height | 8 ft 8 in (2641 mm) |
| Max Reach @ Practical Placement Height | 12 ft 0 in (3658 mm) |
| Max Reach Below Grade w/ Standard Carriage | 3 ft 4 in (1016 mm) |
| Turning Radius – To Outside of Tires | 12 ft 10 in (3892 mm) |
| Turning Radius – To Inside of Tires | 6 ft 0 in (1829 mm) |
| Frame Leveling at Boom Angle Less Than 40° – Right | 10° |
| Frame Leveling at Boom Angle Less Than 40° – Left | 10° |
| Boom Type | 4-stage |
| Telescope Extend Speed | 19.1 seconds |
| Telescope Retract Speed | 16.1 seconds |
| Boom Raised | 13.7 seconds |
| Boom Lowered | 11.7 seconds |
| Carriage Rotation | 113° |
| Drive | All-wheel drive |
Dimensions 10 specs
| Overall Length (less forks) | 22 ft 6 in (6858 mm) |
|---|---|
| Overall Width | 8 ft 6 in (2591 mm) |
| Overall Height | 8 ft 2 in (2482 mm) |
| Wheelbase | 11 ft 1/2 in (3366 mm) |
| Drive Axle to Carriage Front | 6 ft 1 in (1852 mm) |
| Ground Clearance | 1 ft 4 in (406 mm) |
| Tread Width | 7 ft 2 in (2180 mm) |
| Max Lift Height | 56 ft 2 in (17120 mm) |
| Practical Placement Height | 54 ft 4 in (16561 mm) |
| Max Boom Angle | 70° |
Weight 1 spec
| Operating Weight | 31,528 lb (14331 kg) |
|---|
Power / Engine 4 specs
| Make / Model | Cummins QSB4.5-30-T |
|---|---|
| Fuel / Cooling | Diesel / liquid |
| SAE net hp | 110 hp (82.1 kW) |
| Transmission | 3-speed powershift with soft shift |
Hydraulics / Fluids 1 spec
| Fuel Tank Capacity | 35 gal (132.65 L) |
|---|
