Telehandler · Ingersoll Rand

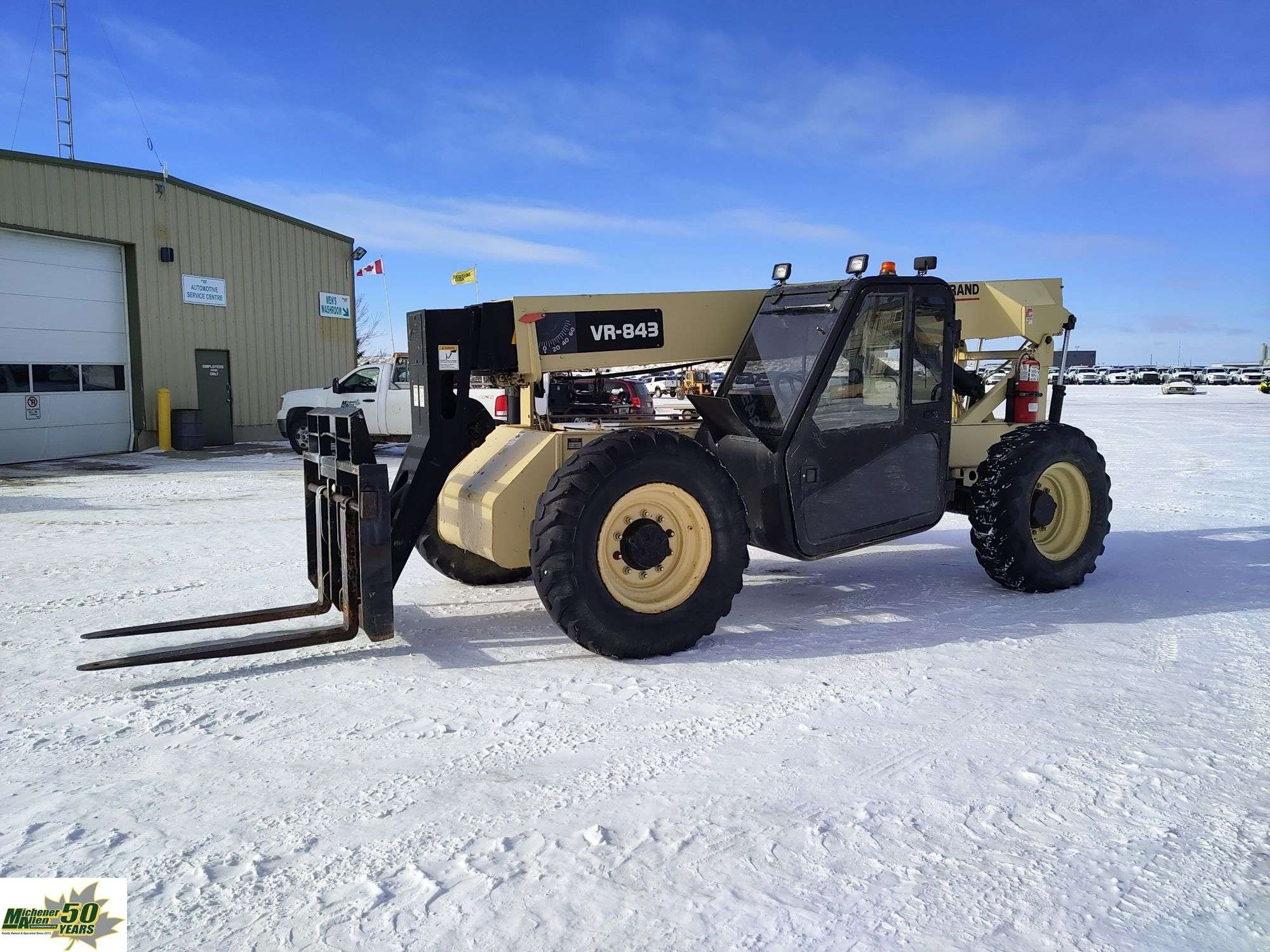

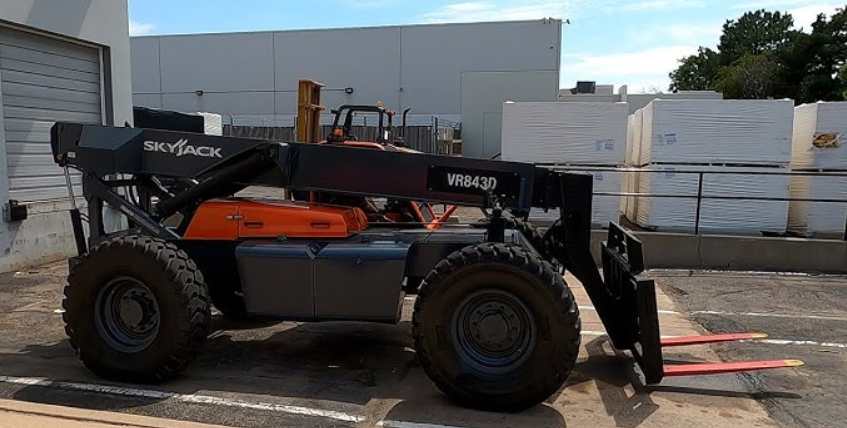

Ingersoll Rand VR-843D Specs
Quick-reference specifications for the Ingersoll Rand VR-843D telehandler, taken from the manufacturer’s spec sheet.
- Maximum lift height
- 43 ft 1 in13.13 m
- Maximum forward reach
- 28 ft 2 in8.59 m
- Operating Weight
- 22,158 lb10,072 kg
Performance 7 specs
| Maximum capacity | 8,000 lb (3,629 kg) |
|---|---|
| Maximum forward reach | 28 ft 2 in (8.59 m) |
| Carriage rollback (boom lowered) | 23 degrees |
| Carriage forward tilt (boom elevated) | 90 degrees |
| Top Speed | 18 mph (29 km/h) |
| Frame Leveling (degrees) | +/- 11 |
| Turning Radius (outside) | 12 ft 3 in (3.73 m) |
Dimensions 7 specs
| Maximum lift height | 43 ft 1 in (13.13 m) |
|---|---|
| Wheelbase | 10 ft 8 in (3.25 m) |
| Overall Width | 8 ft 6 in (2.59 m) |
| Overall Height (stowed) | 7 ft 11 in (2.41 m) |
| Overall Length (less forks) | 21 ft (6.40 m) |
| Ground Clearance | 16 in (41 cm) |
| Tire | 13 x 24 14PR grip lug |
Weight 1 spec
| Operating Weight | 22,158 lb (10,072 kg) |
|---|
Power / Engine 6 specs
| Engine | Cummins Tier 3 QSB3.3 Turbocharged Diesel |
|---|---|
| HP @ rpm | 110 horsepower @ 2400 rpm |
| Axles | Dana steerable outboard planetary |
| Brakes – Service | 4 wheel wet disc |
| Brakes – Parking | SAHR on rear axle |
| Alternator | 12 volt – 60 amp. |
Hydraulics / Fluids 2 specs
| Fuel tank capacity | 35 US gal (133 L) |
|---|---|
| Hydraulic tank capacity | 40 US gal (151 L) |
