Telehandler · Ingersoll Rand

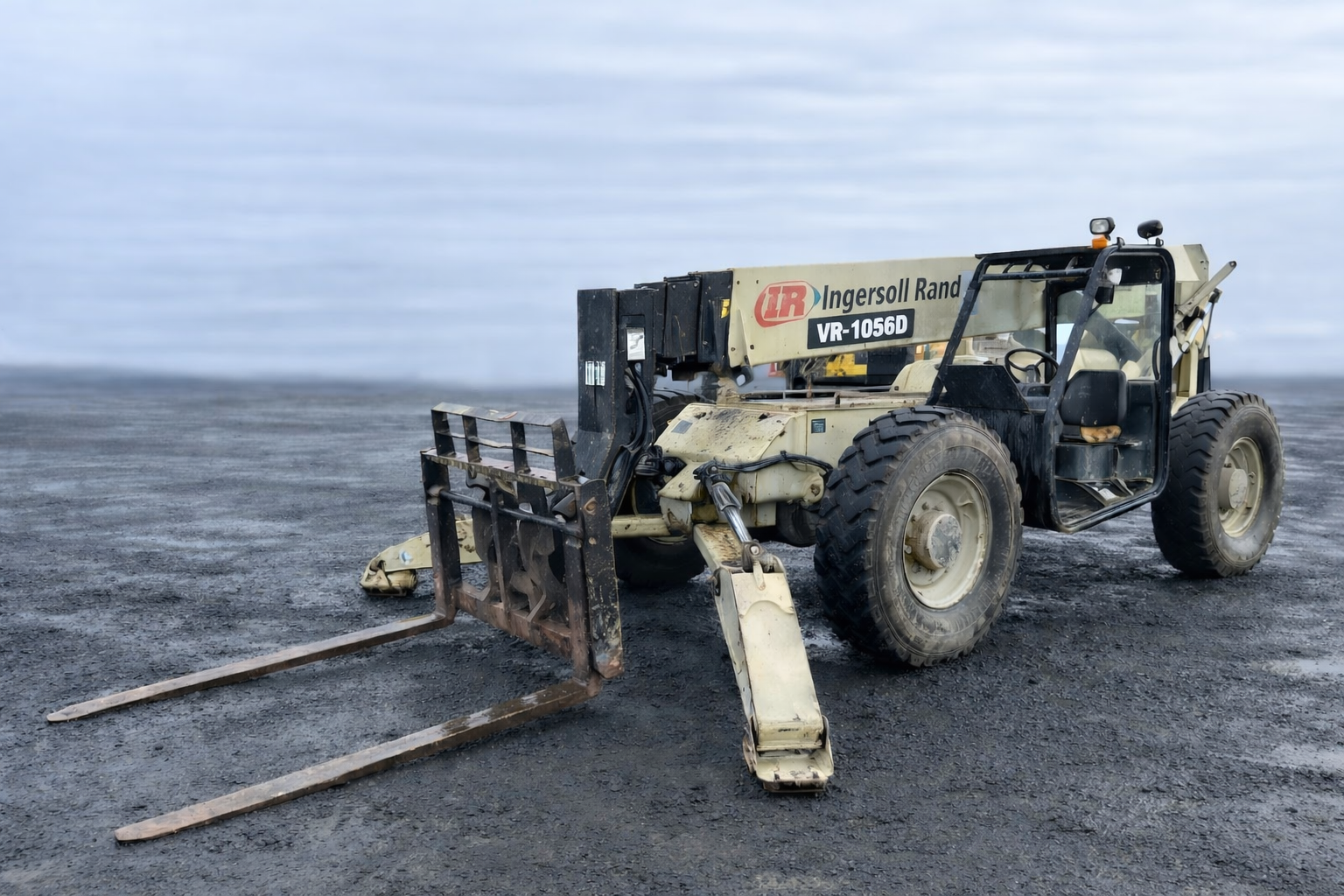

Ingersoll Rand VR-1056D Specs
Quick-reference specifications for the Ingersoll Rand VR-1056D telehandler, taken from the manufacturer’s spec sheet.
- Boom – Maximum lift height
- 56 ft 3 in17.14 m
- Boom – Maximum forward reach
- 41 ft 5 in12.65 m
- Operating Weight
- 31,494 lb14,315 kg
Performance 7 specs
| Turning Radius (outside) | 12 ft 9 in (3.89 m) |
|---|---|
| Frame Leveling (degrees) | +/- 10 |
| Top Speed | 18 mph (29 km/h) |
| Axles | Dana planetary outboard planetary |
| Brakes – Service | 4 wheel wet disc |
| Brakes – Parking | SAHR on front axle |
| Boom – Maximum forward reach | 41 ft 5 in (12.65 m) |
Dimensions 7 specs
| Wheelbase | 11 ft 1 in (3.37 m) |
|---|---|
| Overall Width | 8 ft 6 in (2.59 m) |
| Overall Height (stowed) | 8 ft 2 in (2.48 m) |
| Overall Length (less forks) | 22 ft 6 in (6.86 cm) |
| Ground Clearance | 16 in (41 cm) |
| Tire | 14 x 24 16PR grip lug |
| Boom – Maximum lift height | 56 ft 3 in (17.14 m) |
Weight 1 spec
| Operating Weight | 31,494 lb (14,315 kg) |
|---|
Power / Engine 3 specs
| Engine | Cummins Tier 3 QSB3.3 Turbocharged Diesel |
|---|---|
| HP @ rpm | 110 horsepower @ 2400 rpm |
| Alternator | 12 volt – 60 amp. |
Hydraulics / Fluids 2 specs
| Fuel tank capacity | 35 US gal (133 L) |
|---|---|
| Hydraulic tank capacity | 35 US gal (133 L) |
