Telehandler · Ingersoll Rand

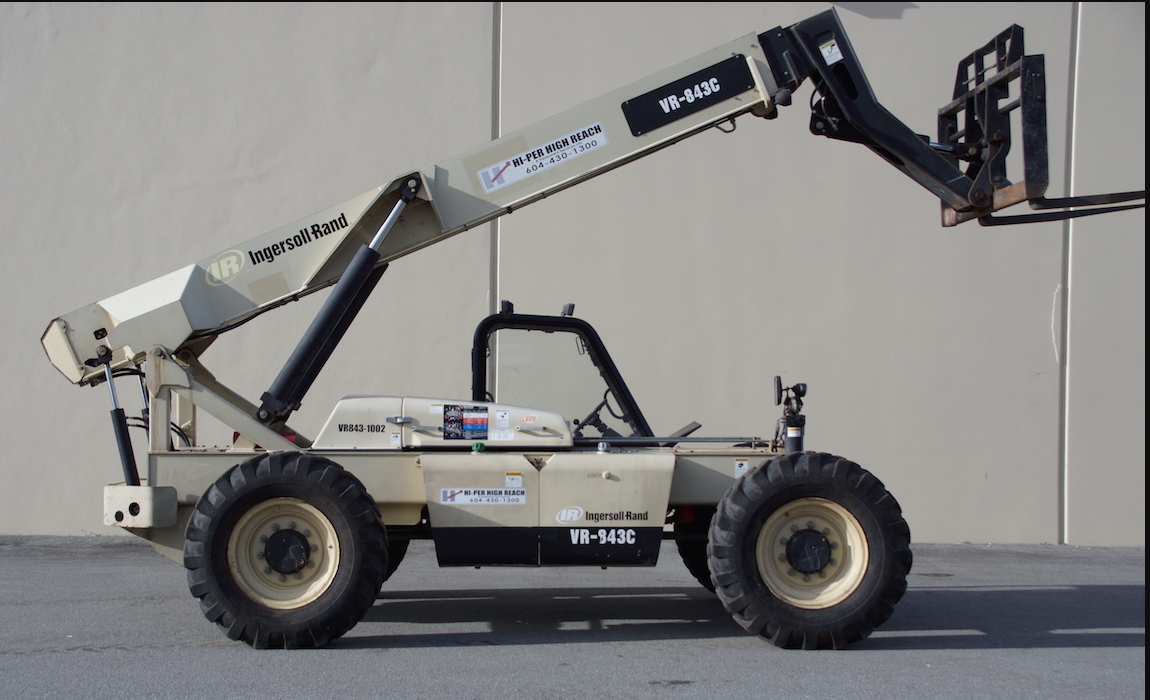

Ingersoll Rand VR-843 Specs

Quick-reference specifications for the Ingersoll Rand VR-843 telehandler, compiled from published specifications.

Rated Lift Capacity: 8,000 lb3,629 kg
Maximum Lift Height: 41 ft 1 in12.5 m
Maximum Forward Reach: 28 ft 2 in8.6 m
Operating Weight: 22,813 lb10,345 kg

Performance 8 specs

Rated Lift Capacity	8,000 lb (3,629 kg)
Maximum Lift Height	41 ft 1 in (12.5 m)
Maximum Forward Reach	28 ft 2 in (8.6 m)
Lift Capacity at Max Height	6,000 lb (2,722 kg)
Reach at Max Height	4 ft 4 in (1.32 m)
Travel Speed	≈20 mph (32 km/h)
Turning Radius	12 ft 3 in (3.73 m)
Ground Clearance	1 ft 4 in (0.41 m)

Dimensions 5 specs

Overall Length	21 ft 0 in (6.4 m)
Overall Width	8 ft 6 in (2.59 m)
Overall Height	7 ft 11 in (2.41 m)
Wheelbase	10 ft 8 in (3.25 m)
Boom Extension	23 ft 6 in (7.16 m)

Weight 2 specs

Operating Weight	22,813 lb (10,345 kg)
Shipping Weight	22,230 lb (10,083 kg)

Power / Engine 4 specs

Engine Make/Model	Cummins QSB4.5-30-T
Horsepower	110 hp (82 kW)
Fuel Tank Capacity	35 gal (132 L)
Transmission	3-speed power shift

Hydraulics / Fluids 4 specs

Hydraulic System Pressure	≈3,000 psi
Hydraulic Pump Flow	≈28-30 gpm
Pilot System Pressure	500 psi
Steering Modes	2-wheel, 4-wheel, crab steering
