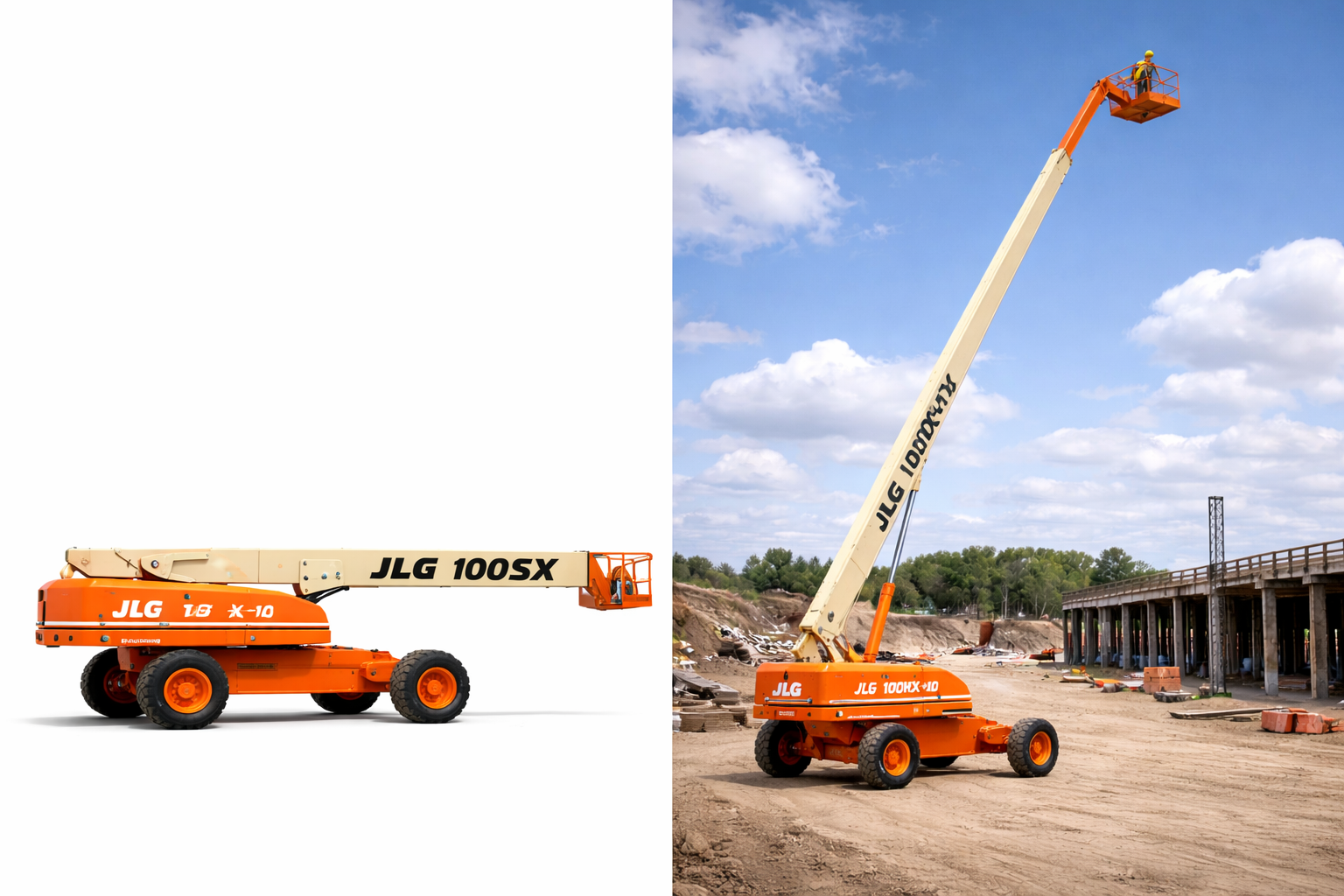

JLG 100SX Specs
Quick-reference specifications for the JLG 100SX boom lift, compiled from published specifications.
- Platform Capacity – Unrestricted
- 500 lb230 kg
- Platform Height
- 100 ft30.5 m
Performance 9 specs
| Platform Height | 100 ft (30.5 m) |
|---|---|
| Horizontal Outreach | 60 ft (18.3 m) |
| Platform Capacity – Unrestricted | 500 lb (230 kg) |
| Platform Capacity – Restricted | 1000 lb (450 kg) |
| Platform Rotator | 180° Hydraulic |
| Swing | 360° Continuous |
| Stowed Height | 10 ft (3.0 m) |
| Stowed Length | 37 ft 10 in (11.55 m) |
| Wheelbase | 10 ft (3.05 m) |
Dimensions 3 specs
| Overall Width – Axles Retracted | 8 ft 2 in (2.49 m) |
|---|---|
| Overall Width – Axles Extended | 10 ft 10 in (3.3 m) |
| Tailswing (Axles Extended) | 2 ft 10 in (86 cm) |
Weight 1 spec
| Gross Weight | 37,700 lb (17,136 kg) |
|---|
Power / Engine 3 specs
| Engine Model | Deutz F4L912 |
|---|---|
| Horsepower | 70 @ 2400 RPM, no load |
| Alternator | 55 Amp |
Hydraulics / Fluids 3 specs
| Main Valve Pressure | 3450 psi (238 bar) |
|---|---|
| Output Torque | 10236 ft-lb |
| Output Speed | 31 rpm |
