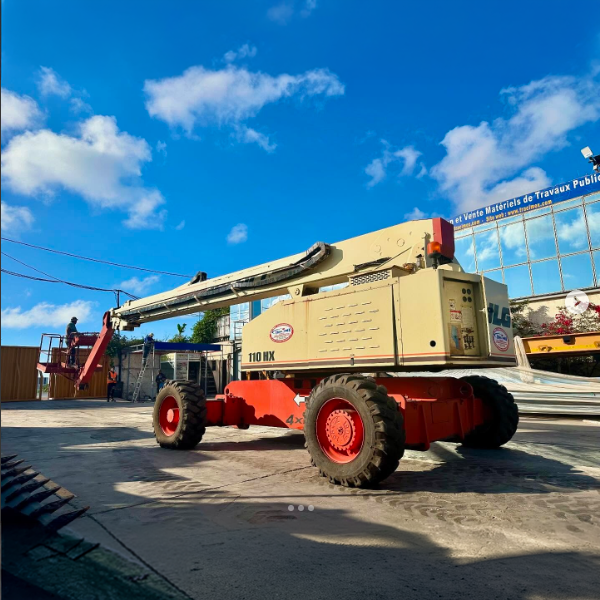

JLG 110HX Spec Sheet
Quick-reference specifications for the JLG 110HX. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Platform Capacity – Restricted: 1000lbs
Working Height: 116ft (35.37m)
Platform Height: 110ft (33.54m)
Stowed Height 9ft: 10in (3m)
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Platform Height | 110ft (33.54m) |
|---|---|
| Working Height | 116ft (35.37m) |
| Platform Capacity – Restricted | 1000lbs |
| Platform Capacity – Unrestricted | 500lbs |
| Travel Speed | 2.8mph (4.5km / h) |
| Gradeability | 20% on Hard Surface |
| Turning Radius (Outside) – Radius Axles Retracted 22ft | 10in (9.96m) |
| Turning Radius (Outside) – Radius Axles Extended | 24ft (7.32m) |
Dimensions
| Stowed Length 36ft | 2in (11m) |
|---|---|
| Stowed Height 9ft | 10in (3m) |
| Width – Axles Retracted 8ft | 6in (2.59m) |
| Width – Axles Extended | 34in (.86m) |
| Wheelbase | 132in (3.35in) |
| Ground Clearance | 11in (29.7cm) |
| Maximum Height | 110ft (33.5m) |
| Stowed Length 44ft | 2in (13.5m) |
| Platform Sizes – Standard 36in x 72in (.91m x | 1.82m) |
Weights & Electrical
| Horizontal Reach | 60ft (18.29m) |
|---|---|
| Maximum Reach | 60ft (18.3m) |
| Below Ground Reach | 12ft (3.66m) |
| Gross Weight | 39,600lbs (17,962kg) |
Powertrain & Systems
| Engine – Gasoline 63hp at | 2800rpm |
|---|---|
| Engine – Diesel 76hp at | 2800rpm |
| Tires (Foam Filled) 15 x | 22.5 |
Hydraulics & Capacities
| Main Pump Output 39gpm at | 2800rpm (147.6L / min) |
|---|---|
| Auxiliary Pump Output | 4.75gpm (18L / min) |
| Hydraulic Pump Output | 55 gallons (208.2L) |
| Fuel Tank Capacity | 26 gallons (98.4L) |
