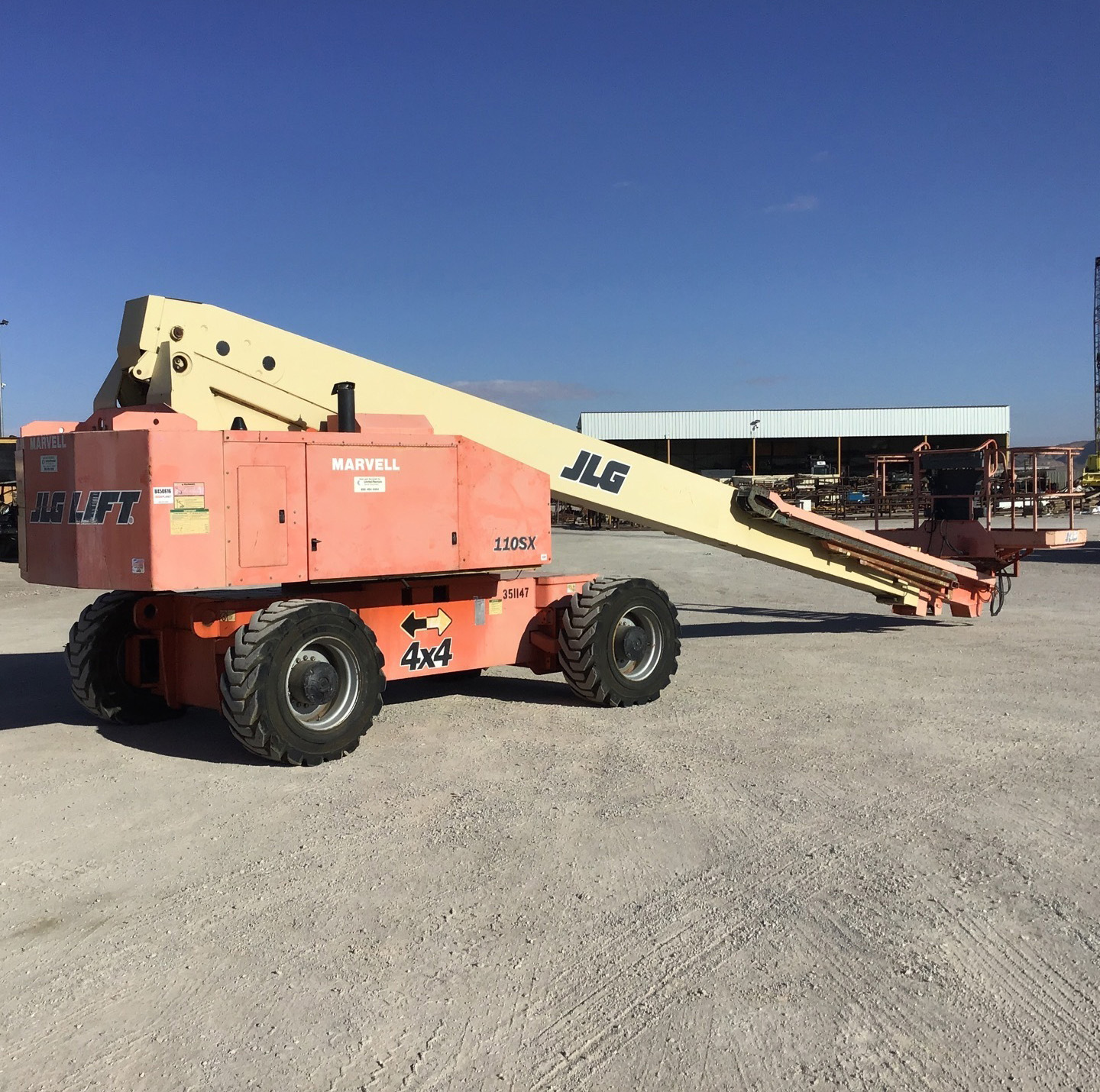

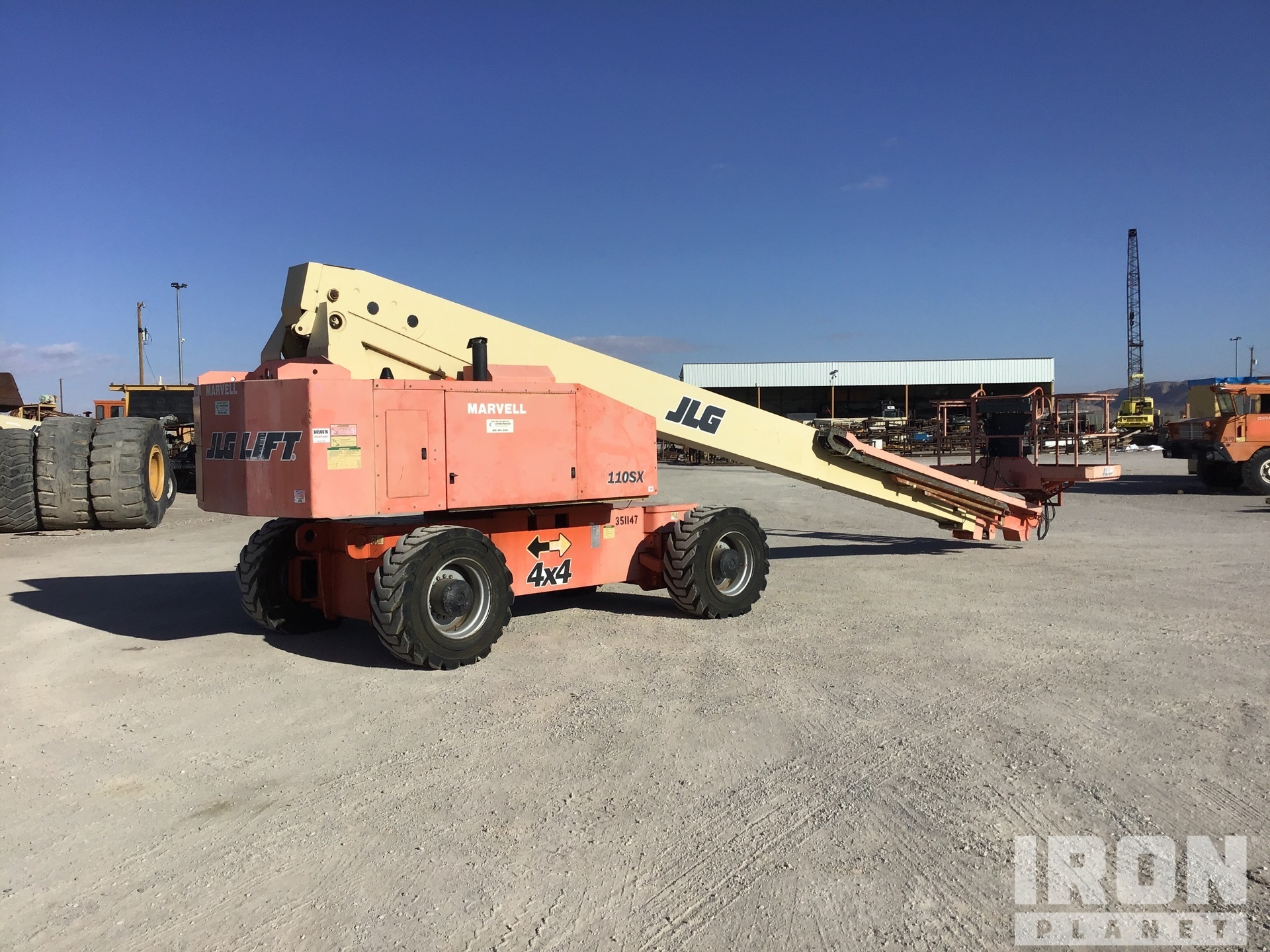

JLG 110SX Specs
Quick-reference specifications for the JLG 110SX boom lift, taken from the manufacturer’s spec sheet.
- Platform Capacity-Restricted
- 1000 lb450 kg
- Platform Height
- 110 ft33.53 m
- Gradeability
- 40%
Performance 10 specs
| Horizontal Outreach | 60 ft (18.29 m) |
|---|---|
| Below Ground Reach | 12 ft (3.6 m) |
| Swing | 360° Continuous |
| Platform Capacity-Restricted | 1000 lb (450 kg) |
| Platform Capacity-Unrestricted | 500 lb (230 kg) |
| Platform Rotator | 180° Hydraulic |
| Drive Speed | 3 mph (4.8 km/h) |
| Gradeability | 40% |
| Turning Radius (Inside) Axles Retracted | 14 ft 8 in (4.47 m) |
| Turning Radius (Inside) Axles Extended | 12 ft (3.66 m) |
Dimensions 7 specs
| Platform Height | 110 ft (33.53 m) |
|---|---|
| Platform Size | 36 x 96 in (0.91 x 2.44 m) |
| Tailswing (Axles Extended) | 2 ft 10 in (86 cm) |
| Stowed Height | 9 ft 10 in (3.0 m) |
| Stowed Length | 38 ft 7 in (11.76 m) |
| Wheelbase | 10 ft (3.05 m) |
| Ground Clearance | 14.5 in (37 cm) |
Power / Engine 2 specs
| Diesel Engine | Deutz F4L912 70 hp (52 kW) |
|---|---|
| Auxiliary Power | 12 V-DC |
Hydraulics / Fluids 2 specs
| Fuel Tank Capacity | 26 gal (98.4 L) |
|---|---|
| Hydraulic Reservoir | 50 gal (190 L) |
