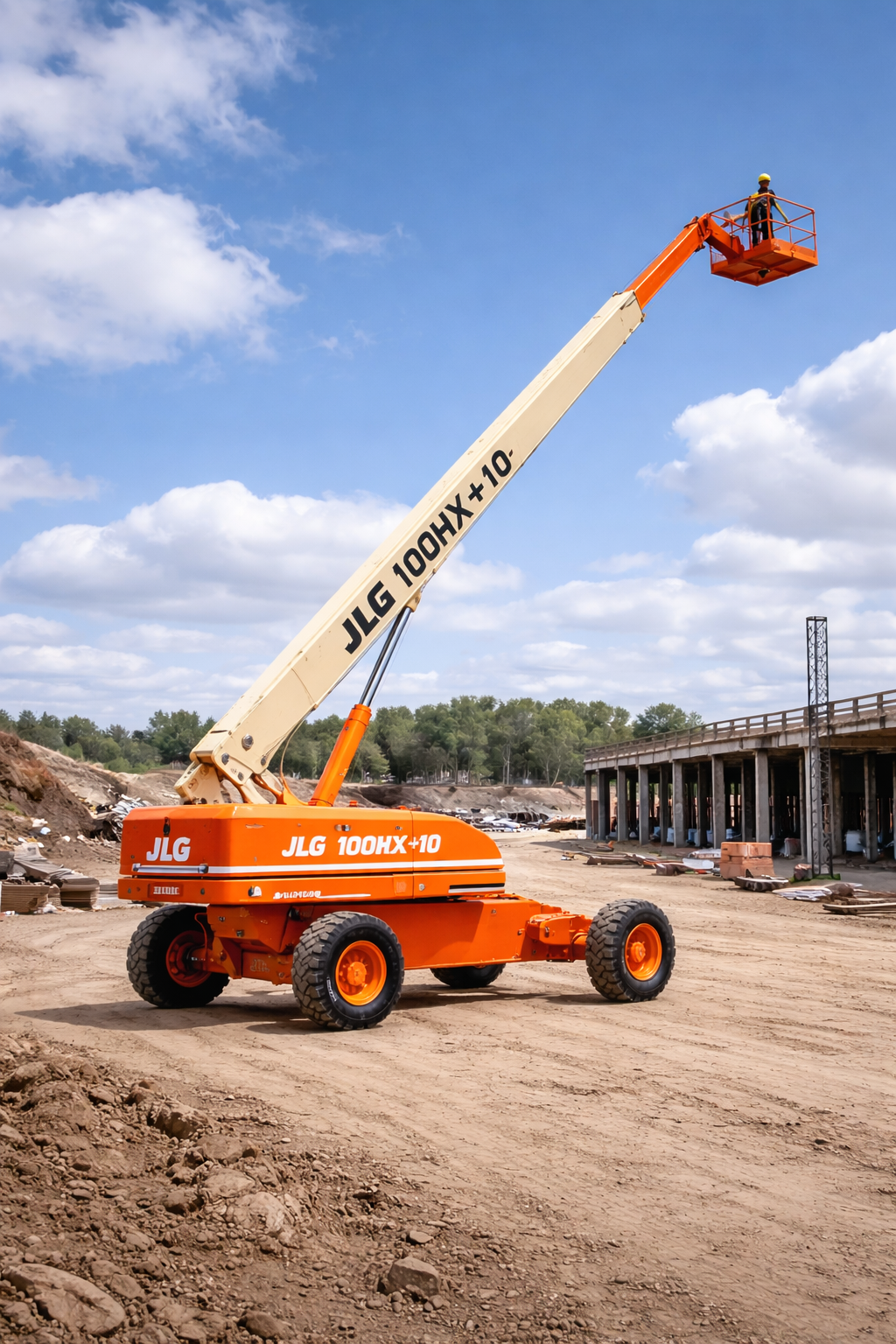

Telescopic Boom Lift · JLG
JLG 100HX+10 Specs
Quick-reference specifications for the JLG 100HX+10 boom lift, compiled from published specifications.
- Platform Capacity (Unrestricted)
- 507 lb230 kg
- Platform Height (100HX base)
- 100 ft30.48 m
- Working Height
- 112.5 ft34.2 m
- Gradeability
- 20%
Performance 12 specs
| Working Height | 112.5 ft (34.2 m) |
|---|---|
| Maximum Horizontal Reach | 60 ft (18.3 m) |
| Maximum Height | 110 ft |
| Platform Height (100HX base) | 100 ft (30.48 m) |
| Articulating Section | 10 ft |
| Swing | 360° continuous |
| Drive Speed | 1.73 mph (2.8 km/h) |
| Gradeability | 20% |
| Turning Radius (inside) – Axles Retracted | 14.25 ft (4.34 m) |
| Turning Radius (inside) – Axles Extended | 14.76 ft (4.50 m) |
| Turning Radius (outside) – Axles Retracted | 22.83 ft (6.96 m) |
| Turning Radius (outside) – Axles Extended | 24.02 ft (7.32 m) |
Dimensions 13 specs
| Platform Size | 3 ft (0.91 m) × 8 ft (2.44 m) |
|---|---|
| Platform Capacity (Unrestricted) | 507 lb (230 kg) |
| Platform Capacity (Restricted) | 992 lb (450 kg) |
| Overall Width – Axles Retracted | 8.5 ft (2.59 m) |
| Overall Width – Axles Extended | 10.83 ft (3.30 m) |
| Stowed Height | 9.84 ft (3 m) |
| Stowed Length (working) | 36.15 ft (11.02 m) |
| Wheelbase | 11 ft (3.35 m) |
| Ground Clearance | 0.92 ft (28 cm) |
| Tallswing (Axles Extended) | 2.82 ft (0.86 m) |
| Persons Capacity | 2 |
| Platform Length | 3 ft (0.91 m) |
| Platform Width | 8 ft (2.44 m) |
Weight 1 spec
| Gross Vehicle Weight | 36,960 lb (16,783 kg) |
|---|
Power / Engine 4 specs
| Engine Model | F4 912 |
|---|---|
| Engine Power | 70 hp (52 kW) |
| Fuel Tank Capacity | 25.9 gallons (98 L) |
| Auxiliary Power | 12 V DC |
Hydraulics / Fluids 2 specs
| Hydraulic Reservoir | 54.9 gallons (208 L) |
|---|---|
| Max Ground Bearing Pressure | 10.2 kg/cm² |
