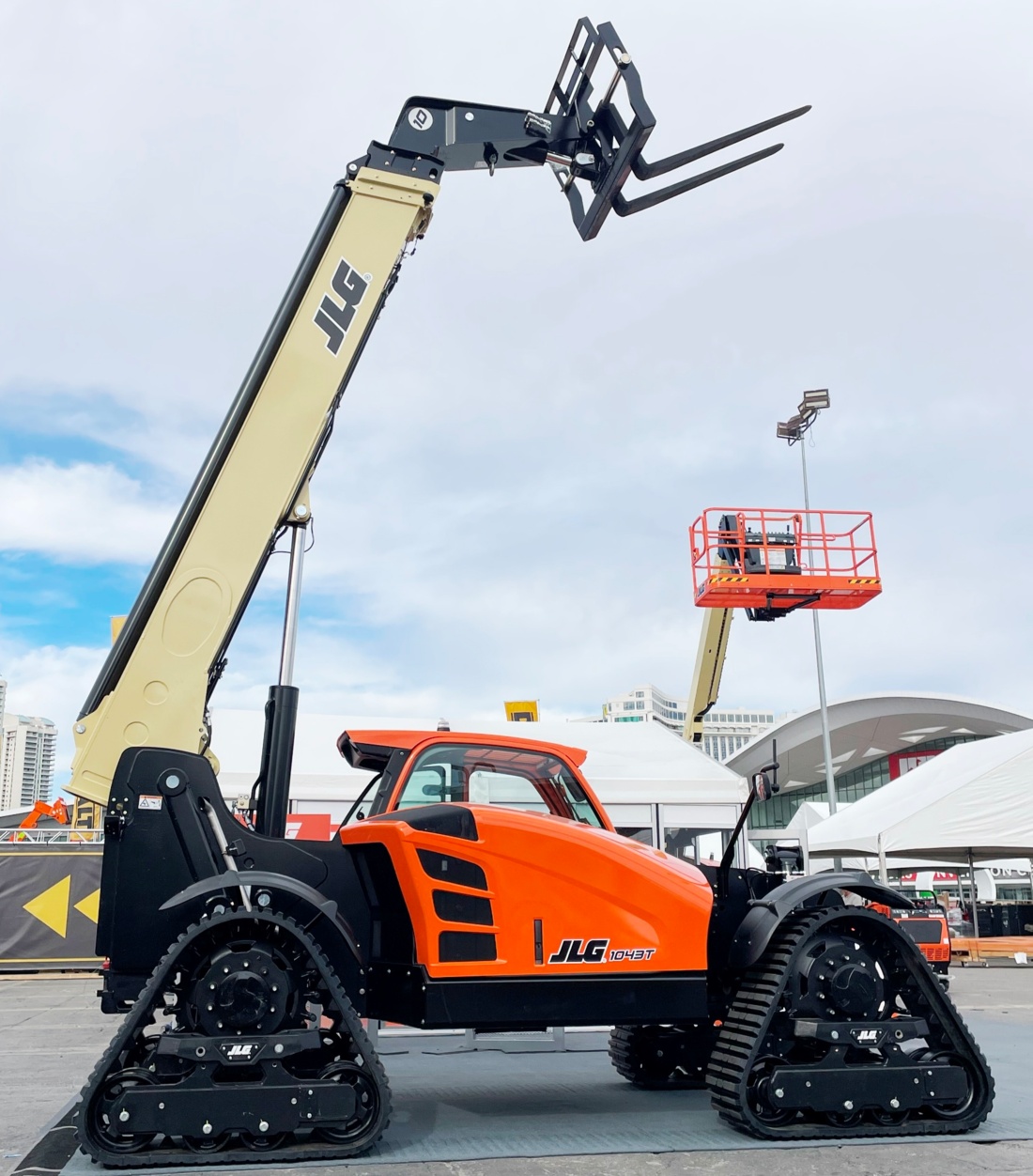

JLG 1043 Spec Sheet
Quick-reference specifications for the JLG 1043. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Rated Capacity: 10,000 lb
Maximum Lift Height: 43 ft
Maximum Forward Reach 30 ft: 5 in.
Operating Weight: 26,235 lb
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Rated Capacity | 10,000 lb |
|---|---|
| Maximum Lift Height | 43 ft |
| Maximum Forward Reach 30 ft | 5 in. |
| Frame Leveling | 10° |
| Top Travel Speed (4-Speed) | 19 mph |
| Drawbar Pull (loaded) | 24,912 lb |
| Outside Turning Radius | 12 ft |
| Truss Boom 3 ft (winch), 4,000 lb Capacity 0.9 m, | 1,814 kg Capacity |
| Fork Mounted Work Platform 8 ft, | 1,000 lb Capacity |
| Material Handling Arm | 4,000 lb Capacity |
Dimensions
| Load at Max Height | 7,000 lb |
|---|
Weights & Electrical
| Load at Max Reach | 2,700 lb |
|---|---|
| Retracted | 13 sec |
| Operating Weight | 26,235 lb |
| Displacement | 232 cu in. |
| notification. This machine meets or exceeds applicable OSHA Regulations in | 29 CFR |
Powertrain & Systems
| Gross Power Basic | 110 hp |
|---|---|
| Transmission Powershift 4-speed forward and | 3-speed reverse. |
| Power steering with manual backup. Operator selectable 4-wheel circle, 4-wheel crab, | 2-wheel front. |
| JLG Industries, Inc. | 1 JLG Drive |
Hydraulics & Capacities
| Fuel Tank Capacity | 38.3 gal |
|---|---|
| Capacity | 40 gal |
