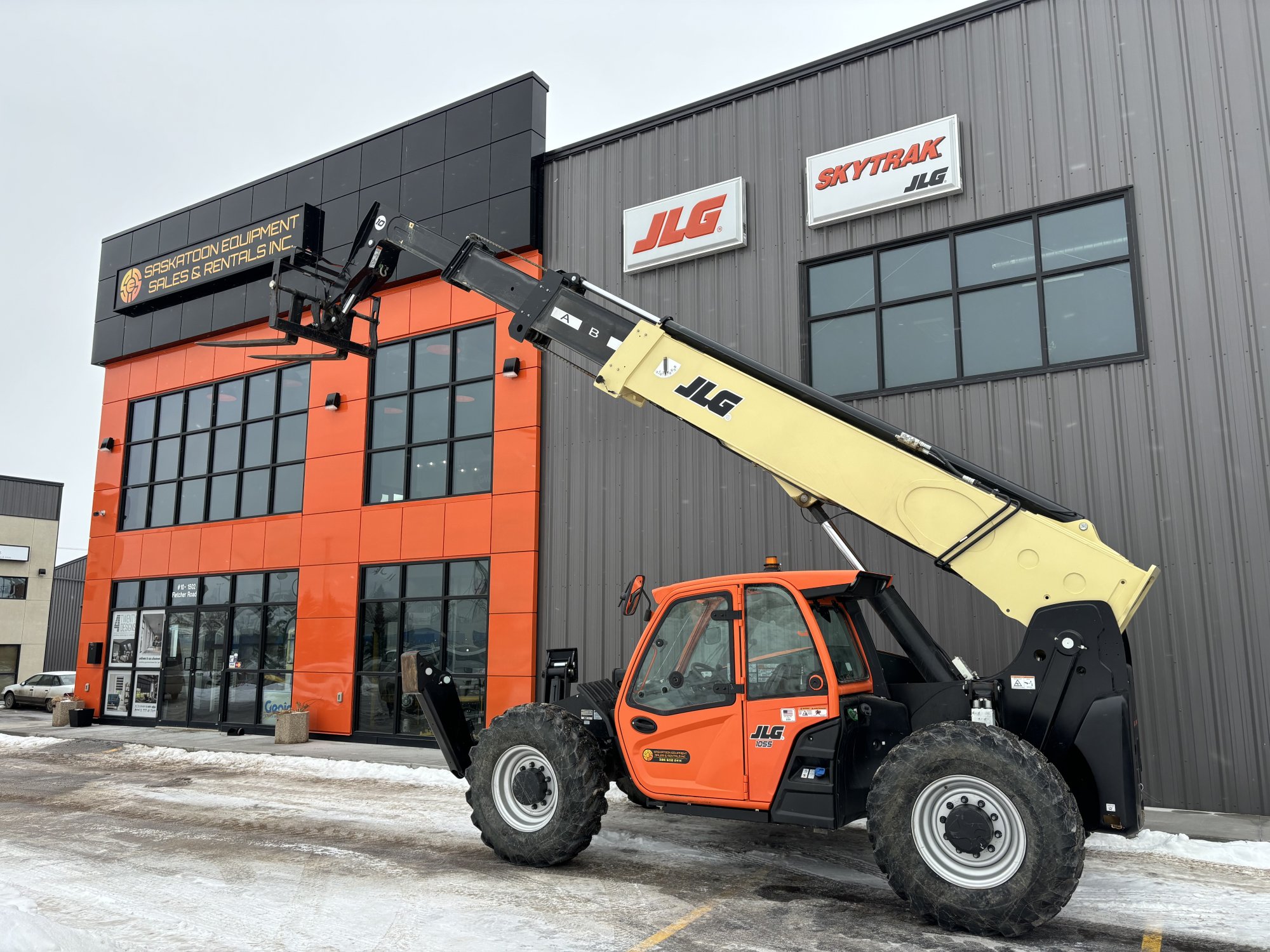

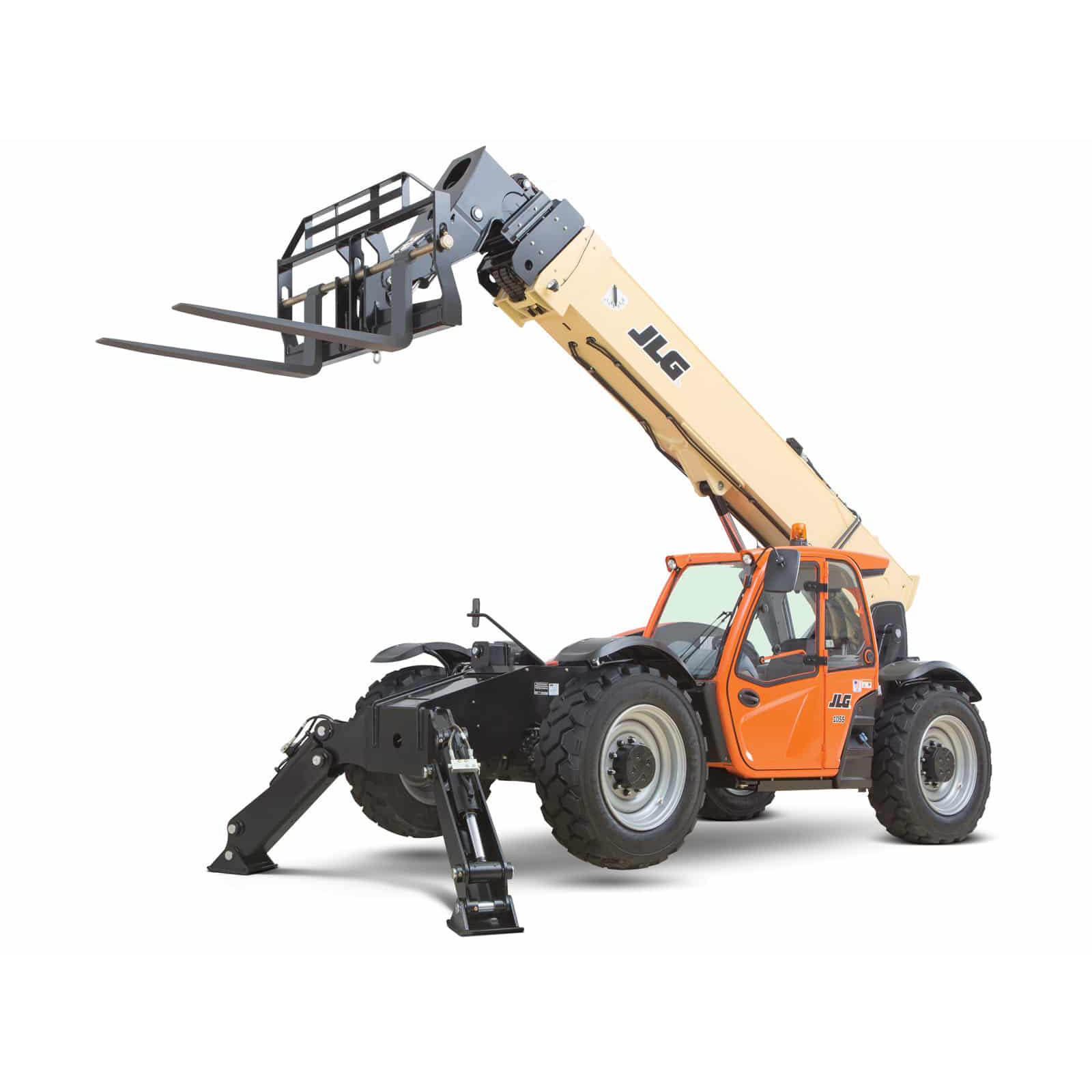

JLG 1055 Spec Sheet
Quick-reference specifications for the JLG 1055. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Rated Capacity: 4,536 kg
Maximum Lift Height: 16.76 m
Maximum Forward Reach: 12.8 m
Operating Weight: 14,315 kg
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Rated Capacity | 4,536 kg |
|---|---|
| Maximum Lift Height | 16.76 m |
| Maximum Forward Reach | 12.8 m |
| Frame Leveling | 10° |
| Top Travel Speed (4-Speed) | 32 kph |
| Drawbar Pull (loaded) | 113 kN |
| Outside Turning Radius | 4.3 m |
| Capacity | 184 L |
| Truss Boom 0.9 m, | 1,814 kg Capacity |
| Fork Mounted Work Platform 1.8 m, | 2,722 kg Capacity |
| Pipe Grapple 2.4 m, | 2,722 kg Capacity |
| Material Handling Arm | 1,814 kg Capacity |
Dimensions
| Load at Max Height | 2,268 kg |
|---|
Weights & Electrical
| Load at Max Reach | 1,361 kg |
|---|---|
| Retracted | 15 sec |
| Operating Weight | 14,315 kg |
| Displacement | 3.8 L |
| notification. This machine meets or exceeds applicable OSHA Regulations in | 29 CFR |
Powertrain & Systems
| Gross Power Basic | 96 kW |
|---|---|
| Transmission Powershift 4-speed forward and | 3-speed reverse. |
| Axles Trunnion mounted planetary | 55° steer axles. Integral steer cylinder. |
| Hydraulic power steering with manual backup. Operator selectable 4-wheel circle, 4-wheel crab, | 2-wheel front. |
| JLG Industries, Inc. | 1 JLG Drive |
Hydraulics & Capacities
| Fuel Tank Capacity | 145 L |
|---|
