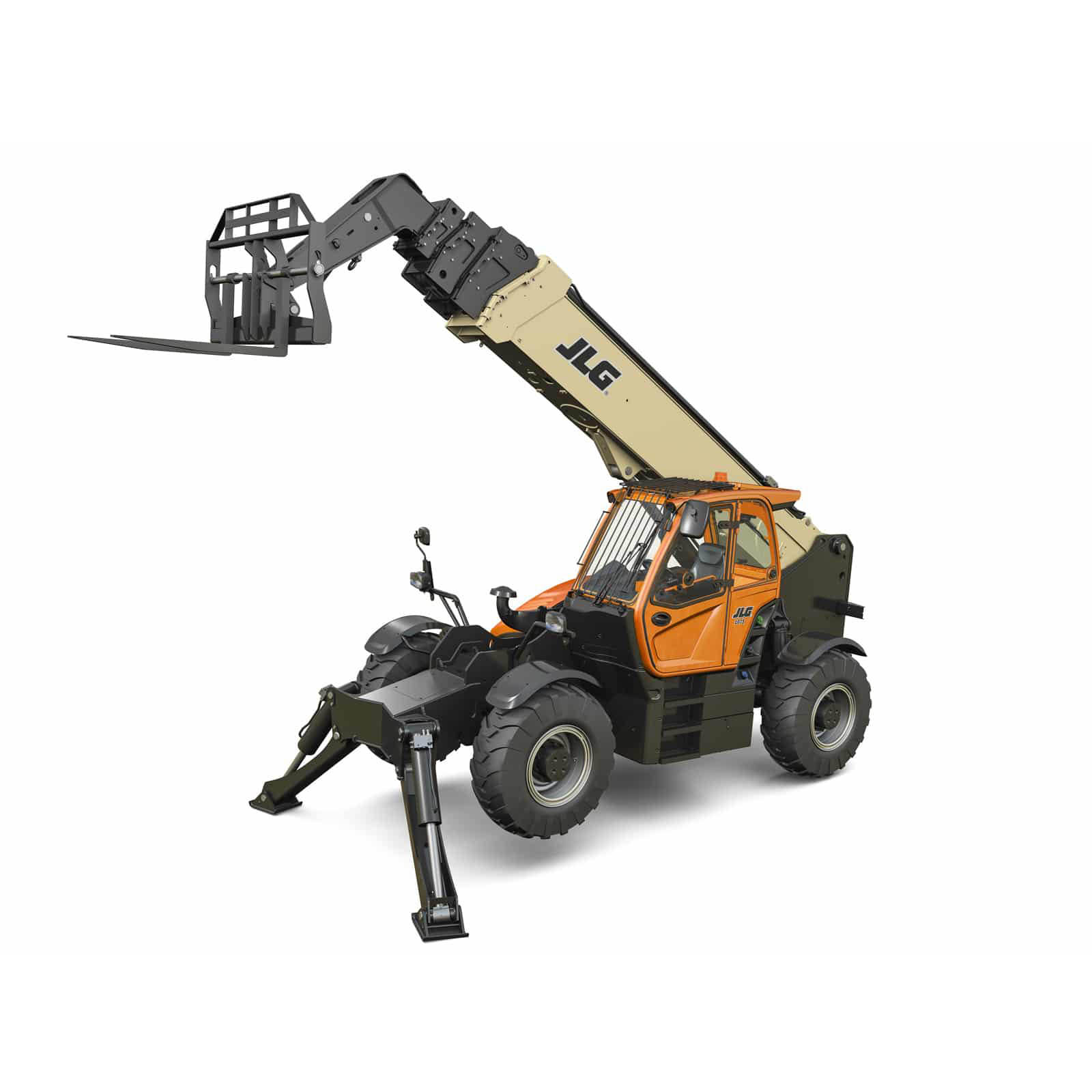

JLG 1075 Specs
Quick-reference specifications for the JLG 1075 telehandler, taken from the manufacturer’s spec sheet.
- Rated Capacity
- 10,000 lb4,536 kg
- Maximum Lift Height
- 75 ft22.86 m
- Maximum Forward Reach
- 60 ft18.29 m
- Operating Weight
- 43,600 lb19,780 kg
Performance 10 specs
| Rated Capacity | 10,000 lb (4,536 kg) |
|---|---|
| Maximum Forward Reach | 60 ft (18.29 m) |
| Load at Max Reach | 2,100 lb (950 kg) |
| Frame Leveling | 8° |
| Lift Speed (boom retracted) – Down | 22 sec |
| Boom Speed – Extended | 30 sec |
| Boom Speed – Retracted | 22 sec |
| Top Travel Speed (4-Speed) | 17 mph (28 kph) |
| Drawbar Pull (loaded) | 22,500 lb (100 kN) |
| Outside Turning Radius | 160 in (4.1 m) |
Dimensions 2 specs
| Maximum Lift Height | 75 ft (22.86 m) |
|---|---|
| Load at Max Height | 6,000 lb (2,720 kg) |
Weight 1 spec
| Operating Weight | 43,600 lb (19,780 kg) |
|---|
Power / Engine 4 specs
| No. of Cylinders | 4 |
|---|---|
| Displacement | 275 cu in (4.5 L) |
| Gross Power Basic | 160 hp (119 kW) |
| Maximum Torque @ 1500 rpm 460 lb-ft | 624 Nm |
Hydraulics / Fluids 2 specs
| Fuel Tank Capacity | 43 gal (163 L) |
|---|---|
| Hydraulic System-Implement – Capacity | 90 gal (342 L) |
