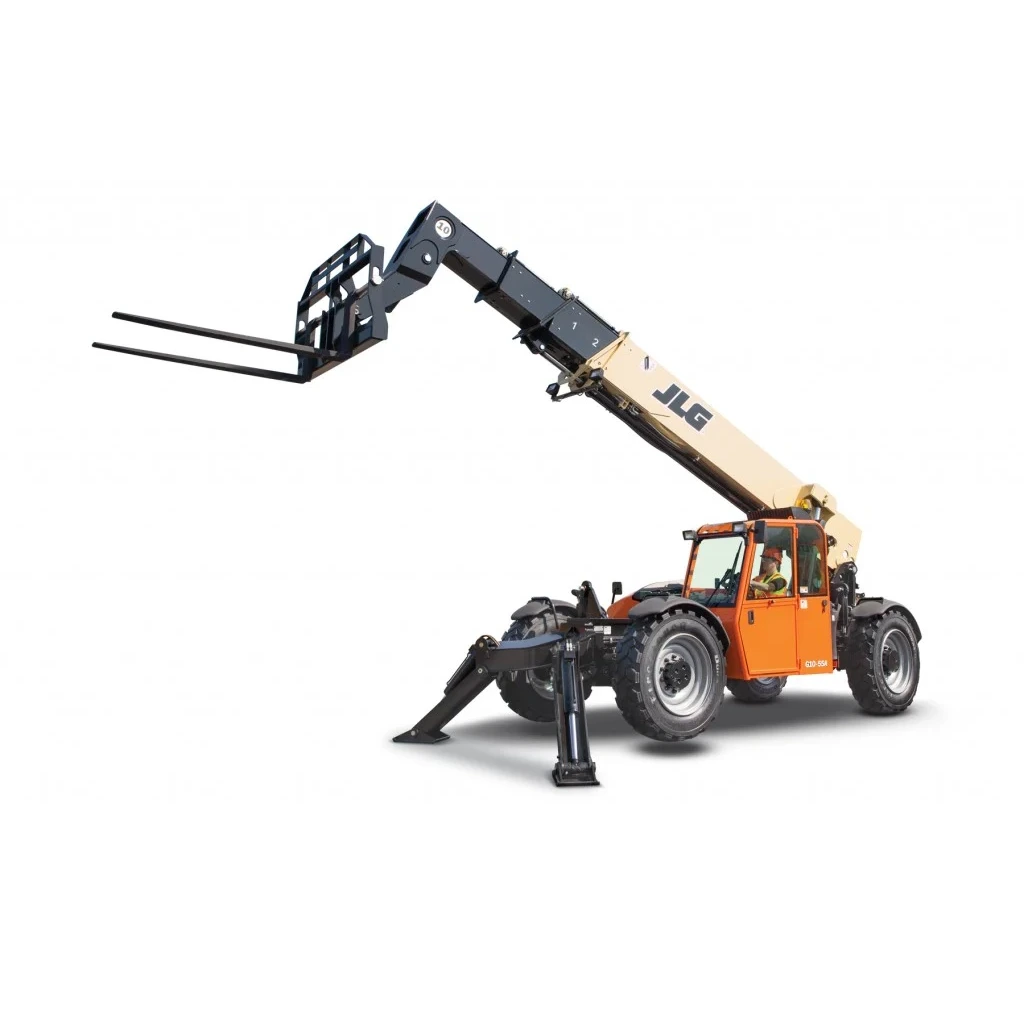

JLG G10-55A AccuPlace Specs

Quick-reference specifications for the JLG G10-55A AccuPlace telehandler, compiled from published specifications.

Rated Capacity (at 24 in load center): 10,000 lb4,536 kg
Lift Capacity at Maximum Height: 5,000 lb2,268 kg
Maximum Lift Height: 55 ft16.76 m
Maximum Forward Reach (to 24 in load center): 42 ft12.8 m

Performance 11 specs

Rated Capacity (at 24 in load center)	10,000 lb (4,536 kg)
Maximum Lift Height	55 ft (16.76 m)
Maximum Forward Reach (to 24 in load center)	42 ft (12.8 m)
Lift Capacity at Maximum Height	5,000 lb (2,268 kg)
Lift Capacity at Maximum Reach	3,000 lb (1,361 kg)
Lift Speed (boom retracted) – Down	15.8 sec
Boom Speed – Extend	17.3 sec
Boom Speed – Retract	16.8 sec
Travel Speed Forward	20 mph (32 km/h)
Frame Leveling	10 degrees
Drawbar Pull (loaded)	20,000 lb (9,072 kg)

Dimensions 6 specs

Length (less forks)	240 in (6.10 m)
Width	101.3 in (2.57 m)
Height	101 in (2.57 m)
Wheelbase	144 in (3.66 m)
Ground Clearance	18 in (457 mm)
Outside Turning Radius	168 in (4.27 m)

Weight 1 spec

Operating Weight (with 48 in carriage and forks)	34,400 lb (15,604 kg)

Power / Engine 5 specs

Fuel Type	No. 2 Diesel
Cylinders	4
Displacement	276 cu in (4.5 L)
Rated Speed	2,400 rpm
Fuel Tank Capacity	38 gal (144 L)

Hydraulics / Fluids 3 specs

Hydraulic System Fluid Capacity	57 gal (215.75 L)
Electrical System Voltage	12 V
Alternator Supplied Amperage	65 amps
