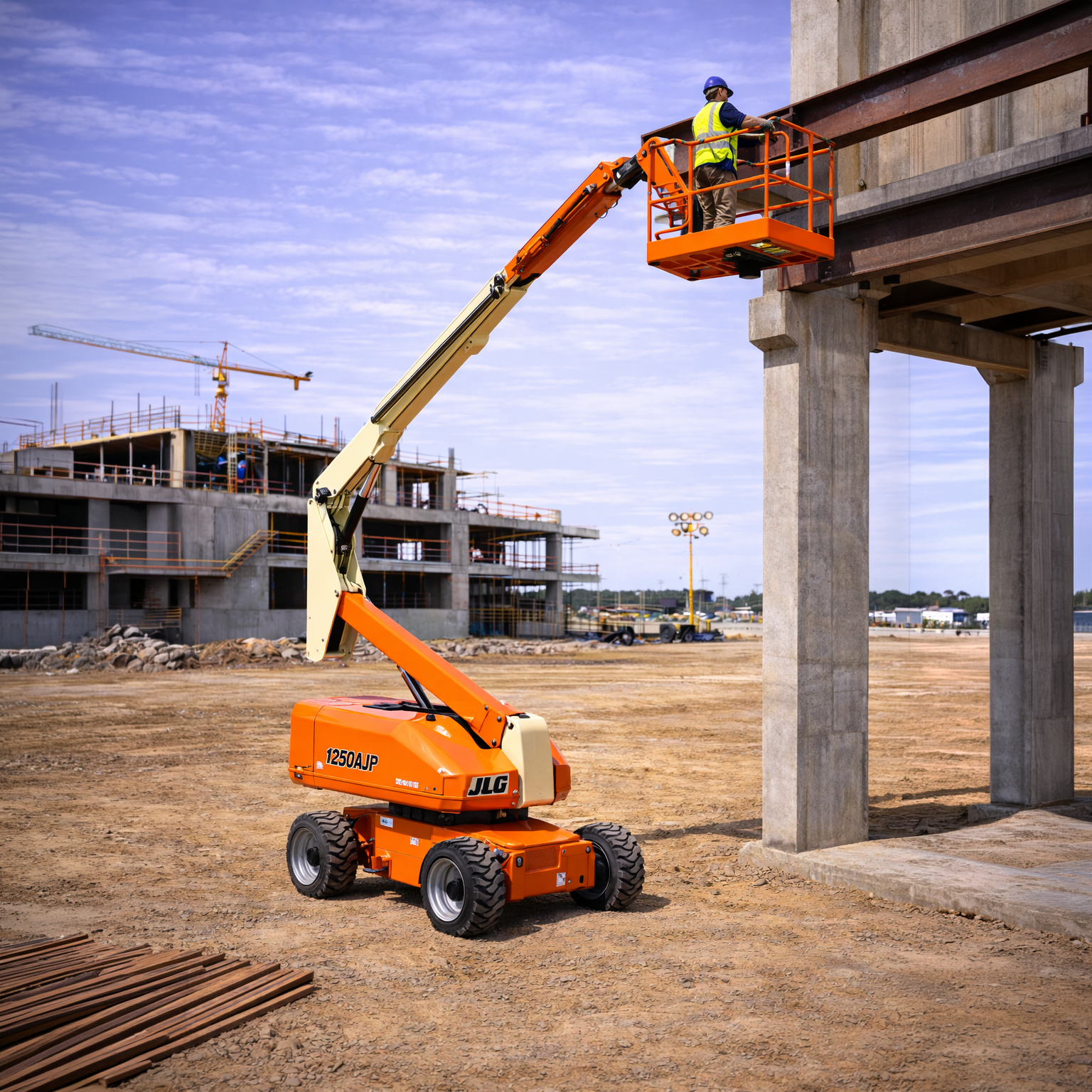

JLG 1250AJP Spec Sheet
Quick-reference specifications for the JLG 1250AJP. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Working Height: 40.30 m
Platform Height: 38.30 m
B. Overall Width Axles Retracted: 2.49 m
D. Stowed Height: 3.05 m
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Platform Height | 38.30 m |
|---|---|
| Working Height | 40.30 m |
| Up and Over Height | 18.44 |
| Swing | 360° Continuous |
| Gradeability | 45% |
| C. Tailswing | 0.91 m |
Dimensions
| A. Platform Size 0.91 x | 2.44 m |
|---|---|
| B. Overall Width Axles Retracted | 2.49 m |
| Overall Width Axles Extended | 3.81 m |
| D. Stowed Height | 3.05 m |
| Overall Length Jib Deployed | 14.48 m |
Weights & Electrical
| Horizontal Reach | 19.25 m |
|---|---|
| Weight | 21,000 kg |
| Axles Retracted | 4.39 m |
| Axles Retracted | 6.86 m |
| prior notification. This machine meets or exceeds AS/NZS 1418.10 | 2011 as originally |
| manufactured for intended applications. | 1250AJP |
Powertrain & Systems
| Drive Speed – Lowered | 5.2 km/h |
|---|---|
| Axles Extended | 2.44 m |
| Axles Extended | 5.89 m |
| Axle | 30 cm |
Hydraulics & Capacities
| Fuel Tank Capacity | 117 L |
|---|
