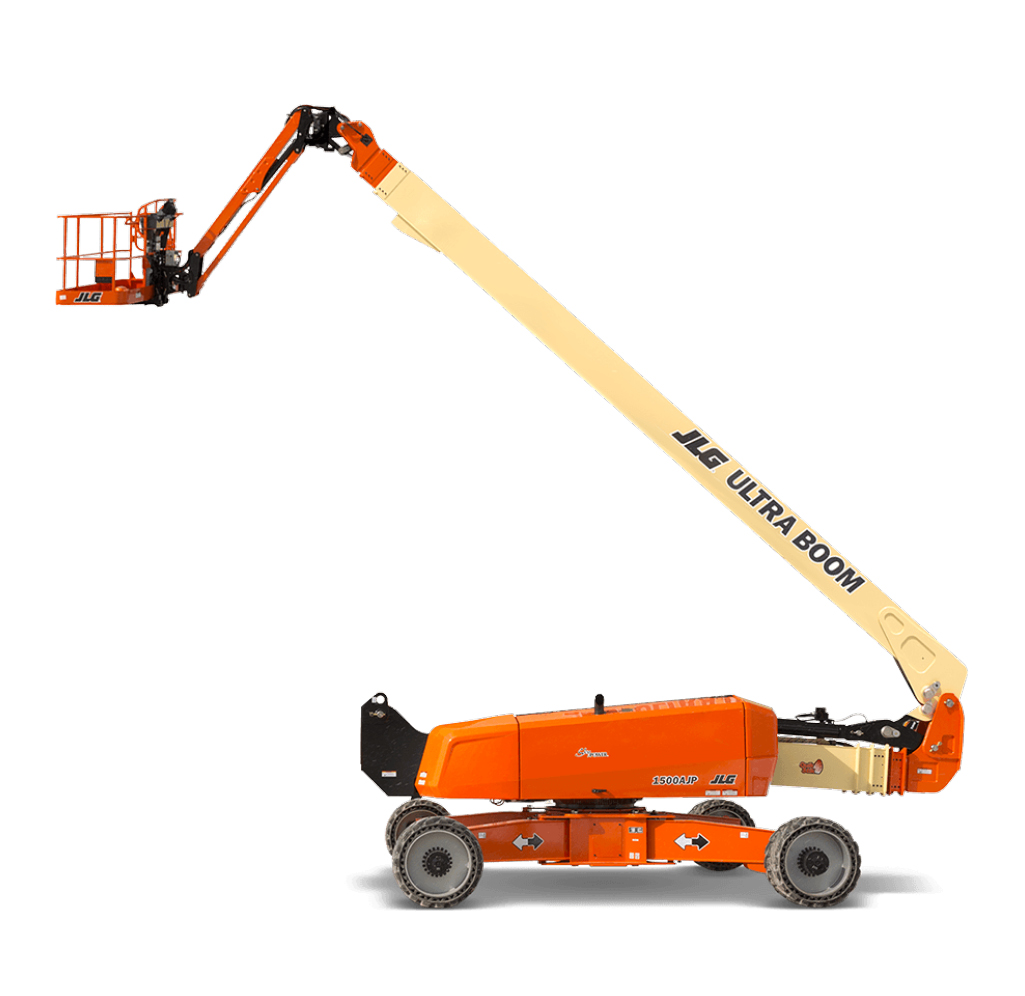

JLG 1500AJP Specs
Quick-reference specifications for the JLG 1500AJP boom lift, taken from the manufacturer’s spec sheet.
- Platform Capacity (Restricted)
- 1,000 lb454 kg
- Platform Height
- 150 ft45.72 m
- Weight
- 57,380 lb26,027 kg
- Gradeability
- 40%
Performance 9 specs
| Horizontal Outreach | 75 ft (22.86 m) |
|---|---|
| Up and Over Clearance | 60 ft 4 in (18.4 m) |
| Swing | 360 Degrees Continuous |
| Platform Capacity (Restricted) | 1,000 lb (454 kg) |
| Platform Capacity (Unrestricted) | 600 lb (272 kg) |
| Jib Range of Articulation | 131 Degrees (+75, -55) |
| Drive Speed | 2.8 mph (4.5 km/h) |
| Gradeability | 40% |
| Tilt Cut Out | 5 Degrees |
Dimensions 11 specs
| Platform Height | 150 ft (45.72 m) |
|---|---|
| Up and Over Height | 60 ft 4 in (18.4 m) |
| Jib Length | 8 ft (2.4 m) |
| Platform Width | 36 in (0.91 m) |
| Platform Length | 96 in (2.44 m) |
| Machine Width – Axles Extended | 16 ft 6 in (5 m) |
| Machine Width – Axles Retracted | 8 ft 1.5 in (2.49 m) |
| Tailswing | 2 ft 5 in (.7 m) |
| Machine Height | 10 ft 2 in (3.1 m) |
| Machine Length – Stowed | 39 ft 8 in (12.09 m) |
| Machine Length – Overall | 49 ft 8 in (15.1 m) |
Weight 2 specs
| Weight | 57,380 lb (26,027 kg) |
|---|---|
| Max. Ground Bearing Pressure | 122.5 psi (8.4 kg/cm²) |
Power / Engine 1 spec
| Diesel Engine – Deutz TCD 3.6L Tier IV F | 99.8 hp (74.4 kW) |
|---|
Hydraulics / Fluids 2 specs
| Fuel Tank Capacity | 45 gal (170 L) |
|---|---|
| Hydraulic System – Capacity | 93 gal (352 L) |
