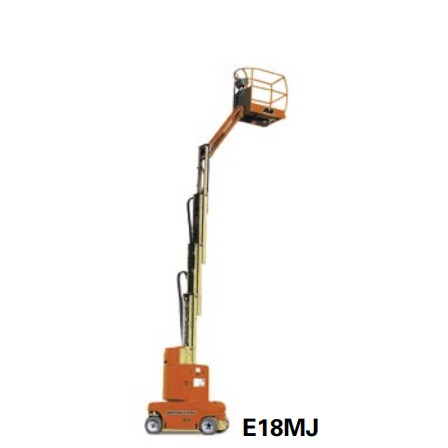

JLG E18MJ Specs
Quick-reference specifications for the JLG E18MJ vertical lift, taken from the manufacturer’s spec sheet.
- Platform Capacity
- 500 lb227 kg
- Platform Height
- 18 ft 1 in5.51 m
- Weight
- 5,952 lb2,700 kg
- Gradeability
- 20%
Performance 7 specs
| Horizontal Outreach | 9 ft (2.74 m) |
|---|---|
| Platform Capacity | 500 lb (227 kg) |
| Drive Speed Stowed | 2.5 mph (4.0 kmph) |
| Drive Speed Elevated | 0.43 mph (0.7 kmph) |
| Gradeability | 20% |
| Turning Radius (Inside) | 0 in (0 m) |
| Turning Radius (Outside) | 5 ft 9 in (1.75 m) |
Dimensions 9 specs
| Platform Height | 18 ft 1 in (5.51 m) |
|---|---|
| Up and Over Height | 14 ft (4.27 m) |
| Stowed Height | 6 ft 6.5 in (1.99 m) |
| Stowed Width | 39 in (99 cm) |
| Stowed Length | 9 ft 6 in (2.89 m) |
| Tailswing | 4 in (10 cm) |
| Wheelbase | 4 ft 3 in (1.3 m) |
| Ground Clearance | 3 in (8 cm) |
| Tire Size | 16 x 5 x 10.5 |
Weight 2 specs
| Weight | 5,952 lb (2,700 kg) |
|---|---|
| Ground Bearing Pressure | 178 psi (12.3 kg/cm²) |
Power / Engine 2 specs
| Battery | 24 V, 300 amp-hr |
|---|---|
| Battery Charger – Output | 40 amps |
