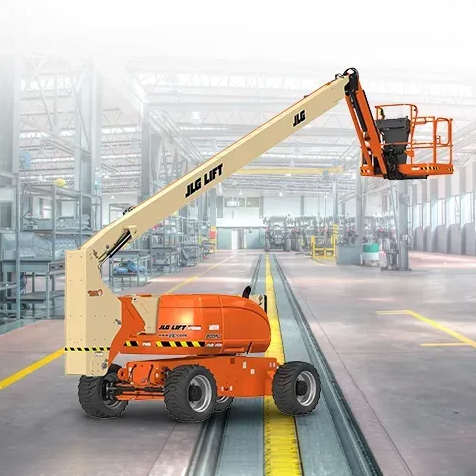

JLG 800AJ Specs
Quick-reference specifications for the JLG 800AJ boom lift, taken from the manufacturer’s spec sheet.
- Platform Capacity
- 500 lb227 kg
- Platform Height
- 80 ft24.38 m
- Weight
- 34,738 lb15,757 kg
- Gradeability 2WD / 4WD
- 30% / 45%
Performance 7 specs
| Horizontal Outreach | 51 ft 10 in (15.8 m) |
|---|---|
| Platform Capacity | 500 lb (227 kg) |
| Swing | 360 Degrees Continuous |
| Jib Range of Articulation | 130 Degrees (+70, –60) |
| Drive Speed | 3.0 mph (4.8 km/h) |
| Gradeability 2WD / 4WD | 30% / 45% |
| Tilt Cut Out | 4 Degrees |
Dimensions 11 specs
| Platform Height | 80 ft (24.38 m) |
|---|---|
| Up and Over Height | 32 ft 1 in (9.78 m) |
| Jib Length | 6 ft (1.83 m) |
| Platform Width | 36 in (0.91 m) |
| Platform Length | 96 in (2.44 m) |
| Machine Width | 8 ft 2 in (2.48 m) |
| Tailswing | 2 ft 6 in (76 cm) |
| Machine Height | 9 ft 10 in (3.0 m) |
| Machine Length | 36 ft 6 in (11.13 m) |
| Wheelbase | 10 ft (3.05 m) |
| Ground Clearance | 11 in (28 cm) |
Weight 2 specs
| Weight | 34,738 lb (15,757 kg) |
|---|---|
| Max. Ground Bearing Pressure | 76 psi (5.3 kg/cm²) |
Power / Engine 3 specs
| Dual Fuel – Ford MSG 425DF | 84 hp (62.6 kW) |
|---|---|
| Diesel Fuel – Deutz D2.9L4 Tier 4 Final | 67 hp (50 kW) |
| Auxiliary Power | 12 V DC |
Hydraulics / Fluids 2 specs
| Fuel Tank Capacity | 39 gal (147.6 L) |
|---|---|
| Hydraulic System – Capacity | 40 gal (151.4 L) |
