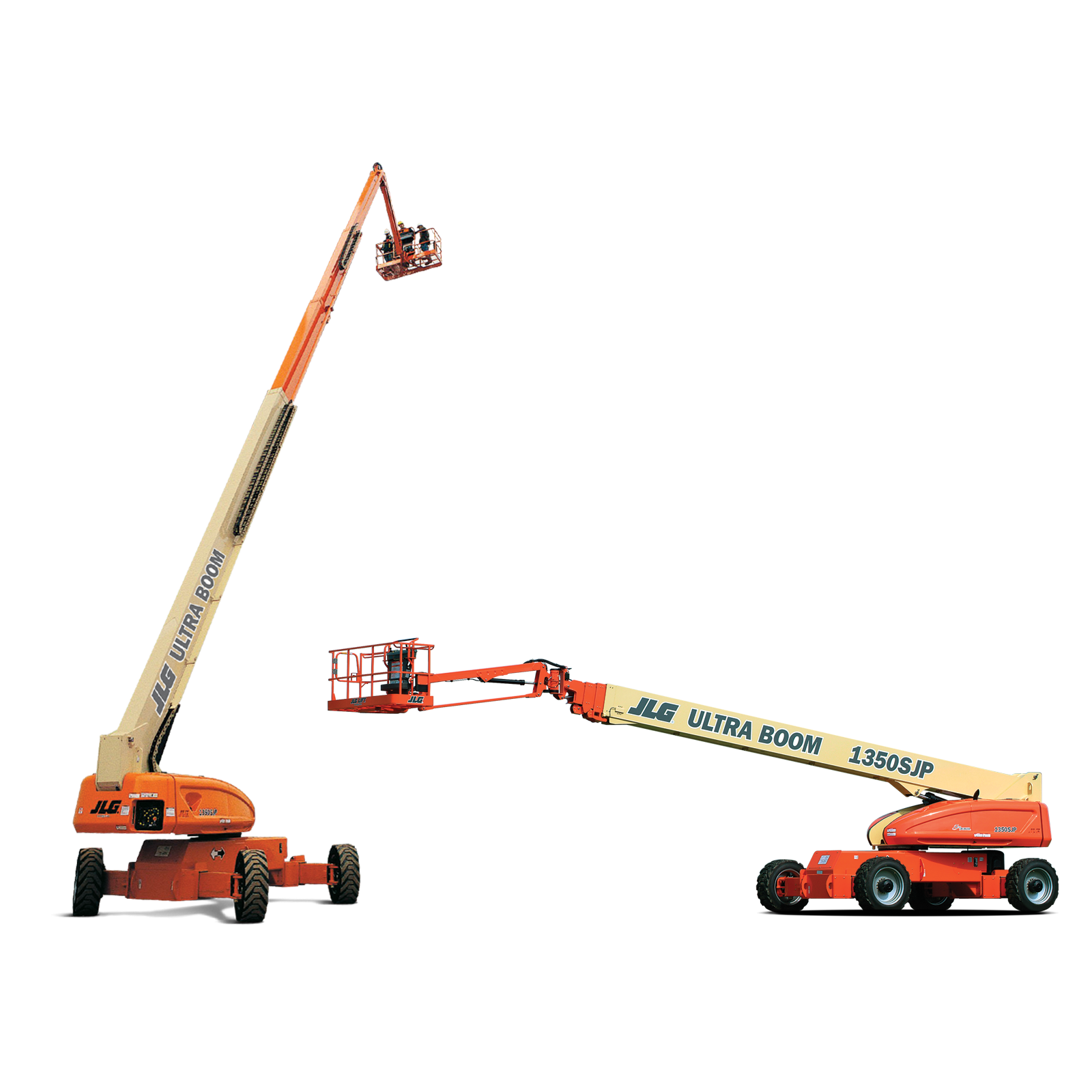

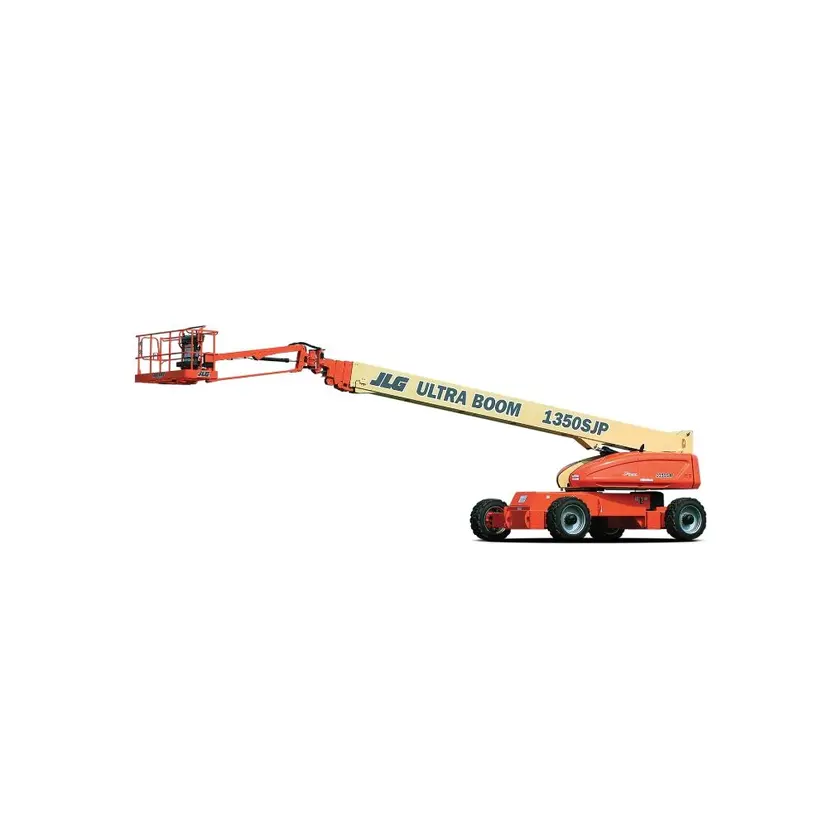

Telescopic Boom Lift · JLG
JLG 1350SJP Specs
Quick-reference specifications for the JLG 1350SJP boom lift, from the manufacturer’s spec sheet and published specifications.
- Platform Capacity (Restricted)
- 1,000 lb454 kg
- Platform Height
- 135 ft 6 in41.30 m
- Operating Weight
- 45,000 lb20,411 kg
- Gradeability
- 45%
Performance 17 specs
| Comprimento do Jib | 2,44 m |
|---|---|
| Abrangência de Articulação do Jib | 130º (+75, -55) |
| Rampa máxima | 45% |
| Motor Diesel – Deutz TD2.9L4 Tier | 74.2 hp (55,4 kW) |
| Platform Height | 135 ft 6 in (41.30 m) |
| Horizontal Outreach | 80 ft (24.38 m) |
| Swing | 360° Continuous |
| Platform Capacity (Restricted) | 1,000 lb (454 kg) |
| Platform Capacity (Unrestricted) | 500 lb (227 kg) |
| Platform Rotator | 180° |
| Jib Length | 8 ft (2.44 m) |
| Jib Range of Articulation | 130° (+75°/-55°) |
| Drive Speed | 3.25 mph (5.2 km/h) |
| Gradeability | 45% |
| Ground Bearing Pressure | 107 psi (7.52 kg/cm²) |
| Tilt Cut Out | 5° |
| Time to Full Height | 95 seconds |
Dimensions 16 specs
| Platform Size | 36 x 96 in (910 x 2440 mm) |
|---|---|
| Platform Size (Optional) | 36 x 72 in (910 x 1830 mm) |
| Platform Width | 36 in (91 cm) |
| Platform Length | 96 in (2.44 m) |
| Overall Width (Axles Retracted) | 98 in (2490 mm) |
| Overall Width (Axles Extended) | 150 in (3810 mm) |
| Tailswing | 66 in (1670 mm) |
| Stowed Height | 120 in (3050 mm) |
| Overall Length (Jib Stowed) | 467 in (11860 mm) |
| Overall Length (Jib Deployed) | 586.25 in (14890 mm) |
| Wheelbase | 150 in (3810 mm) |
| Ground Clearance (Axle) | 12 in (300 mm) |
| Ground Clearance (Chassis) | 25.5 in (650 mm) |
| Transport Length | 11.86 m |
| Transport Width | 2.49 m |
| Transport Height | 3.05 m |
Weight 6 specs
| Operating Weight | 45,000 lb (20,411 kg) |
|---|---|
| Gross Machine Weight (Platform Empty) | 44,750 lb (20,298 kg) |
| Platform Weight (36×96) | 245 lb (111 kg) |
| Platform Weight (36×72) | 195 lb (89 kg) |
| Boom Weight (Complete) | 11,850 lb (5375 kg) |
| Counterweight | 8,500 lb (3856 kg) |
Power / Engine 11 specs
| Engine Model (Standard) | Deutz TD 2.9 L4 |
|---|---|
| Engine Model (Optional) | Deutz TD 3.6 L4 |
| Gross Horsepower (TD 2.9 L4) | 74.2 hp (55.4 kW) |
| Gross Horsepower (TD 3.6 L4) | 74 hp (55.4 kW) |
| Power Measured @ | 2600 rpm |
| Peak Torque (TD 2.9 L4) | 192 lb·ft (260 Nm) |
| Peak Torque (TD 3.6 L4) | 243 lb·ft (330 Nm) |
| Displacement (TD 2.9 L4) | 177 cu in (2.9 L) |
| Displacement (TD 3.6 L4) | 220 cu in (3.6 L) |
| Number of Cylinders | 4 |
| Emission Level | Tier |
Hydraulics / Fluids 3 specs
| Hydraulic System Capacity | 55 gal (208.2 L) |
|---|---|
| Fuel Tank Capacity | 31 gal (117.35 L) |
| Tire Size (Optional) | 445/65 Solid |
