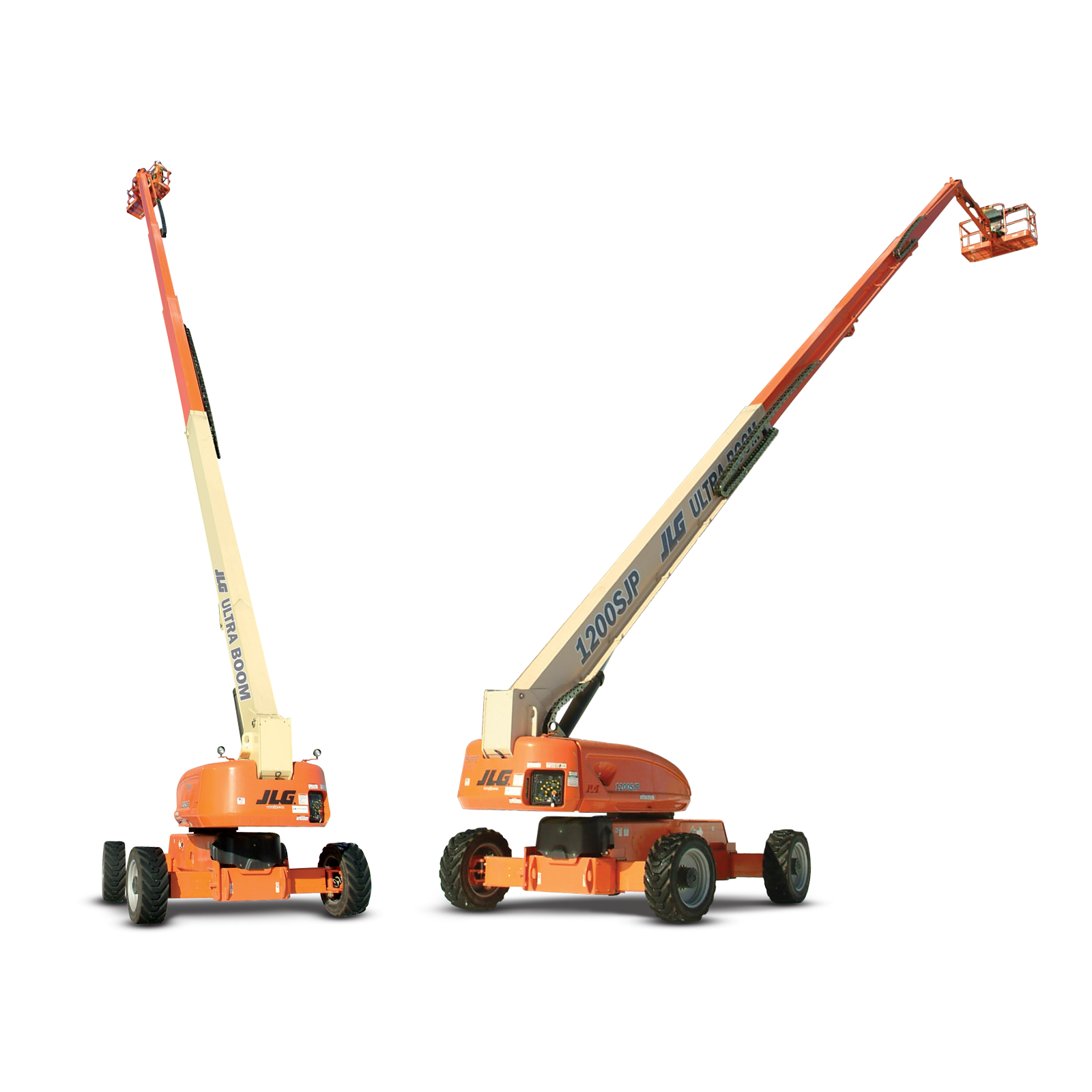

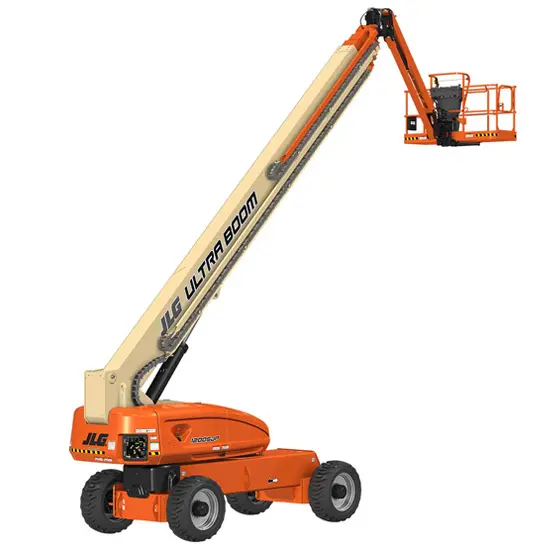

JLG 1200SJP Spec Sheet
Quick-reference specifications for the JLG 1200SJP. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Platform Capacity-Restricted: 450 kg
Working Height: 38.58 m
Platform Height: 36.58 m
Horizontal Outreach: 22.86 m
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Platform Height | 36.58 m |
|---|---|
| Working Height | 38.58 m |
| Horizontal Outreach | 22.86 m |
| Swing | 360° Continuous |
| Platform Capacity-Restricted | 450 kg |
| Platform Capacity-Unrestricted | 230 kg |
| Gradeability | 45% |
| C. Tailswing | 1.67 m |
Dimensions
| A. Platform Size 0.91 x | 2.44 m |
|---|---|
| B. Overall Width Axles Retracted | 2.49 m |
| Overall Width Axles Extended | 3.81 m |
| D. Stowed Height | 3.05 m |
| Overall Length Jib Deployed | 13.69 m |
Weights & Electrical
| Axles Retracted | 4.39 m |
|---|---|
| Axles Retracted | 6.86 m |
| prior notification. This machine meets or exceeds AS/NZS 1418.10 | 2011 as originally |
| manufactured for intended applications. | 1200SJP |
Powertrain & Systems
| Axles Extended | 2.44 m |
|---|---|
| Axles Extended | 5.89 m |
| Diesel Engine Deutz TD2011LO40 Tier | 4i |
| Axle | 30 cm |
Hydraulics & Capacities
| Platform Rotator | 180° Hydraulic |
|---|---|
| Fuel Tank Capacity | 117 L |
