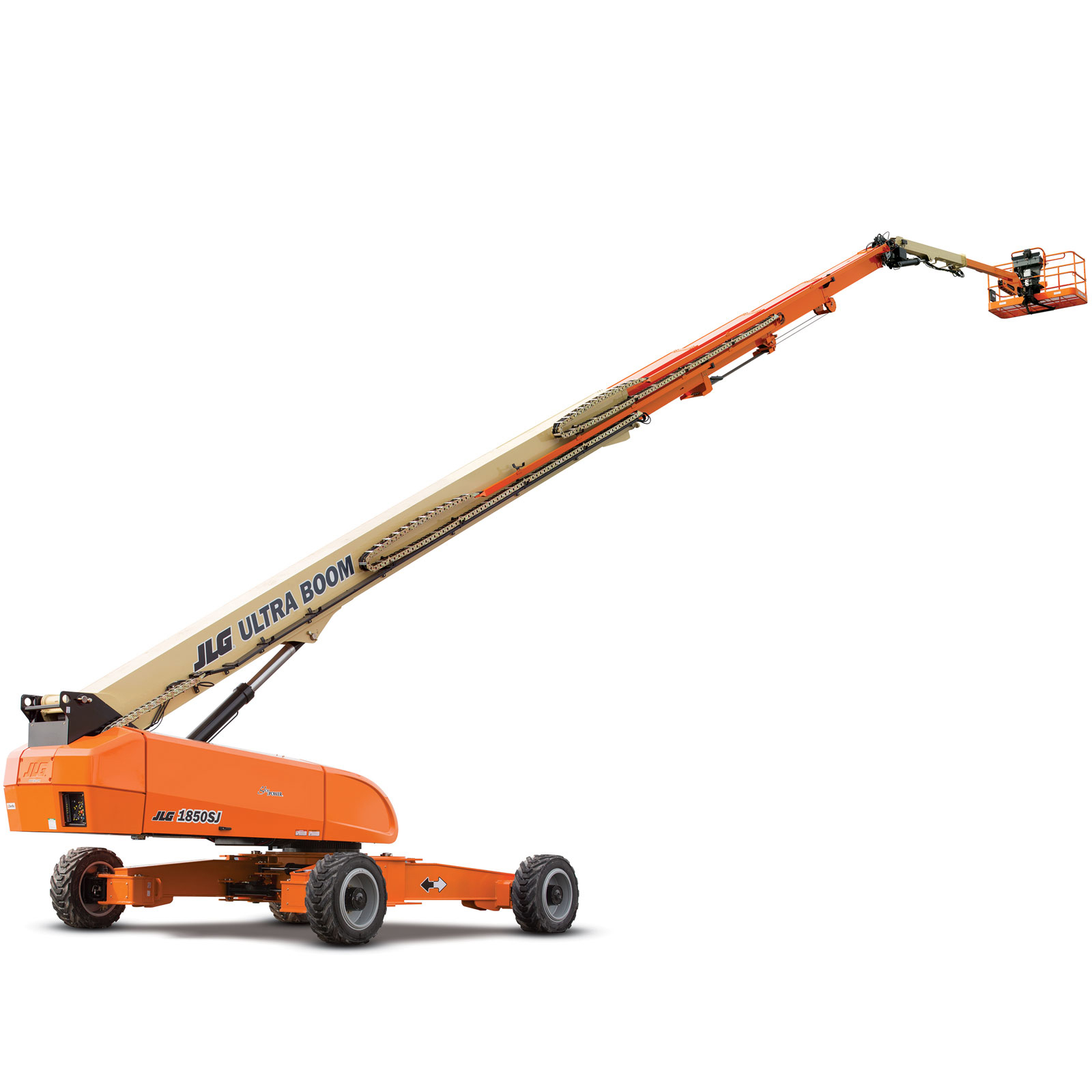

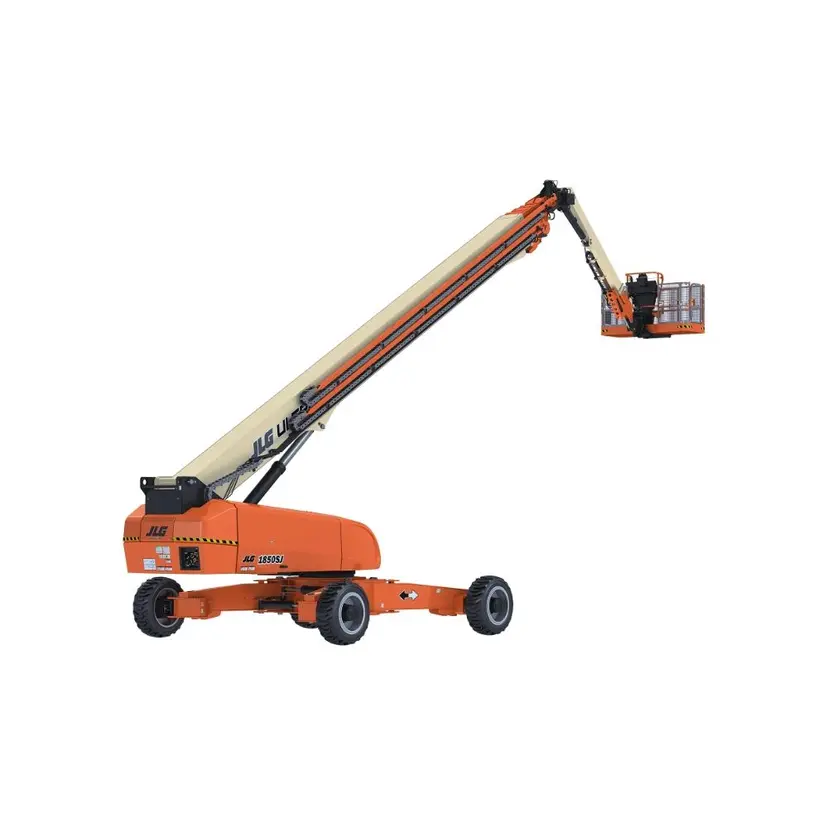

JLG 1850SJ Spec Sheet
Quick-reference specifications for the JLG 1850SJ. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Platform Capacity 1,000-lb /: 454-kg – Restricted
Platform Height 185-ft 7-in /: 56.56-m
Horizontal Outreach 80-ft /: 24.38-m
Platform Capacity (Restricted) 1,000-lb /: 454-kg
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Platform Height 185-ft 7-in / | 56.56-m |
|---|---|
| Horizontal Outreach 80-ft / | 24.38-m |
| Platform Capacity 1,000-lb / | 454-kg – Restricted |
| telescoping jib that provides | 2.9 |
| Swing | 360 Degrees Continuous |
| Platform Capacity (Restricted) 1,000-lb / | 454-kg |
| Platform Capacity (Unrestricted) 500-lb / | 227-kg |
| Jib Length (Retracted/Extended) 13-ft (3.96-m) / | 20-ft (6.1-m) |
| Jib Range of Articulation | 120 Degrees (+75, -45) |
| Gradeability | 40% |
| Tailswing 7-ft 7-in / | 2.32-m |
Dimensions
| Platform Width 36-in / | 91-cm |
|---|---|
| Platform Length 96-in / | 2.44-m |
| Machine Width – Axles Extended 16-ft 6-in / | 5-m |
| Machine Width – Axles Retracted 8-ft 2-in / | 2.49-m |
| Machine Height 10-ft / | 3.05-m |
| Machine Length – Stowed 47-ft 9.5-in / | 14.57-m |
| Machine Length – Overall 63-ft 10-in / | 19.45-m |
| Wheelbase 17-ft 1.5-in / | 5.22-m |
| Ground Clearance 13.5-in / | 34-cm – Axle |
Weights & Electrical
| weight to calibrate. | 1850SJ |
|---|---|
| Axles Retracted/Extended 23-ft 4-in (7.12-m) / 7-ft | 7-in (2.3-m) |
| Axles Retracted/Extended 31-ft 3-in (9.52-m) / 21-ft | 8-in (6.6-m) |
| and oversized footswitch. | 2. Includes battery blanket, hydraulic tank heater, block heater. |
Powertrain & Systems
| Drive Speed 2.8 mph / | 4.5 km/h |
|---|
Hydraulics & Capacities
| Platform Rotator | 173 Degrees Hydraulic |
|---|---|
| Max. Ground Bearing Pressure 119.6 psi / | 8.41 kg/cm² |
| Fuel Tank Capacity 45 gal / | 170 L |
| Capacity 75.1 gal / | 284.2 L |
