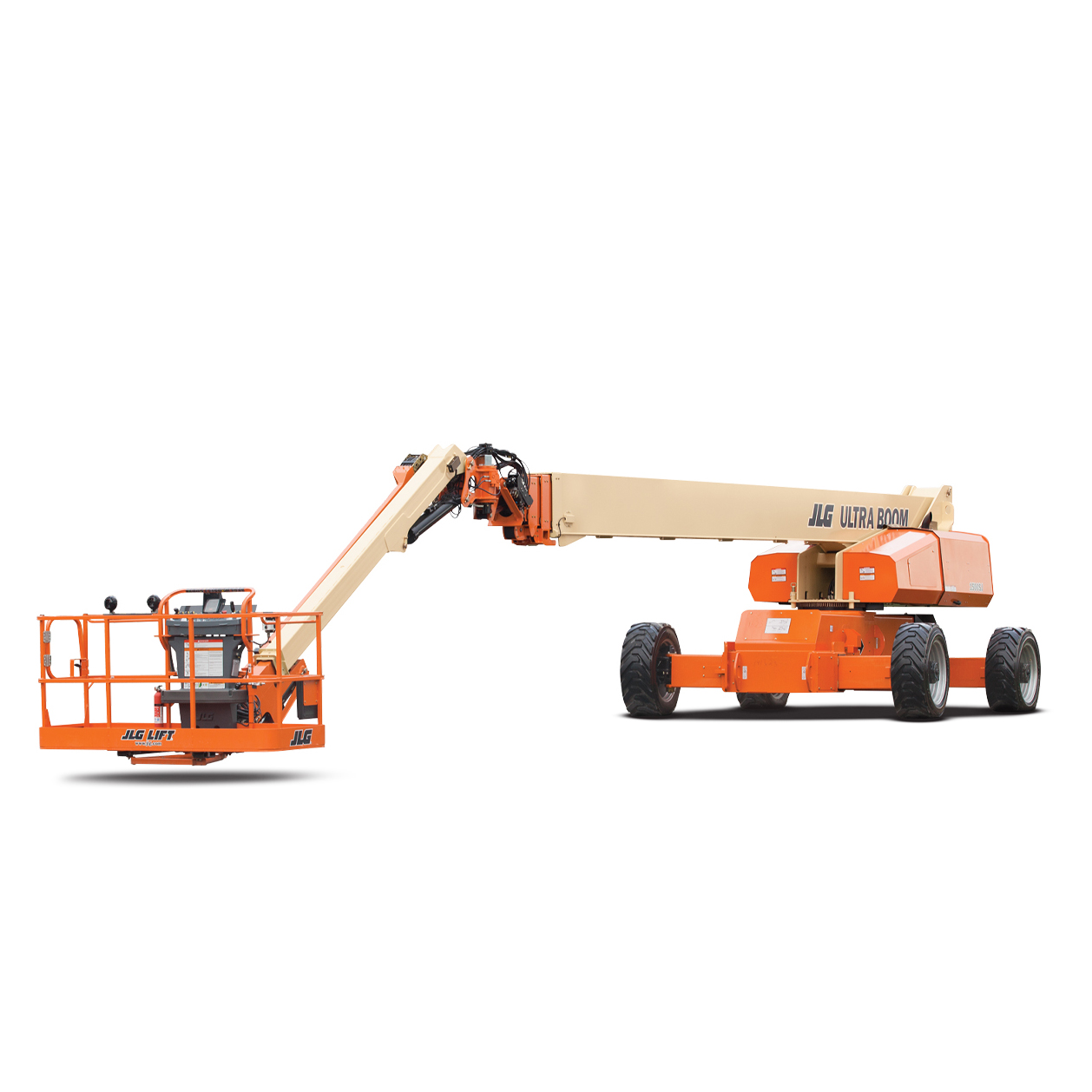

JLG 1500SJ Spec Sheet
Quick-reference specifications for the JLG 1500SJ. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Platform Capacity-Restricted: 450 kg
Platform Height: 45.75 m
Horizontal Outreach: 24.38 m
B. Overall Width Axles Retracted: 2.49 m
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Platform Height | 45.75 m |
|---|---|
| Horizontal Outreach | 24.38 m |
| Swing | 360° Continuous |
| Platform Capacity-Restricted | 450 kg |
| Platform Capacity-Unrestricted | 230 kg |
| Jib Length | 4.62–7.62 m |
| Jib Range of Articulation | 120° (+75, -45) |
| Gradeability | 40% |
| C. Tailswing | 1.67 m |
Dimensions
| A. Platform Size 0.91 x | 2.44 m |
|---|---|
| B. Overall Width Axles Retracted | 2.49 m |
| Overall Width Axles Extended | 3.81 m |
| D. Stowed Height | 3.05 m |
| Overall Length Jib Deployed | 18.82 m |
Weights & Electrical
| Axles Retracted | 4.4 m |
|---|---|
| Axles Retracted | 6.8 m |
| prior notification. This machine meets or exceeds AS/NZS 1418.10 | 2011 as originally |
| manufactured for intended applications. | 1500SJ |
Powertrain & Systems
| Drive Speed | 4.5 km/h |
|---|---|
| Axles Extended | 2.4 m |
| Axles Extended | 5.9 m |
| Axle | 30 cm |
Hydraulics & Capacities
| Platform Rotator | 180° Hydraulic |
|---|---|
| Fuel Tank Capacity | 200 L |
