Specs that keep your equipment moving.Vertical Mast · JLG

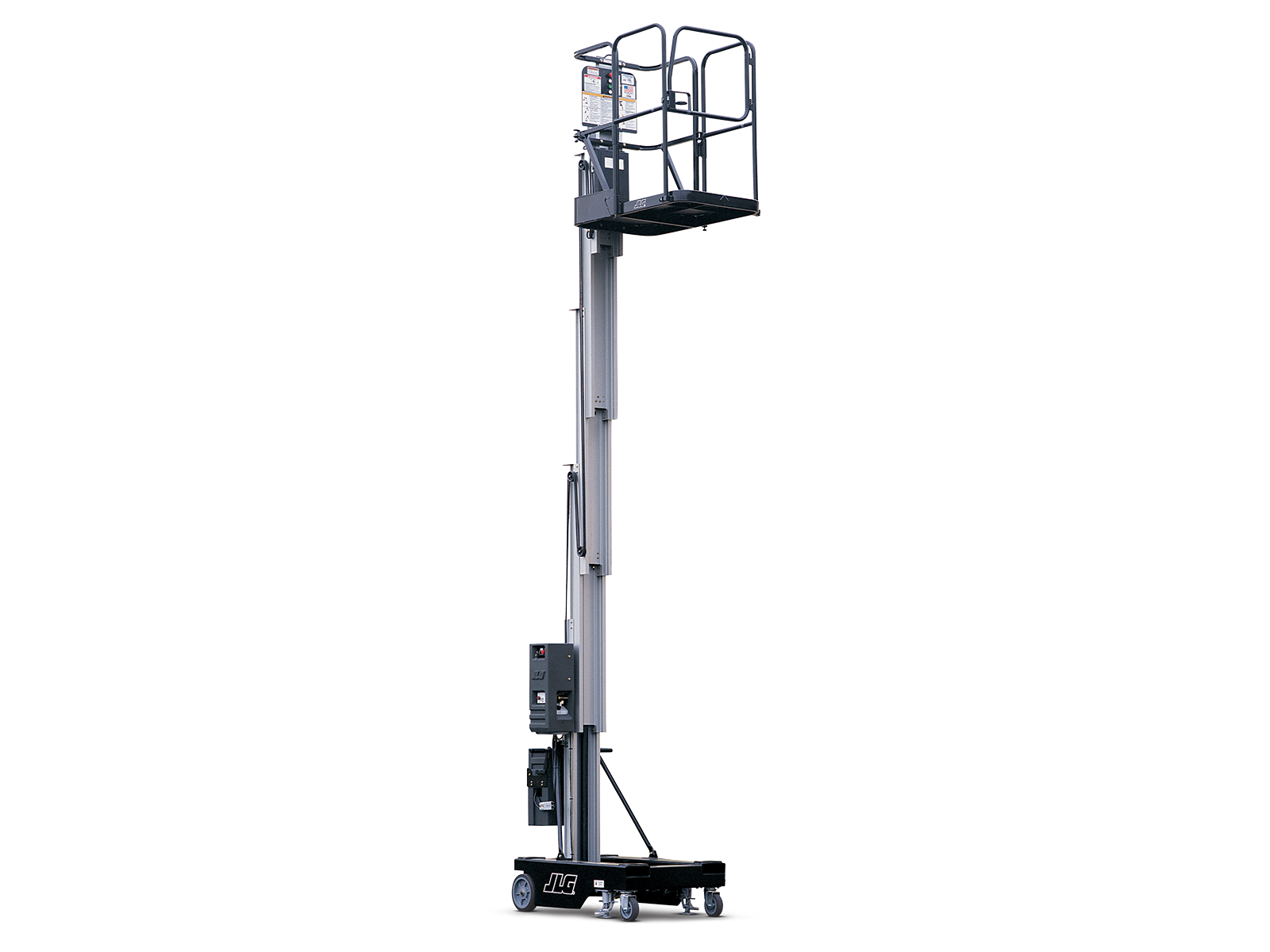

JLG 15SP Specs
Quick-reference specifications for the JLG 15SP vertical mast, taken from the manufacturer’s spec sheet.
- Platform Capacity
- 500 lb227 kg
- Platform Height
- 15 ft 2 in4.62 m
- Working Height
- 21 ft6.4 m
Performance 2 specs
| Working Height | 21 ft (6.4 m) |
|---|---|
| Platform Capacity | 500 lb (227 kg) |
Dimensions 7 specs
| Platform Height | 15 ft 2 in (4.62 m) |
|---|---|
| Max. Platform Height | 78 in |
| Platform Entry Height | 17.5 in (45 cm) |
| Platform Size W x L | 28 x 48 in (71 x 122 cm) |
| Overall Vehicle Length – Stowed-12SP | 72.5 in (184 cm) |
| Overall Vehicle Length – Stowed-15SP | 75.5 in (192 cm) |
| Overall Vehicle Width – Stowed | 34 in (86 cm) |
Weight 1 spec
| Gross Vehicle Weight | DC Model-12SP |
|---|
