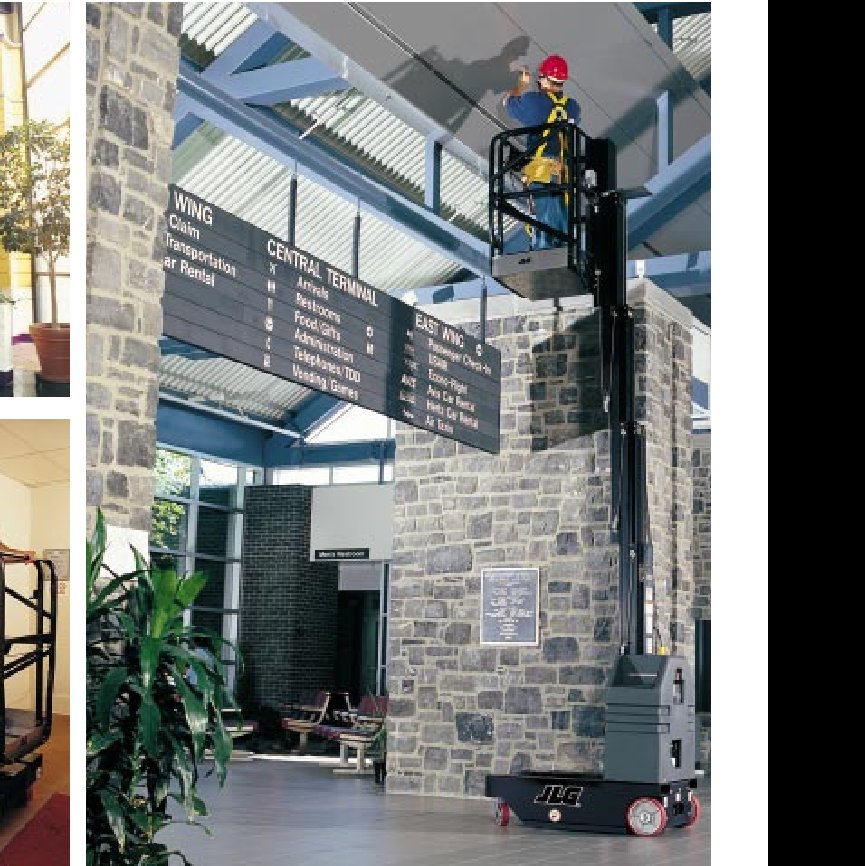

JLG 15VP Specs
Quick-reference specifications for the JLG 15VP vertical mast, taken from the manufacturer’s spec sheet.
- Platform Height
- 15 ft 0 in4.6 m
- Working Height
- 21 ft 0 in6.4 m
Performance 7 specs
| Working Height | 21 ft 0 in (6.4 m) |
|---|---|
| Optional Gull Wing Platform | 350 lb (160 kg) |
| Optional Narrow Platform | 350 lb (160 kg) |
| Optional Step-In Molded Platform | 350 lb (160 kg) |
| Optional Extension Platform | 49 x 26 in (1.24 x 0.66 m) |
| Drive Speed (Max) – Lowered | 2 mph (3.2 km/h) |
| Drive Speed (Max) – Elevated | 0.5 mph (0.8 km/h) |
Dimensions 6 specs
| Platform Height | 15 ft 0 in (4.6 m) |
|---|---|
| Drive Height | 15 ft 0 in (4.6 m) |
| Overall Length – Standard Platform | 52.5 in (1.33 m) |
| Overall Width | 32 in (0.81 m) |
| Platform Entry Height | 19 in (0.48 m) |
| Break Over Angle (Grade) | 15% |
Weight 2 specs
| Gross Weight – Fixed Size Platform | 1355 lb (619 kg) |
|---|---|
| Gross Weight – Step-In Molded Platform | 1370 lb (626 kg) |
