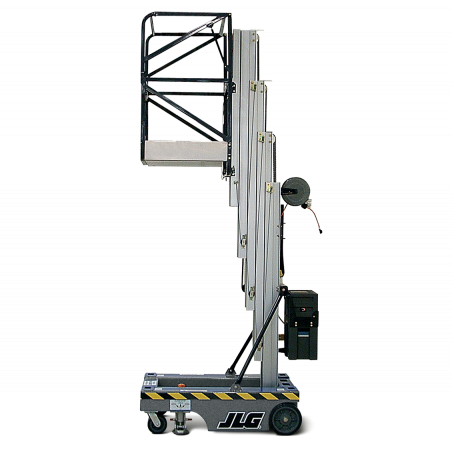

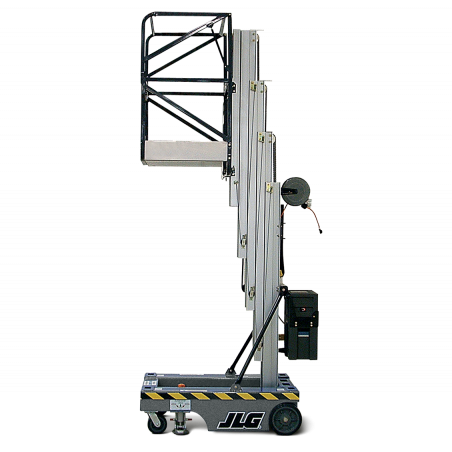

JLG 19AMI Specs

Quick-reference specifications for the JLG 19AMI vertical mast, compiled from published specifications.

Platform Capacity: 350 lb159 kg
Maximum Lift Height: 19 ft 4 in5.89 m
Platform Height: 19 ft 4 in5.89 m
Working Height: 25 ft7.62 m

Performance 3 specs

Maximum Lift Height	19 ft 4 in (5.89 m)
Working Height	25 ft (7.62 m)
Platform Capacity	350 lb (159 kg)

Dimensions 7 specs

Platform Height	19 ft 4 in (5.89 m)
Platform Dimension A (Length)	2 ft 2 in (0.66 m)
Platform Dimension B (Width)	2 ft 4 in (0.71 m)
Machine Height (Stowed)	6 ft 6 in (1.98 m)
Machine Length	4 ft 5 in (1.33 m)
Machine Width	2 ft 10 in (0.86 m)
Ground Entry Height	1 ft 7 in (0.48 m)

Weight 1 spec

Machine Weight (DC)	1,130 lb (512.56 kg)

Power / Engine 3 specs

System Voltage	12 Volts DC
Battery Charger Input	120/240 Volts AC – 50/60 Hz
Battery Charger Output	12 Volt – 10 Amps DC
