Rough Terrain Scissor · JLG

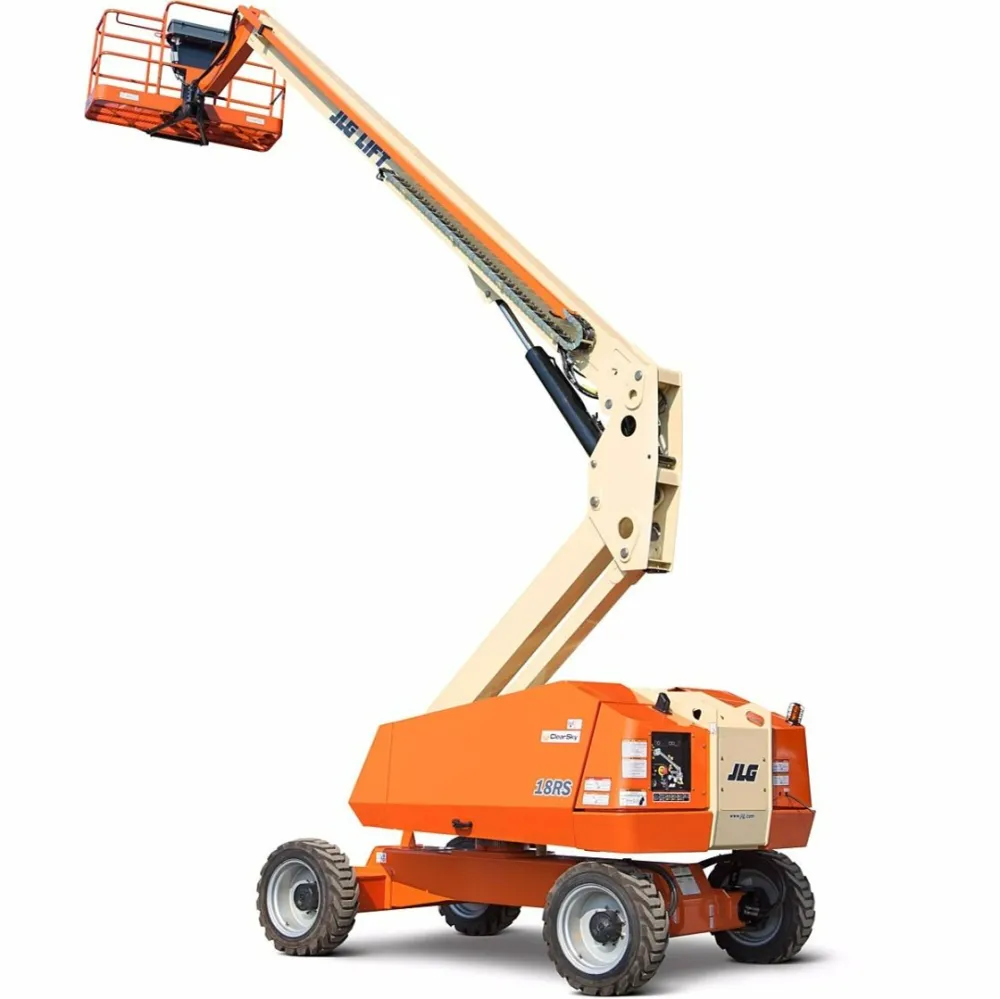

JLG 18RS Specs
Quick-reference specifications for the JLG 18RS boom lift, taken from the manufacturer’s spec sheet.
- Platform Capacity, Unrestricted
- 500 lb227 kg
- Platform Height
- 60 ft18.3 m
- Gradeability
- 45%
Performance 9 specs
| Horizontal Reach | 42 ft 10 in (13.1 m) |
|---|---|
| Swing | 355° Non-Continuous |
| Platform Capacity, Unrestricted | 500 lb (227 kg) |
| Platform Rotator | 145° |
| Drive Speed | 2.6 mph (4.2 kph) |
| Gradeability | 45% |
| Turning Radius (Inside) | 11 ft 6 in (3.5 m) |
| Turning Radius (Outside) | 21 ft 4 in (6.5 m) |
| Tail Swing | 4 ft (1.2 m) |
Dimensions 6 specs
| Platform Height | 60 ft (18.3 m) |
|---|---|
| Platform Size | 30 in x 89.5 in (.76 m x 2.27 m) |
| Stowed Length | 30 ft 10 in (9.4 m) |
| Ground Clearance | 9.5 in (24 cm) |
| Overall Width | 8 ft 2 in (2.49 m) |
| Stowed Height | 8 ft 3 in (2.51 m) |
Weight 2 specs
| Gross Vehicle Weight | 16,200 lb (7,348 kg) |
|---|---|
| Max Ground Bearing Pressure | 76 psi (5.34 kg/cm²) |
Power / Engine 2 specs
| Make and Model | Diesel Engine Deutz D2011 L03 |
|---|---|
| Power | 49 hp (36.4 kW) |
Hydraulics / Fluids 2 specs
| Fuel Tank Capacity | 22 gal (83.3 L) |
|---|---|
| Hydraulic Reservoir – Capacity | 36 gal (136.3 L) |
