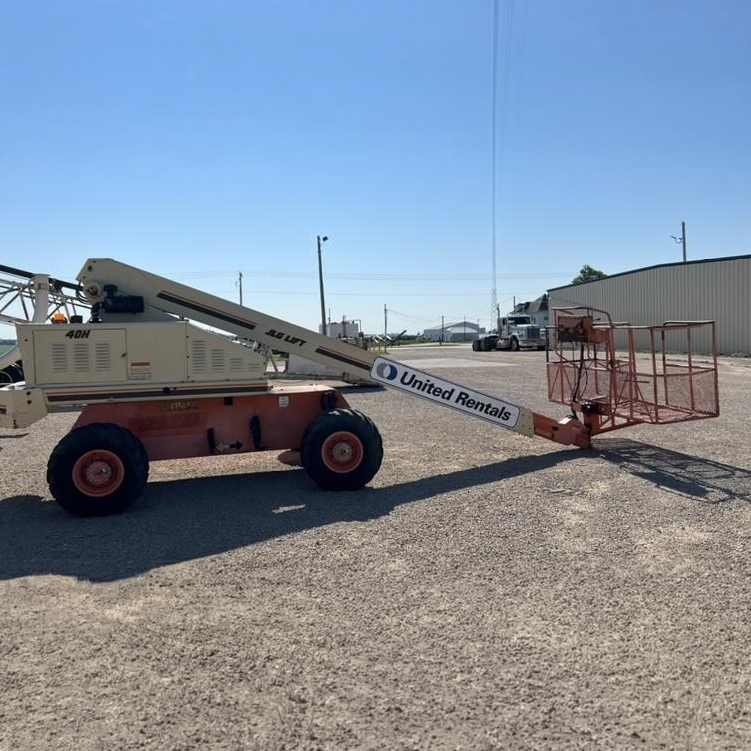

- JLG 40H
General Aerial Work Platform · JLG
JLG 40H Specs
Quick-reference specifications for the JLG 40H boom lift, compiled from published specifications.
- Max Working Height
- 4.6 ft1.40 m
Performance 6 specs
| Turning Radius (2WS/2WD) | 16 ft 6 in (5.1 m) |
|---|---|
| Turning Radius (2WS/4WD) | 16 ft 6 in (5.1 m) |
| Boom Speed Lift Down | 20–30 seconds |
| Telescope Speed Extend | 50–80 seconds |
| Telescope Speed Retract | 40–60 seconds |
| Swing Speed 360° | 61–92 seconds |
Dimensions 10 specs
| Overall Length | 301.97 in (7.67 m) |
|---|---|
| Overall Width | 7.91 ft (2.41 m) |
| Overall Height (Mast Lowered) | 7.85 ft (2.39 m) |
| Wheelbase | 7.68 ft (2.34 m) |
| Ground Clearance | 11.03 in (0.28 m) |
| Platform Inner Length | 36 in (0.91 m) |
| Platform Inner Width | 60 in (1.52 m) |
| Max Platform Height | 4.01 ft (1.22 m) |
| Max Horizontal Reach | 3.32 ft (1.01 m) |
| Max Working Height | 4.6 ft (1.40 m) |
Weight 1 spec
| Max Platform Weight Capacity | 1,000.9 lb (454 kg) |
|---|
Power / Engine 3 specs
| Gross Power | 42 hp (31.3 kW) @ 3000 rpm |
|---|---|
| Fuel Tank Capacity | 37 gal (140.2 L) |
| Cooling System Capacity | 16 quarts (15.14 L) |
Hydraulics / Fluids 2 specs
| Hydraulic Oil Tank | 37 U.S. gal (104.2 L) |
|---|---|
| Hydraulic System Total (including tank) | 70 U.S. gal (264.95 L) |
