General Aerial Work Platform · JLG

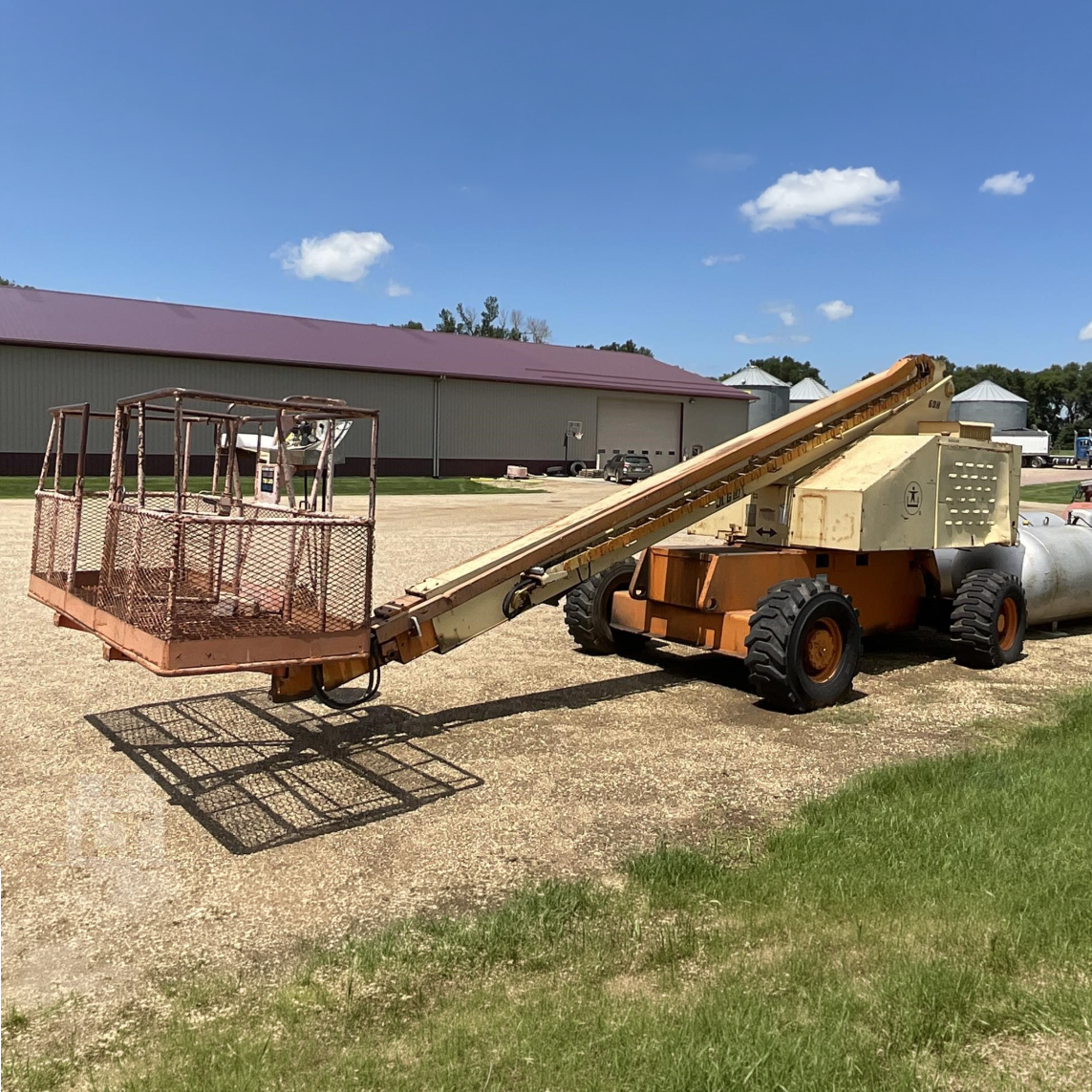

JLG 60H Specs
Quick-reference specifications for the JLG 60H boom lift, compiled from published specifications.
- Platform Capacity – Restricted
- 1000 lb454 kg
- Maximum Working Height
- 66 ft20.12 m
- Operating Weight
- 23000 lb10433 kg
Performance 5 specs
| Maximum Working Height | 66 ft (20.12 m) |
|---|---|
| Maximum Horizontal Reach | 50 ft (15.24 m) |
| Platform Capacity – Restricted | 1000 lb (454 kg) |
| Platform Capacity – Unrestricted | 500 lb (227 kg) |
| Swing | 360 degrees continuous |
Dimensions 4 specs
| Length | 25 ft 11 in (7.90 m) |
|---|---|
| Width | 8 ft 0 in (2.44 m) |
| Height | 9 ft 2 in (2.79 m) |
| Platform Size | 3 ft × 8 ft (0.91 m × 2.44 m) |
Weight 1 spec
| Operating Weight | 23000 lb (10433 kg) |
|---|
Power / Engine 2 specs
| Fuel Tank Capacity | 40 gal (151 L) |
|---|---|
| Hydraulic Reservoir | 32 gal (121 L) |
