Rough Terrain Scissor Lift · JLG

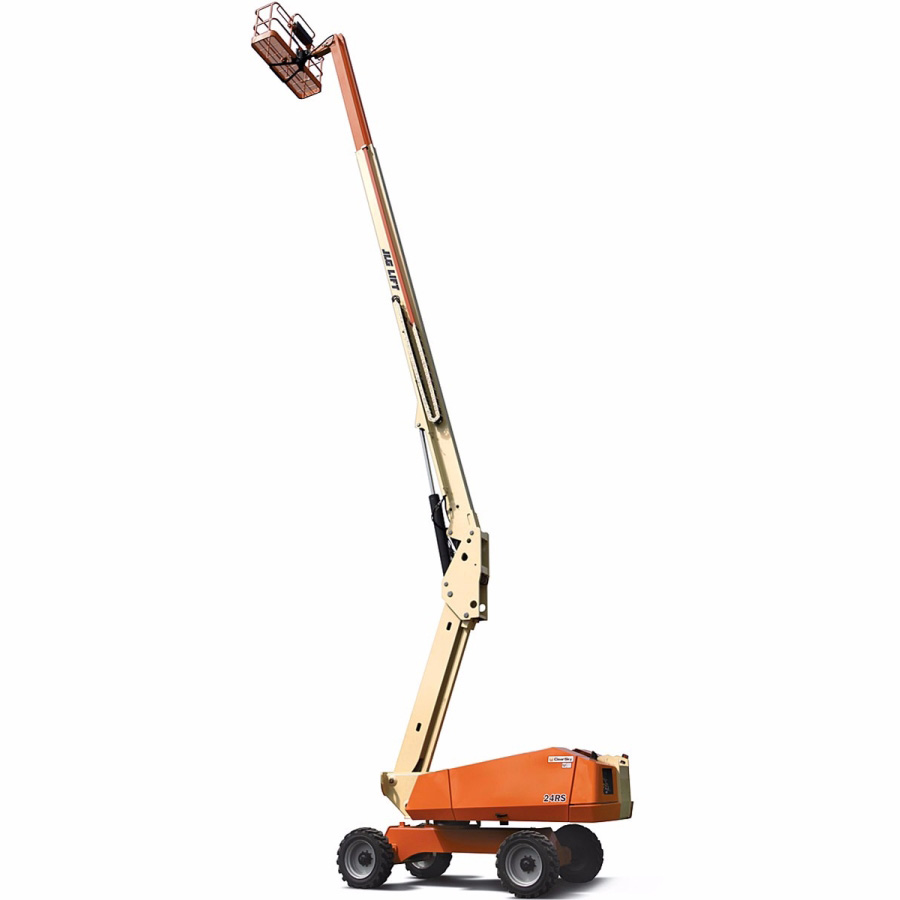

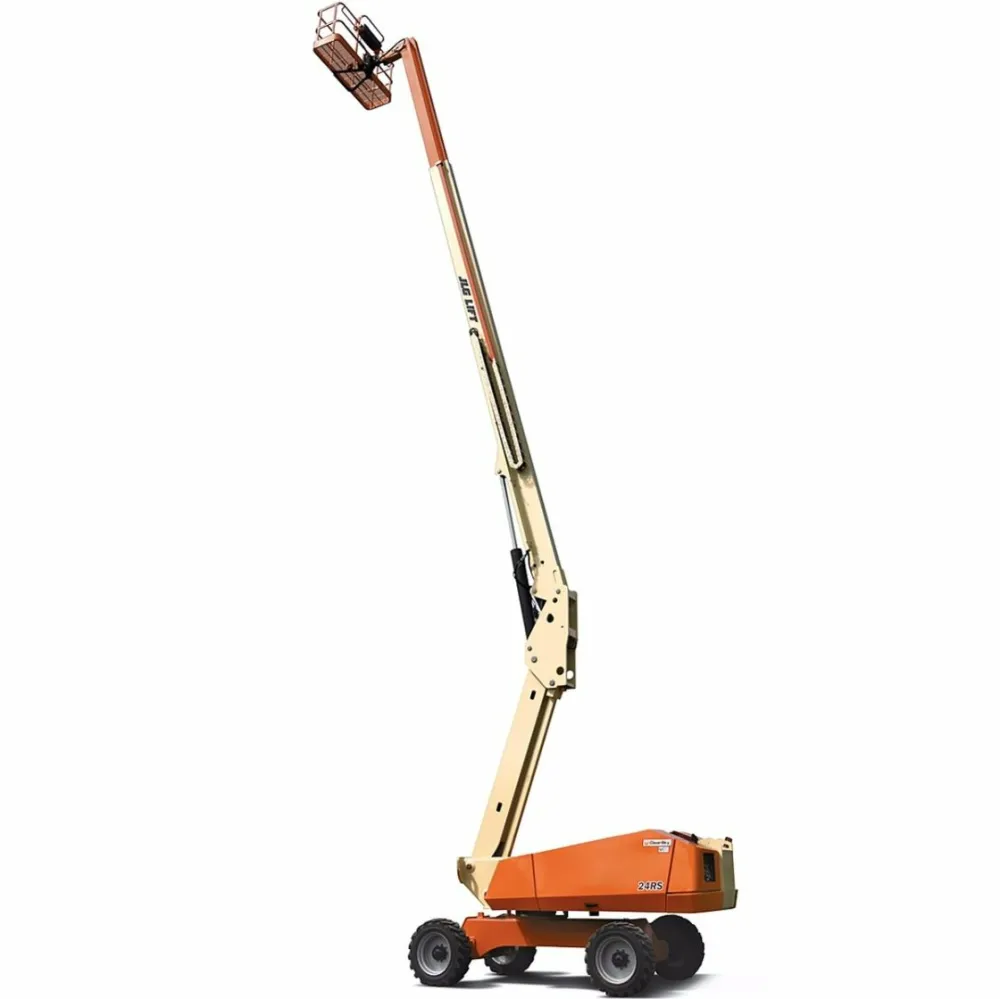

JLG 24RS Specs
Quick-reference specifications for the JLG 24RS boom lift, taken from the manufacturer’s spec sheet.
- Platform Capacity, Unrestricted
- 500 lb227 kg
- Platform Height
- 80 ft 4 in24.5 m
- Gradeability
- 45%
Performance 9 specs
| Horizontal Reach | 58 ft 5 in (17.8 m) |
|---|---|
| Swing | 355° Non-Continuous |
| Platform Capacity, Unrestricted | 500 lb (227 kg) |
| Platform Rotator | 145° |
| Drive Speed | 2.8 mph (4.5 kph) |
| Gradeability | 45% |
| Turning Radius (Inside) | 12 ft 11 in (3.9 m) |
| Turning Radius (Outside) | 22 ft 9 in (6.9 m) |
| Tail Swing | 6 ft 3 in (1.9 m) |
Dimensions 6 specs
| Platform Height | 80 ft 4 in (24.5 m) |
|---|---|
| Platform Size | 30 in x 89.5 in (.76 m x 2.27 m) |
| Stowed Length | 38 ft 10.5 in (11.85 m) |
| Ground Clearance | 11.2 in (28.5 cm) |
| Overall Width | 8 ft 2 in (2.49 m) |
| Stowed Height | 9 ft 7 in (2.76 m) |
Weight 2 specs
| Gross Vehicle Weight | 23,300 lb (10,568 kg) |
|---|---|
| Max Ground Bearing Pressure | 83 psi (5.83 kg/cm²) |
Power / Engine 2 specs
| Make and Model | Diesel Engine Deutz D2011 L040 |
|---|---|
| Power | 49 hp (36.4 kW) |
Hydraulics / Fluids 2 specs
| Fuel Tank Capacity | 22 gal (83.3 L) |
|---|---|
| Hydraulic Reservoir – Capacity | 36 gal (136.3 L) |
