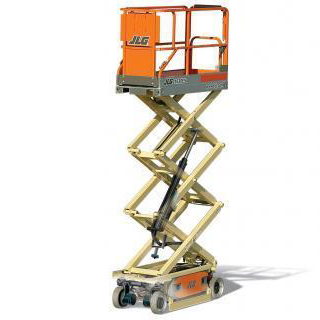

JLG 1932E Specs
Quick-reference specifications for the JLG 1932E scissor lift, compiled from published specifications.
- Platform Capacity
- 500 lb226.8 kg
- Maximum Working Height
- 25 ft7.62 m
Performance 3 specs
| Maximum Platform Height | 19 ft (5.79 m) |
|---|---|
| Platform Capacity | 500 lb (226.8 kg) |
| Maximum Hydraulic System Operating Pressure | 3200 PSI |
Dimensions 4 specs
| Machine Length | 6 ft 1 in (1.86 m) |
|---|---|
| Machine Width | 2 ft 9 in (0.84 m) |
| Machine Height (Stowed) | 6 ft 8 in (2.03 m) |
| Maximum Working Height | 25 ft (7.62 m) |
Weight 1 spec
| Machine Weight | 3500 lb (1588 kg) |
|---|
Power / Engine 2 specs
| Battery Voltage | 24 V DC |
|---|---|
| Battery Type | 4 x 6 V cells |
