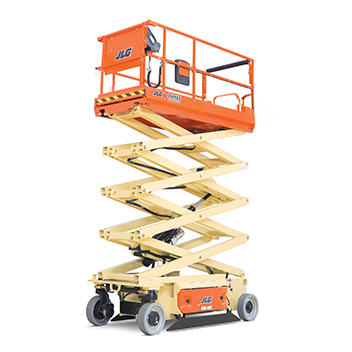

JLG 1932E2 Specs
Quick-reference specifications for the JLG 1932E2 scissor lift, compiled from published specifications.
- Platform Capacity
- 500 lb226.8 kg
- Platform Height (Elevated)
- 19 ft5.79 m
- Gradeability
- 25%
Performance 7 specs
| Platform Height (Elevated) | 19 ft (5.79 m) |
|---|---|
| Platform Capacity | 500 lb (226.8 kg) |
| Lift Time | 27-35 seconds |
| Lower Time | 28-35 seconds |
| Drive Speed (Stowed) | 2.5 mph |
| Drive Speed (Raised) | 0.5 mph |
| Gradeability | 25% |
Dimensions 4 specs
| Platform Size | 31 in × 64 in (0.79 m × 1.63 m) |
|---|---|
| Machine Width | 31.75 in (0.8 m) |
| Platform Extension | 3 ft (91 cm) |
| Ground Clearance | 2.75 in (7 cm) |
Weight 3 specs
| Machine Weight | 2,750 lb (1,247 kg) |
|---|---|
| Net Load Capacity | 230 kg |
| Maximum Tire Load | 492 kg |
Power / Engine 1 spec
| Battery Voltage | 24 V |
|---|
Hydraulics / Fluids 6 specs
| Lift Cylinder Bore | 3.00 in (7.6 cm) |
|---|---|
| Lift Cylinder Stroke | 32.00 in (81.2 cm) |
| Lift Cylinder Rod Diameter | 2.00 in (5.1 cm) |
| Lift Relief Pressure Maximum | 2300 psi (159 bar) |
| Steer Relief Pressure Maximum | 2100 psi (145 bar) |
| Main Relief Pressure Maximum | 221 bar |
