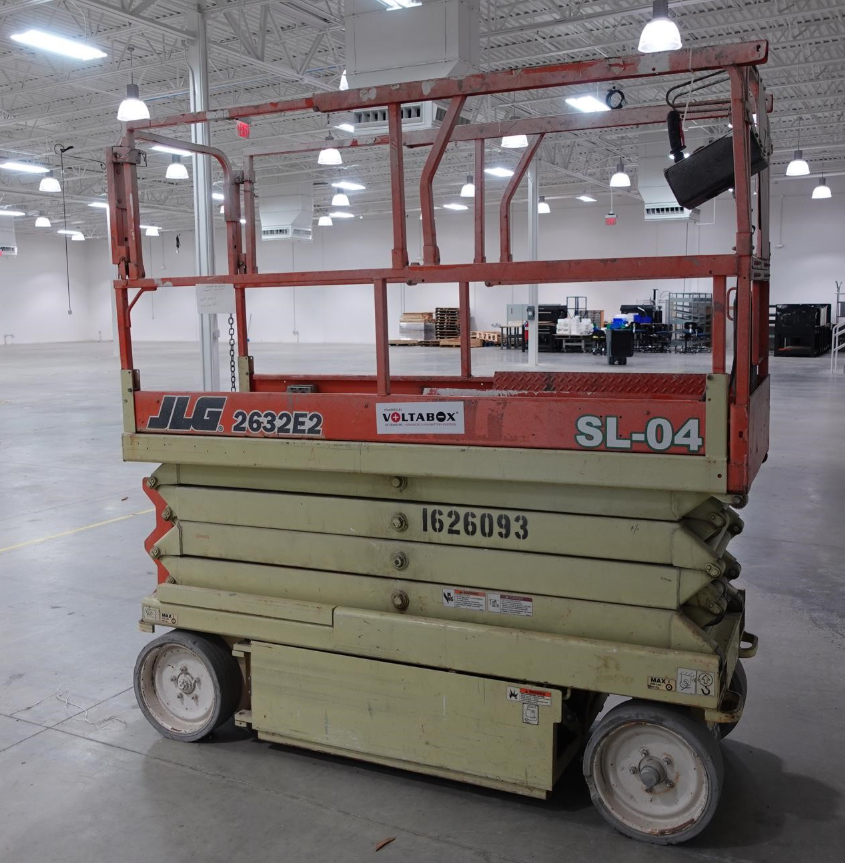

JLG 2632E2 Specs
Quick-reference specifications for the JLG 2632E2 scissor lift, compiled from published specifications.
- Platform Capacity
- 507 lb230 kg
- Platform Height – Elevated
- 26 ft7.92 m
- Platform Height – Stowed
- 3 ft 10 in1.17 m
- Operating Weight
- 5325 lb2415 kg
Performance 9 specs
| Platform Height – Elevated | 26 ft (7.92 m) |
|---|---|
| Platform Height – Stowed | 3 ft 10 in (1.17 m) |
| Gradeability | 25% |
| Lift Time (No Load) | 27 seconds |
| Lower Time (No Load) | 26 seconds |
| Platform Capacity | 507 lb (230 kg) |
| Platform Capacity – Extension | 265 lb (120 kg) |
| Turning Radius – Inside | 39.4 in (1 m) |
| Maximum Ground Bearing Pressure | 90 psi |
Dimensions 5 specs
| Platform Size | 31 in x 84 in (0.8 m x 2.1 m) |
|---|---|
| Machine Length | 7 ft 5.5 in (2.27 m) |
| Machine Width | 32 in (81 cm) |
| Machine Height – Stowed (Standard Handrails) | 6 ft 7.5 in (2.02 m) |
| Ground Clearance | 3 in (8 cm) |
Weight 1 spec
| Operating Weight | 5325 lb (2415 kg) |
|---|
Power / Engine 2 specs
| Drive System | 24 V DC Electric |
|---|---|
| Drive Motor Displacement | 19.0 in³ (310.3 cm³) |
